23.01.00 - Rear Differential Gearbox Control Tower

Lamborghini Diablo SV (1999) Rear Differential Gearbox Control Tower Parts Diagram

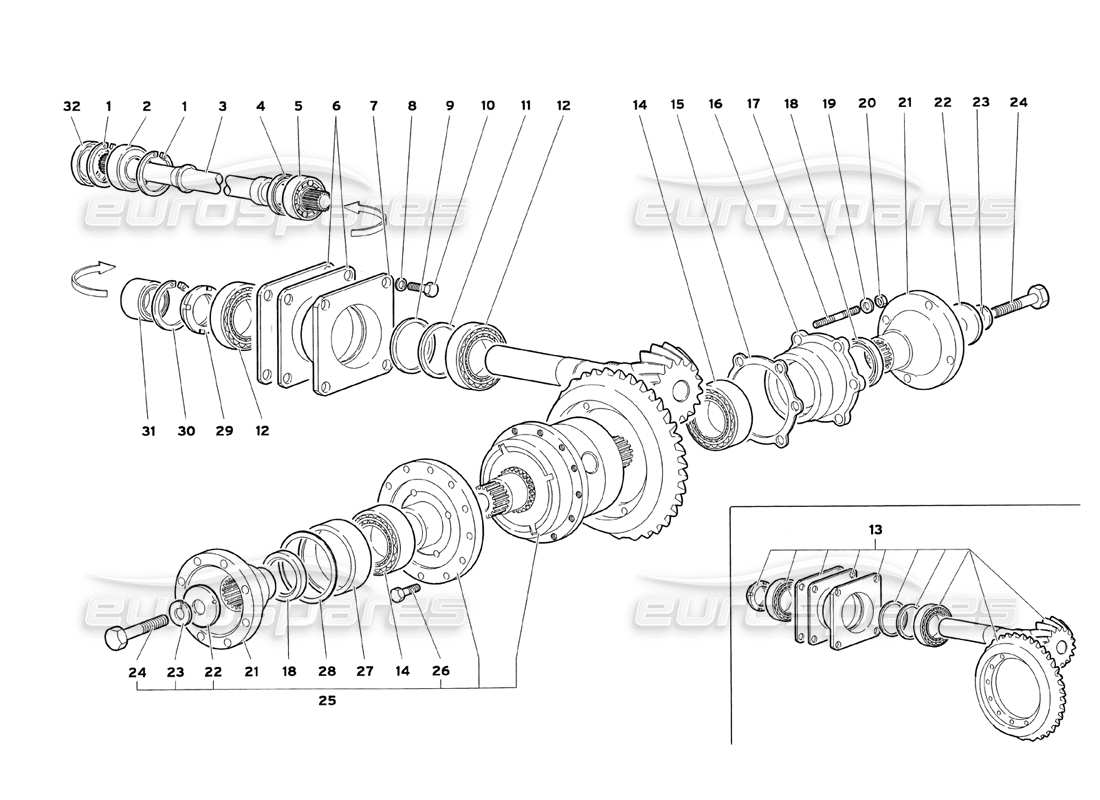

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 008575501
        RETAINER RING
        ANELLO RITEGNO
        from £0.90
        from £0.90
        # 002
        MPN: 410103520
        BEARING
        CUSCINETTO
        from £42.29
        from £42.29
        This part replaces part number 008503013
        # 003
        MPN: 002330969
        propeller shaft
        ALBERO TRASMISSIONE
        from £964.09
        from £964.09
        # 004
        MPN: 008613510
        SEAL
        ANELLO TENUTA
        from £29.15
        from £29.15
        This part replaces part number 008613508
        # 005
        MPN: 008503010
        BEARING
        CUSCINETTO
        from £13.72
        from £13.72
        # 006
        MPN: 002324939
        SHIM
        SPESSORE Dl REGISTRO
        Supersession
        Supersession
        # 007
        MPN: 002324938
        FLANGE
        FLANGIA
        from £453.94
        from £453.94
        # 008
        MPN: 008410822
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        # 009
        MPN: 002330693
        SHIM
        SPESSORE Dl REGISTRO 0,5 MM
        from £15.47
        from £15.47
        # 009
        MPN: 002330694
        SHIM
        SPESSORE Dl REGISTRO 0,3 MM
        from £23.00
        from £23.00
        # 009
        MPN: 002330695
        SHIM
        SPESSORE Dl REGISTRO 0,25 MM
        from £23.00
        from £23.00
        # 009
        MPN: 002330696
        SHIM
        SPESSORE Dl REGISTRO 0,2 MM
        from £23.00
        from £23.00
        # 009
        MPN: 002330697
        SHIM
        SPESSORE Dl REGISTRO 0,15 MM
        from £15.47
        from £15.47
        # 010
        MPN: 008100821
        SCREW
        VITE
        Supersession
        Supersession
        # 011
        MPN: 002328764
        SPACER
        DISTANZIALE
        from £39.14
        from £39.14
        # 012
        MPN: 008545004
        BEARING
        CUSCINETTO
        from £87.32
        from £87.32
        # 013
        MPN: 002337199
        BEVEL SET 17/43
        from £2,619.99
        from £2,619.99
        This part replaces part number 002335310
        # 014
        MPN: 008545002
        BEARING
        CUSCINETTO
        from £289.36
        from £289.36
        # 015
        MPN: 002324942
        SHIM
        SPESSORE Dl REGISTRO
        Supersession
        Supersession
        # 016
        MPN: 002324452
        FLANGE
        FLANGIA PORTACUSCINETTO
        from £160.02
        from £160.02
        # 017
        MPN: 008301022
        STUD
        PRIGIONIERO
        from £7.55
        from £7.55
        # 018
        MPN: 008614507
        SEAL
        ANELLO TENUTA
        from £31.31
        from £31.31
        This part replaces part number 008614509
        # 019
        MPN: WHT000768
        WASHER
        from £1.24
        from £1.24
        This part replaces part number 008410806 - and 1 more. Click to view details
        # 020
        MPN: N10155210
        NUT
        DADO
        from £1.28
        from £1.28
        This part replaces part number 008201001
        # 021
        MPN: 002333623
        FLANGE
        FLANGIA PORTA SEMIASSE
        from £229.67
        from £229.67
        # 022
        MPN: 002332653
        WASHER
        RONDELLA
        from £69.01
        from £69.01
        # 023
        MPN: 002332652
        WASHER
        RONDELLA
        from £6.10
        from £6.10
        # 024
        MPN: 002332651
        SCREW
        VITE
        from £14.09
        from £14.09
        # 025
        MPN: 002332210
        KIT DIFFERENTIAL
        KIT DIFFERENZIALE
        Supersession
        Supersession
        # 026
        MPN: 002332650
        SCREW
        VITE
        from £17.17
        from £17.17
        # 027
        MPN: 002324940
        BEARING CASE
        ANELLO PORTACUSCINETTO
        from £150.88
        from £150.88
        # 028
        MPN: 002331917
        SHIM
        SPESSORE Dl REGISTRO 0,5 MM
        from £16.14
        from £16.14
        # 028
        MPN: 002331918
        SHIM
        SPESSORE Dl REGISTRO 0,3 MM
        from £15.47
        from £15.47
        # 028
        MPN: 002331919
        SHIM
        SPESSORE Dl REGISTRO 0,25 MM
        from £15.47
        from £15.47
        # 028
        MPN: 002331920
        SHIM
        SPESSORE Dl REGISTRO 0,2 MM
        from £15.47
        from £15.47
        # 028
        MPN: 002331921
        SHIM
        SPESSORE Dl REGISTRO 0,15 MM
        from £15.47
        from £15.47
        # 029
        MPN: 008254503
        PLUG
        GHIERA
        from £109.38
        from £109.38
        # 030
        MPN: 008575002
        RETAINER RING
        ANELLO RITEGNO
        from £3.48
        from £3.48
        # 031
        MPN: 008524014
        BEARING
        CUSCINETTO
        from £128.52
        from £128.52
        # 032
        MPN: 086311819
        SEAL
        from £33.12
        from £33.12
        This part replaces part number 008613601
