lamborghini diablo sv (1998) passenger compartment trims (valid for gb - november 1998) parts diagram

74.78.01.00 - Passenger Compartment Trims (Valid for GB - November 1998)

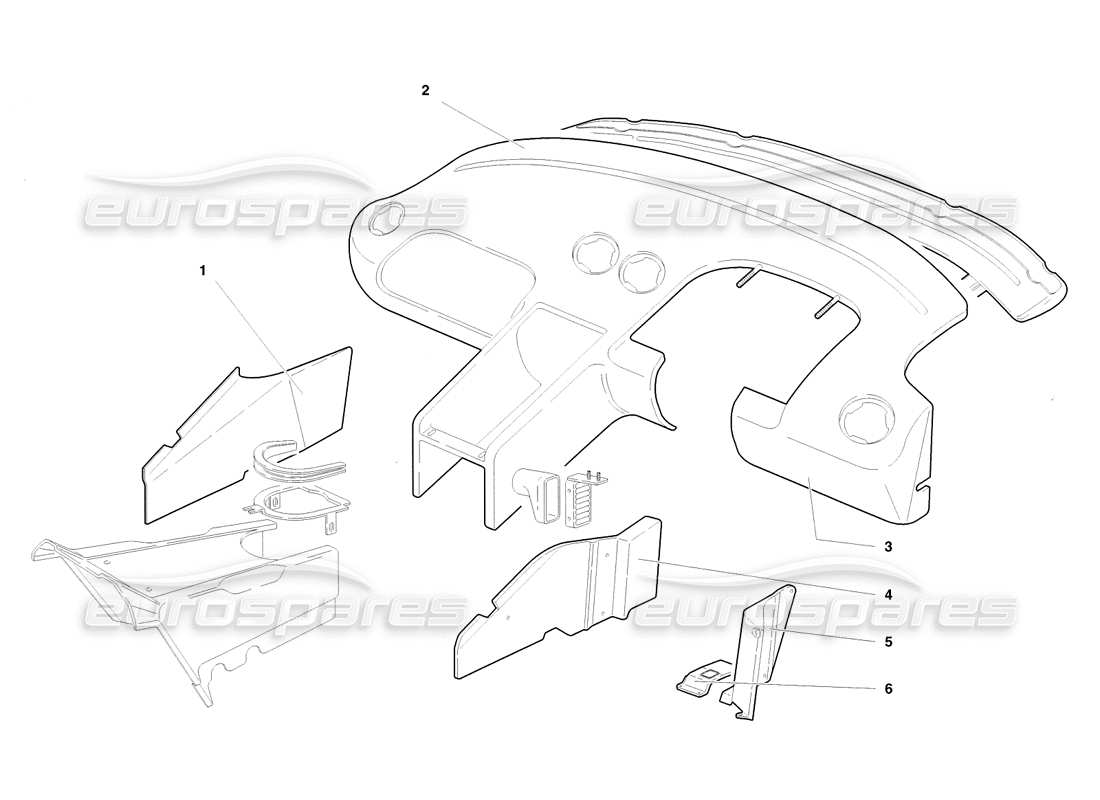

Lamborghini Diablo SV (1998) Passenger Compartment Trims (Valid for GB - November 1998) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009414330
LEFT SIDE PANEL
(Valid for GB - November 1998) FIANCHETTO SX
from £67.83
from £67.83
# 002
MPN: 009414152
DASHBOARD PANEL
(Valid for GB - November 1998) CRUSCOTTO
from £674.90
from £674.90
# 003
MPN: 009414033
CONVEYOR
(Valid for GB - November 1998) CONVOGLIATORE
from £772.73
from £772.73
# 004
MPN: 009958414
RIGHT SIDE PANEL
(Valid for GB - November 1998) FIANCHETTO DX
from £117.74
from £117.74
# 005
MPN: 009458354
PANEL
(Valid for GB - November 1998) PANNELLO
from £134.32
from £134.32
# 006
MPN: 009458365
CASE
(Valid for GB - November 1998) SCATOLA
from £155.06
from £155.06
