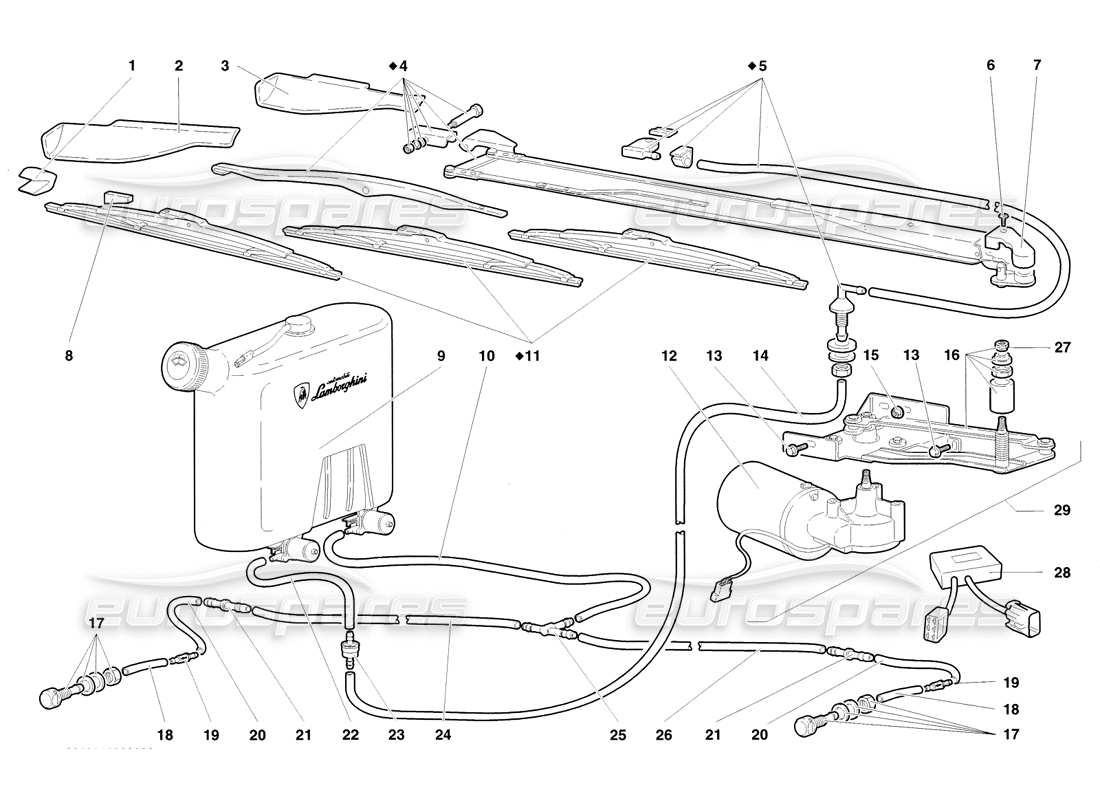

71.01.00 - Windscreen Wiper and Headlamp Washers

Lamborghini Diablo SV (1998) Windscreen Wiper and Headlamp Washers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 000
    MPN: AA0000066
    WIND SCREENWIPER
    (Applies to parts marked - ?) KIT TERGICRISTALLO
    from £464.13
    from £464.13
    # 001
    MPN: 009420129
    RUBBER BUMPER
    PARACOLPI GOMMA
    from £21.77
    from £21.77
    # 002
    MPN: 009420128
    FIN
    ALETTA ESTERNA
    from £1,266.71
    from £1,266.71
    # 003
    MPN: 009420127
    FIN
    ALETTA INTERNA
    from £677.02
    from £677.02
    # 004
    MPN: 009420125
    WIPER ARM
    BRACCIO TERGITORE
    # 005
    MPN: 418955215
    WINDSCREEN WASH.
    LAVAPARABREZZA
    from £82.75
    from £82.75
    # 006
    MPN: WHT003302
    SCREW
    from £1.27
    from £1.27
    # 007
    MPN: 009420137
    SHIELD
    PROTEZIONE
    Supersession
    Supersession
    # 008
    MPN: 009420136
    RUBBER
    GOMMA
    from £64.43
    from £64.43
    # 009
    MPN: 009420219
    WATER RESERVOIR
    WINDSHIELD WASHER TANK
    from £517.37
    from £517.37
    # 010
    MPN: 009420230
    PIPE
    Tubo
    # 011
    MPN: 009420126
    WIPER BRUSH
    SPAZZOLATERGI
    from £19.70
    from £19.70
    # 012
    MPN: 009420112
    wiper motor
    MOTORING TERGI
    from £378.90
    from £378.90
    # 014
    MPN: 009420211
    PIPE
    Tubo
    from £4.25
    from £4.25
    # 015
    MPN: 008200614
    NUT
    DADO
    Supersession
    Supersession
    # 016
    MPN: 009920100
    LEVER ASSY
    MECCANISMO TERGI
    from £327.70
    from £327.70
    # 017
    MPN: 400955985
    HEADLAMP WAS. JET
    UGELLO LAVAFARO
    from £3.50
    from £3.50
    This part replaces part number 009420207
    # 018
    MPN: 009420228
    PIPE
    Tubo
    # 019
    MPN: 009420227
    VALVE
    VALVOLA
    from £2.99
    from £2.99
    This part replaces part number 009420217 which we have in stock
    # 020
    MPN: 009420229
    PIPE
    Tubo
    # 021
    MPN: 009420208
    CONNECTION
    JOINT 2 VIA
    from £1.05
    from £1.05
    # 022
    MPN: 009420201
    PIPE
    Tubo
    from £8.46
    from £8.46
    # 023
    MPN: 009420210
    VALVE
    VALVOLA
    from £3.60
    from £3.60
    # 024
    MPN: 009420213
    PIPE
    Tubo
    from £3.94
    from £3.94
    # 025
    MPN: 009420209
    CONNECTION
    JOINT 3 VIA
    from £1.70
    from £1.70
    # 026
    MPN: 009420214
    PIPE
    Tubo
    from £12.03
    from £12.03
    # 028
    MPN: 006138108
    INTERMITTENCE
    INTERMITTENCE
    from £502.44
    from £502.44
    # 029
    MPN: 009920002
    WIPER GEAR MOTOR
    MOTORIDUTTORE TERGI COMPL.
    from £525.65
    from £525.65
    This part replaces part number 600992002
