62.01.00 - fuel system

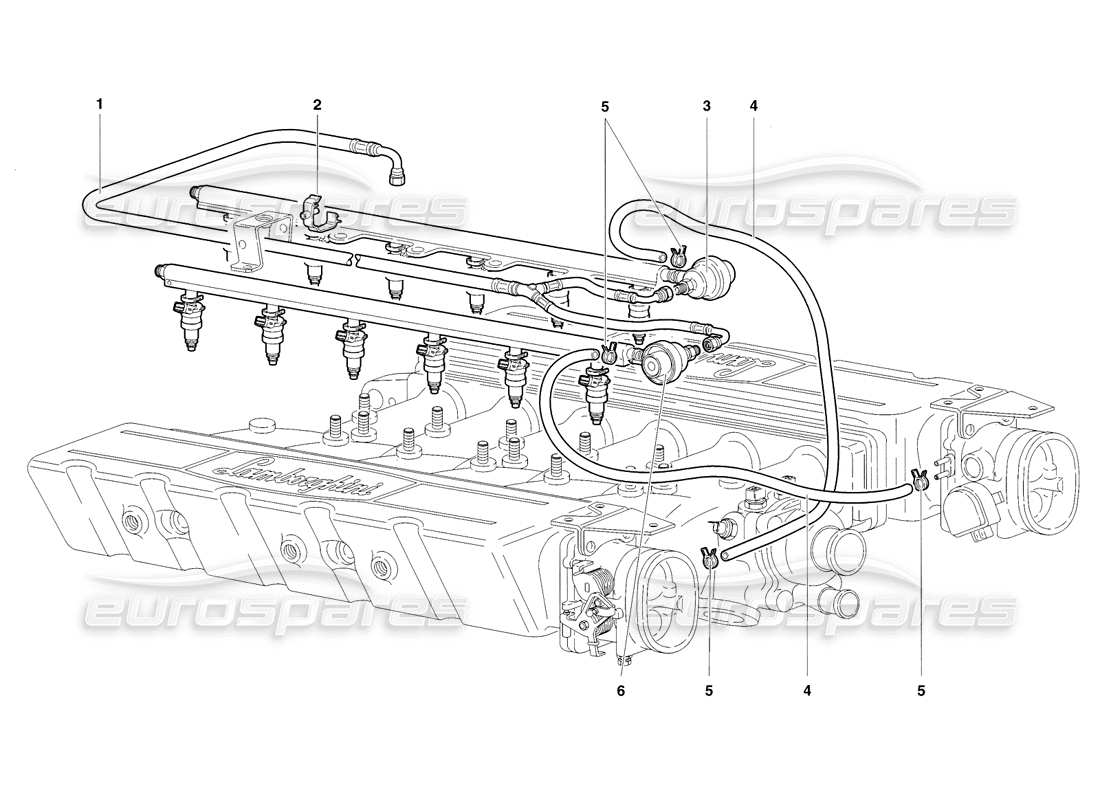

Lamborghini Diablo SV (1998) Fuel System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0062001155
PIPE
Tubo
from £701.23
from £701.23
# 002
MPN: 006134202
STRAP
FASCETTA
from £5.41
from £5.41
# 003
MPN: 0020001114
DELIVERY PIPE
TUBO COMPLETO SX
from £4,258.37
from £4,258.37
# 004
MPN: 0013001673
PIPE
Tubo
from £20.97
from £20.97
# 005
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 006
MPN: 0020001115
DELIVERY PIPE
TUBO COMPLETO DX
from £4,258.37
from £4,258.37
