41.01.00 - Frame Elements

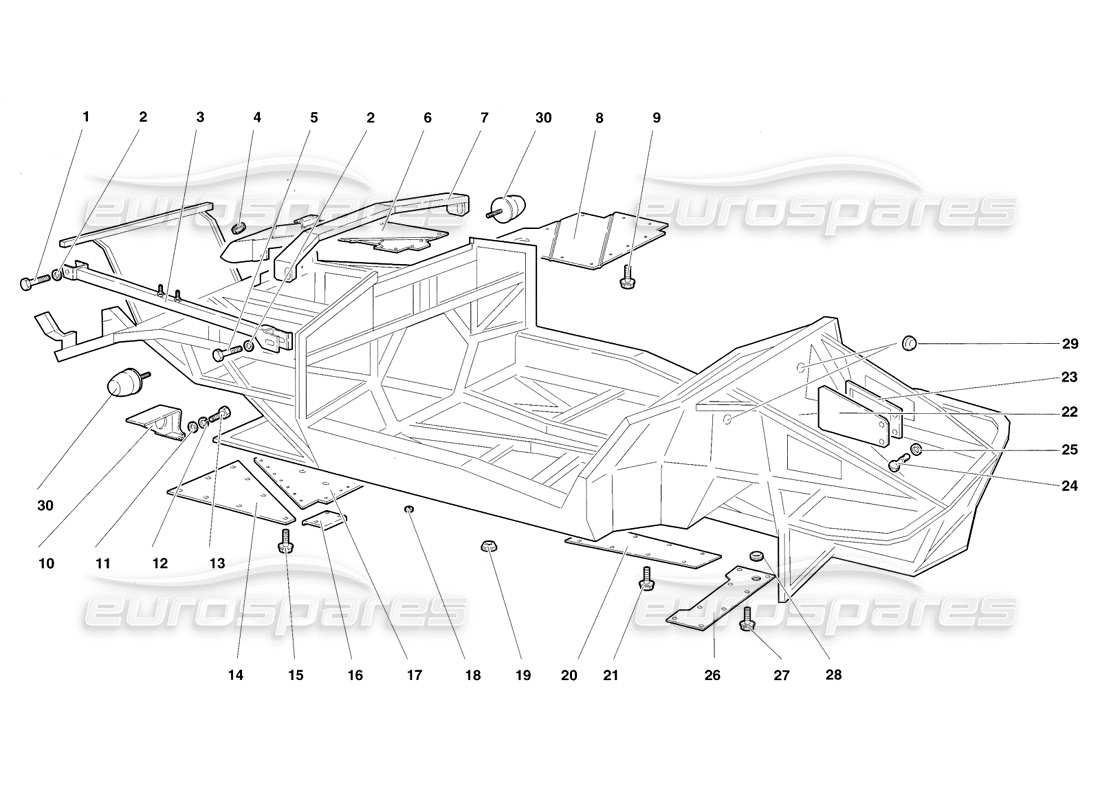

Lamborghini Diablo SV (1998) Frame Elements Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008100854
SCREW
VITE
Supersession
Supersession
# 002
MPN: 008410819
WASHER
RONDELLA
from £1.42
from £1.42
# 003
MPN: 004133595
LEFT CROSSRAIL
TRAVERSA SX
from £259.52
from £259.52
# 003
MPN: 004133596
RIGHT CROSSRAIL
TRAVERSA DX
from £259.52
from £259.52
# 004
MPN: 008611606
RUBBER RING
ANELLO GOMMA
from £1.18
from £1.18
# 005
MPN: 008700846
SCREW
VITE
from £1.37
from £1.37
# 006
MPN: 009411522
RIGTH SUPPORT
SUPPORTO DX
from £391.35
from £391.35
# 006
MPN: 009411523
LEFT SUPPORT
SUPPORTO SX
from £391.35
from £391.35
# 007
MPN: 004131512
CROSSRAIL
TRAVERSA
from £210.00
from £210.00
# 008
MPN: 004135417
PANEL
PANNELLO
from £358.18
from £358.18
# 009
MPN: N10718801
SCREW
VITE
from £0.61
from £0.61
# 010
MPN: 004137167
SUPPORT
SUPPORTO SERBATOIO BENZINA
# 011
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 012
MPN: 008410819
WASHER
RONDELLA
from £1.50
from £1.50
# 013
MPN: 008100812
SCREW
VITE
from £0.53
from £0.53
# 014
MPN: 004135426
PANEL
PANNELLO
from £55.34
from £55.34
# 015
MPN: N10718801
SCREW
VITE
from £0.61
from £0.61
# 016
MPN: 004133887
REINFORCEMENT
RINFORZO
from £18.42
from £18.42
# 017
MPN: 004135423
PANEL
PANNELLO
from £157.54
from £157.54
# 018
MPN: 004134333
PLUG
TAPPO
from £0.53
from £0.53
# 020
MPN: 004130445
PANEL
PANNELLO
from £194.13
from £194.13
# 021
MPN: N10718801
SCREW
VITE
from £0.61
from £0.61
# 022
MPN: 004130206
RIGTH PANEL
PANNELLO ISPEZIONE ALZAFARI DX
from £55.34
from £55.34
# 022
MPN: 004130207
LEFT PANEL
PANNELLO ISPEZIONE ALZAFARI SX
from £55.34
from £55.34
# 023
MPN: 009490205
LEFT GASKET
GUARNIZIONE SX
# 023
MPN: 410805349
RIGTH GASKET
GUARNIZIONE DX
from £13.84
from £13.84
# 024
MPN: 004131085
PIN
PERNO AGGANCIO RAPIDO
Supersession
Supersession
# 026
MPN: 004132986
PANEL
PANNELLO
# 027
MPN: N10718801
SCREW
VITE
from £0.61
from £0.61
# 028
MPN: 008612503
RUBBER RING
ANELLO GOMMA
from £8.84
from £8.84
# 029
MPN: 008931407
PLUG
TAPPO
from £0.83
from £0.83
# 030
MPN: 004137362
RUBBER PAD
(Valid for USA - November 1998) TAMPONE GOMMA
from £466.80
from £466.80
# 030
MPN: 004137362
RUBBER PAD
(Valid for CANADA - November 1998) TAMPONE GOMMA
from £466.80
from £466.80
