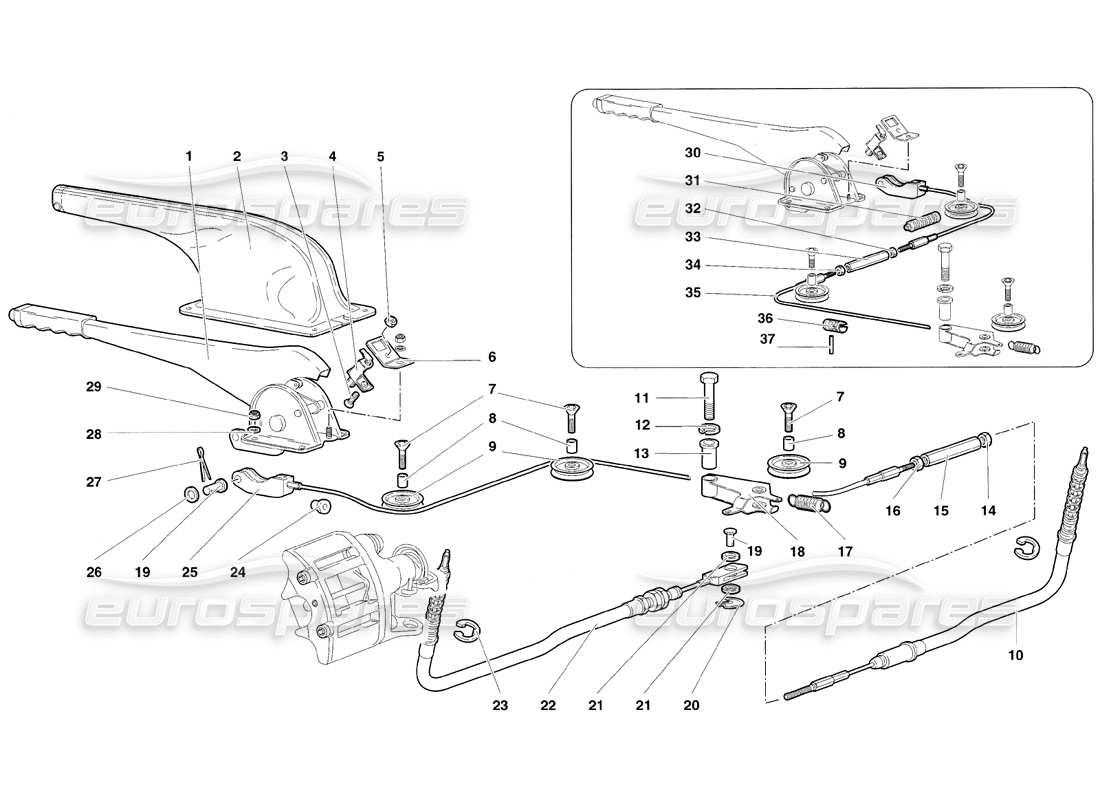

33.01.00 - Handbrake

Lamborghini Diablo SV (1998) Handbrake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 0033000780
        Handbrake Lever
        Leva freno a mano
        Supersession
        Supersession
        # 002
        MPN: 0078001360
        COVERING
        RIVESTIMENTO
        from £101.99
        from £101.99
        # 003
        MPN: WHT002756
        SCREW
        # 004
        MPN: 003336007
        button
        PULSANTE
        from £18.12
        from £18.12
        # 005
        MPN: WHT002959
        NUT
        DADO
        from £0.57
        from £0.57
        # 006
        MPN: 003335993
        SUPPORT
        SUPPORTO
        # 007
        MPN: 008700851
        SCREW
        VITE
        from £0.53
        from £0.53
        # 008
        MPN: 003330827
        BUSHING
        BOCCOLA
        # 009
        MPN: 003332512
        PULLEY
        CARRUCOLA
        Supersession
        Supersession
        # 010
        MPN: 0033001133
        RIGHT CABLE
        from £124.51
        from £124.51
        # 011
        MPN: 008101407
        SCREW
        VITE
        from £3.32
        from £3.32
        # 012
        MPN: 008411404
        WASHER
        RONDELLA
        from £0.54
        from £0.54
        # 013
        MPN: 003330828
        SPACER
        DISTANZIALE
        # 014
        MPN: 008200607
        NUT
        DADO
        from £8.05
        from £8.05
        # 015
        MPN: 413609206
        ADJUSTING SLEEVE
        (Valid for RH D. version – April 1994) REGISTRO
        from £39.87
        from £39.87
        # 016
        MPN: N01100632
        NUT
        DADO
        from £2.81
        from £2.81
        # 017
        MPN: 003330829
        SPRING
        MOLLA
        # 018
        MPN: 003333935
        SUPPORT
        SUPPORTO
        from £126.00
        from £126.00
        # 019
        MPN: 410609789
        PIN
        PERNO
        from £18.55
        from £18.55
        This part replaces part number 003301307 which we have in stock
        # 020
        MPN: 004207085
        CLIP
        FERMAGLIO
        from £48.26
        from £48.26
        # 021
        MPN: 008400806
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 022
        MPN: 0033001131
        LEFT CABLE
        from £161.69
        from £161.69
        # 023
        MPN: WHT003586
        RETAINER RING
        ANELLO RITEGNO
        from £0.53
        from £0.53
        # 024
        MPN: 003330880
        RUBBER BUSHING
        BOCCOLA GOMMA
        # 025
        MPN: 0033001129
        TIE ROD
        TIRANTE
        from £218.76
        from £218.76
        # 026
        MPN: 008400806
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 027
        MPN: 008820201
        SPLIT PIN
        COPIGLIA
        from £4.11
        from £4.11
        # 028
        MPN: 008400606
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 029
        MPN: 008200606
        NUT
        DADO
        Supersession
        Supersession
        # 030
        MPN: 0033001472
        TIE ROD
        (Valid for GB - November 1998) TIRANTE
        from £201.90
        from £201.90
        # 031
        MPN: 003332748
        SHIELD
        (Valid for GB - November 1998) PROTEZIONE
        from £2.00
        from £2.00
        # 032
        MPN: 008200607
        NUT
        (Valid for GB - November 1998) DADO
        from £8.05
        from £8.05
        # 033
        MPN: 413609206
        ADJUSTING SLEEVE
        (Valid for RH D. version – April 1994) REGISTRO
        from £39.87
        from £39.87
        # 034
        MPN: N01100632
        NUT
        (Valid for GB - November 1998) DADO
        from £2.81
        from £2.81
        # 035
        MPN: 003332749
        CABLE
        (Valid for GB)
        from £69.82
        from £69.82
        # 036
        MPN: 003330824
        BUSHING
        (Valid for GB - November 1998) BOCCOLA
        # 037
        MPN: 008900204
        PIN
        (Valid for GB - November 1998) SPINA
        from £0.54
        from £0.54
