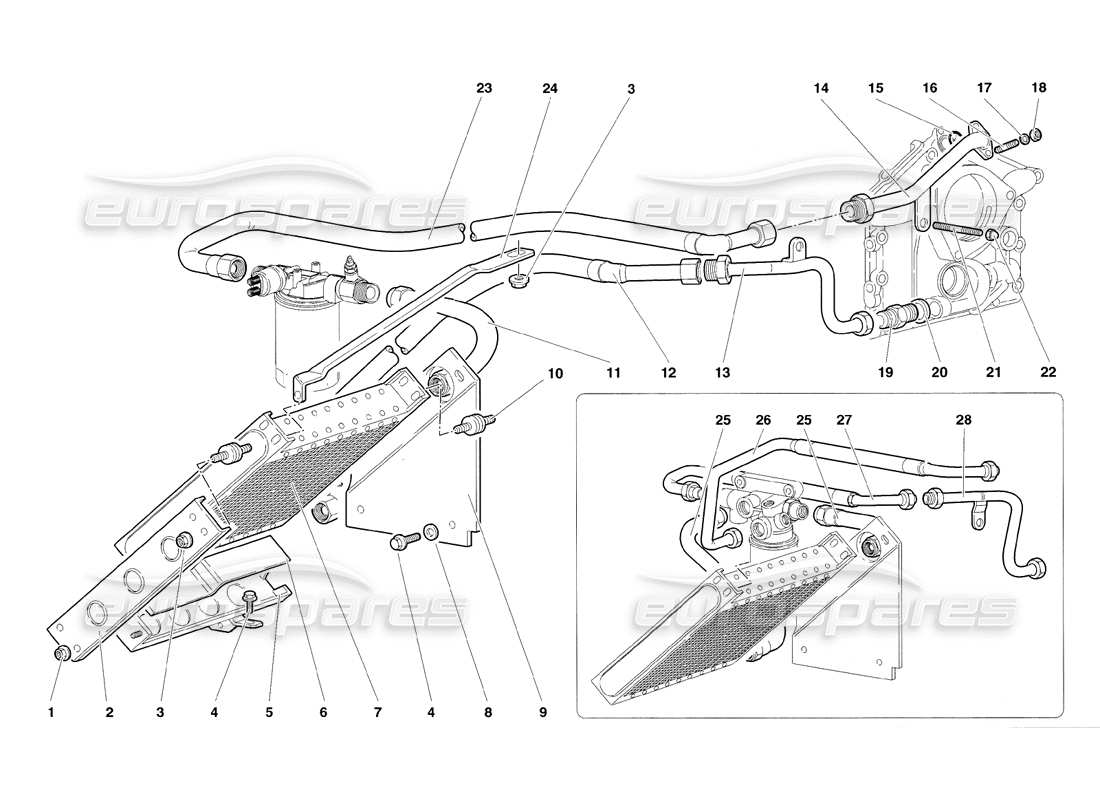

15.02.00 - Engine Oil System
Lamborghini Diablo SV (1998) Engine Oil System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 002
MPN: 004138030
BRACKET
STAFFA
from £18.28
from £18.28
# 003
MPN: 008200614
NUT
DADO
Supersession
Supersession
# 004
MPN: 008700663
SCREW
VITE
from £0.52
from £0.52
# 005
MPN: 004138033
SUPPORT
SUPPORTO
from £115.00
from £115.00
# 006
MPN: 410813585
RUBBER WEATHER-
PROFILATO GOMMA
from £8.48
from £8.48
# 007
MPN: 07M117021
OIL RADIATOR
RADIATORE OLIO
from £2,624.19
from £2,624.19
# 008
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 009
MPN: 004138040
SUPPORT
SUPPORTO
from £38.31
from £38.31
# 010
MPN: 008920602
ELASTIC SUPPORT
SUPPORTO ELASTICO
from £8.91
from £8.91
# 011
MPN: 0015001970
FLEX. HOSE
TUBO FLESSIBILE
from £496.31
from £496.31
This part replaces part number 001535077 which we have in stock
# 012
MPN: 001535076
FLEX. HOSE
TUBO FLESSIBILE
from £294.37
from £294.37
# 013
MPN: 001537686
PIPE
Tubo
from £55.25
from £55.25
# 014
MPN: 001535967
PIPE
Tubo
from £56.94
from £56.94
# 015
MPN: WHT003062
SEAL
ANELLO TENUTA
from £3.98
from £3.98
This part replaces part number 008602802
# 016
MPN: 008300828
STUD
PRIGIONIERO
# 017
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 018
MPN: 008200801
NUT
DADO
Supersession
Supersession
# 019
MPN: 001529610
CONNECTION
RACCORDO
from £32.39
from £32.39
# 020
MPN: 008403007
WASHER
RONDELLA
from £0.76
from £0.76
# 021
MPN: 008300905
STUD
PRIGIONIERO
from £11.69
from £11.69
# 022
MPN: 008200816
NUT
DADO
from £2.90
from £2.90
# 023
MPN: 001535078
PIPE
Tubo
from £354.51
from £354.51
# 024
MPN: 004138028
TIE ROD
TIRANTE
from £54.65
from £54.65
# 025
MPN: 0015001970
FLEX. HOSE
(Valid for USA - November 1998) TUBO FLESSIBILE
from £496.31
from £496.31
This part replaces part number 001535077 which we have in stock
# 025
MPN: 0015001970
FLEX. HOSE
(Valid for CANADA - November 1998) TUBO FLESSIBILE
from £496.31
from £496.31
This part replaces part number 001535077 which we have in stock
# 026
MPN: 001535966
PIPE
(Valid for USA - November 1998) TUBO
from £156.51
from £156.51
# 026
MPN: 001535966
PIPE
(Valid for CANADA - November 1998) TUBO
from £156.51
from £156.51
# 027
MPN: 001535965
PIPE
(Valid for USA - November 1998) TUBO
from £294.85
from £294.85
# 027
MPN: 001535965
PIPE
(Valid for CANADA - November 1998) TUBO
from £294.85
from £294.85
# 028
MPN: 001537292
PIPE
(Valid for USA - November 1998) TUBO
from £242.10
from £242.10
# 028
MPN: 001537292
PIPE
(Valid for CANADA - November 1998) TUBO
from £242.10
from £242.10
