lamborghini diablo sv (1997) body elements - right flank parts diagram

9410.05.00 - Body Elements - Right Flank

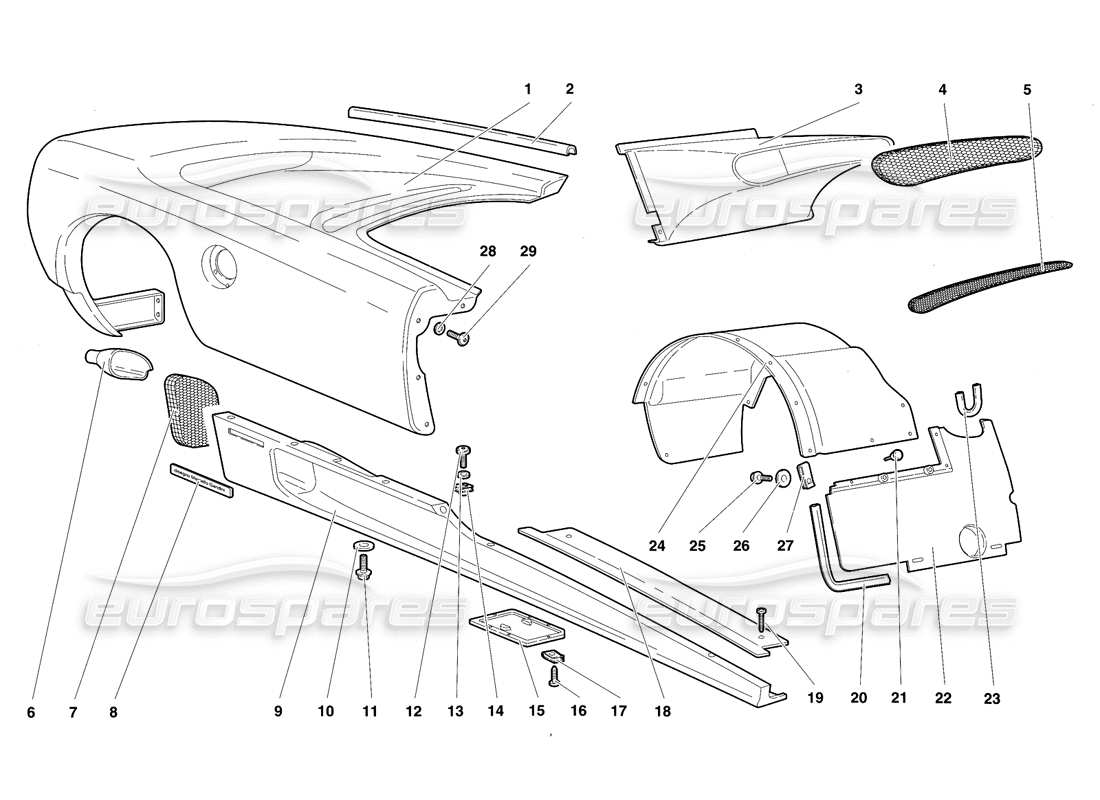

Lamborghini Diablo SV (1997) Body Elements - Right Flank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 009410008
    REAR MUDG. FENDER
    PARAFANGO POST.
    Supersession
    Supersession
    # 002
    MPN: 009490113
    GASKET
    Guarnizione
    from £15.35
    from £15.35
    This part replaces part number 009490110
    # 003
    MPN: 009453146
    CONVEYOR
    CONVOGLIATORE
    from £522.35
    from £522.35
    # 004
    MPN: 009430124
    NET
    RETE
    from £297.44
    from £297.44
    # 005
    MPN: 009430126
    NET
    RETE
    from £343.26
    from £343.26
    # 006
    MPN: 009453154
    CONVEYOR
    CONVOGLIATORE
    from £151.32
    from £151.32
    # 007
    MPN: 009430169
    NET
    RETE
    from £54.07
    from £54.07
    # 008
    MPN: 009466109
    PLATE
    TARGHETTA MARCELLO GANDINI
    from £170.78
    from £170.78
    # 009
    MPN: 009410304
    PANEL
    BRANCARDO
    from £1,488.48
    from £1,488.48
    # 010
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    This part replaces part number 008400607
    # 011
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    # 012
    MPN: 008700685
    SCREW
    VITE
    Supersession
    Supersession
    # 013
    MPN: 008400624
    WASHER
    RONDELLA
    from £2.68
    from £2.68
    # 014
    MPN: N90327506
    CLIP
    from £0.58
    from £0.58
    # 015
    MPN: 009410306
    INSPECTION LID
    SPORTELLO ISPEZIONE
    from £42.46
    from £42.46
    # 016
    MPN: WHT003114
    SCREW
    VITE
    from £3.34
    from £3.34
    This part replaces part number WHT000766
    # 017
    MPN: WHT003424
    CLIP
    MOLLETTA
    from £0.58
    from £0.58
    # 018
    MPN: 009458606
    DOORSILL MOULDING
    BATTICALCAGNO
    from £65.90
    from £65.90
    # 019
    MPN: 008700334
    SCREW
    VITE
    from £0.53
    from £0.53
    # 020
    MPN: 009411511
    GASKET
    Guarnizione
    from £69.15
    from £69.15
    # 021
    MPN: 009421408
    RUBBER BUMPER
    PARACOLPI GOMMA
    from £13.06
    from £13.06
    # 022
    MPN: 009411525
    PROTECTION
    PARASASSI
    from £227.41
    from £227.41
    This part replaces part number 009411500
    # 023
    MPN: 009411513
    GASKET
    Guarnizione
    from £102.46
    from £102.46
    # 024
    MPN: 009911500
    REAR WHEELBOX
    PASSARUOTA POST.
    from £265.33
    from £265.33
    # 025
    MPN: 008700449
    SCREW
    VITE
    from £1.91
    from £1.91
    # 026
    MPN: 008400508
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 027
    MPN: WHT000916A
    CLIP
    MOLLETTA
    from £9.30
    from £9.30
    # 028
    MPN: 008400624
    WASHER
    RONDELLA
    from £2.68
    from £2.68
    # 029
    MPN: 008700685
    SCREW
    VITE
    Supersession
    Supersession
