lamborghini diablo se30 (1995) lights (valid for canada - january 1995) parts diagram

96.63.01.00 - Lights (Valid for Canada - January 1995)

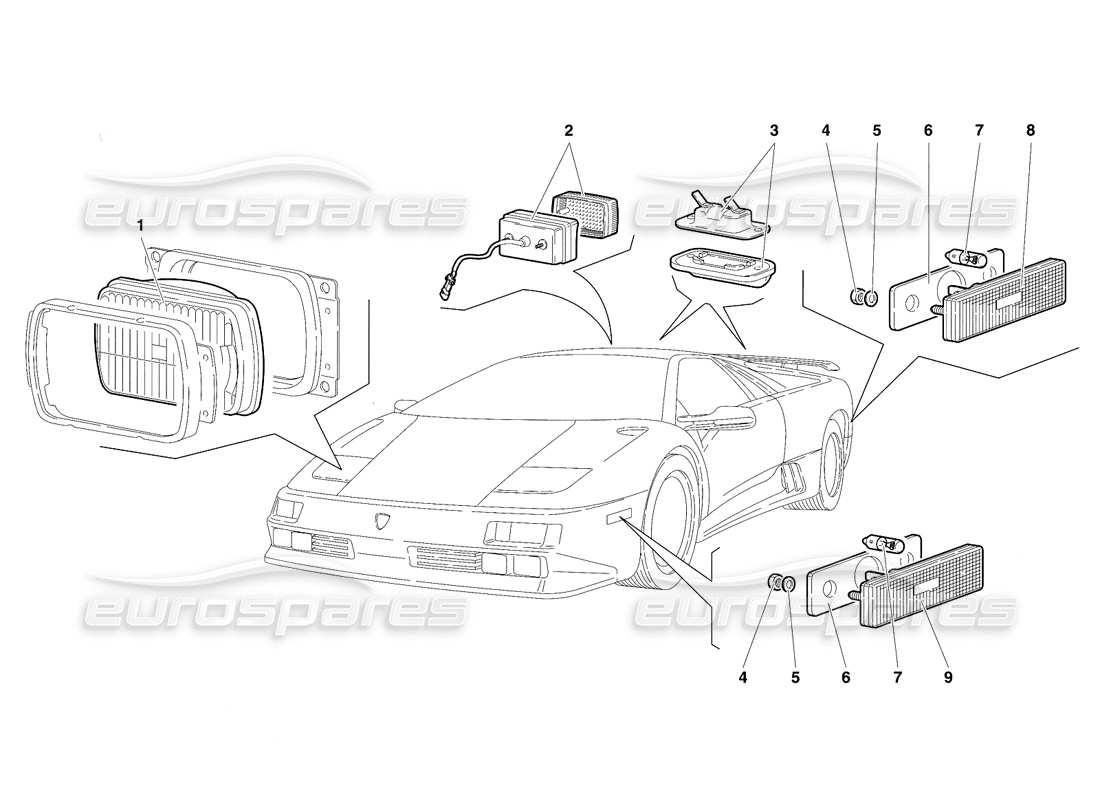

Lamborghini Diablo SE30 (1995) Lights (Valid for Canada - January 1995) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006331203
headlamp
(Valid for CANADA – January 1995) PROIETTORE
from £138.46
from £138.46
# 002
MPN: 006335317
REVERSE LAMP
(Valid for CANADA – January 1995) FANALE RETROMARCIA
# 003
MPN: 006331461
LICENCE PLATE LAMP
(Valid for CANADA – January 1995) FANALE TARGA
from £39.95
from £39.95
# 004
MPN: N0211963
NUT
(Valid for CANADA – January 1995) DADO
from £0.48
from £0.48
# 005
MPN: 008400501
WASHER
(Valid for CANADA – January 1995) RONDELLA
from £0.51
from £0.51
# 006
MPN: 009490106
GASKET
(Valid for CANADA – January 1995) GUARNIZIONE
from £16.33
from £16.33
# 007
MPN: 006617092
BULB
(Valid for CANADA – January 1995) LAMPADA
Supersession
Supersession
# 008
MPN: 006331782
SIDE MARKER IN RED
(Valid for CANADA – January 1995) SIDEMARKER POST. ROSSO
from £23.90
from £23.90
This part replaces part number 006320487 - and 1 more. Click to view details
# 009
MPN: 006331781
FRONT SIDEMARKER
(Valid for CANADA – January 1995) SIDEMARKER ANTERIORE ARANCIO
from £21.69
from £21.69
This part replaces part number 006320486 - and 1 more. Click to view details
