lamborghini diablo se30 (1995) engine hood parts diagram

9460.01.00 - Engine Hood

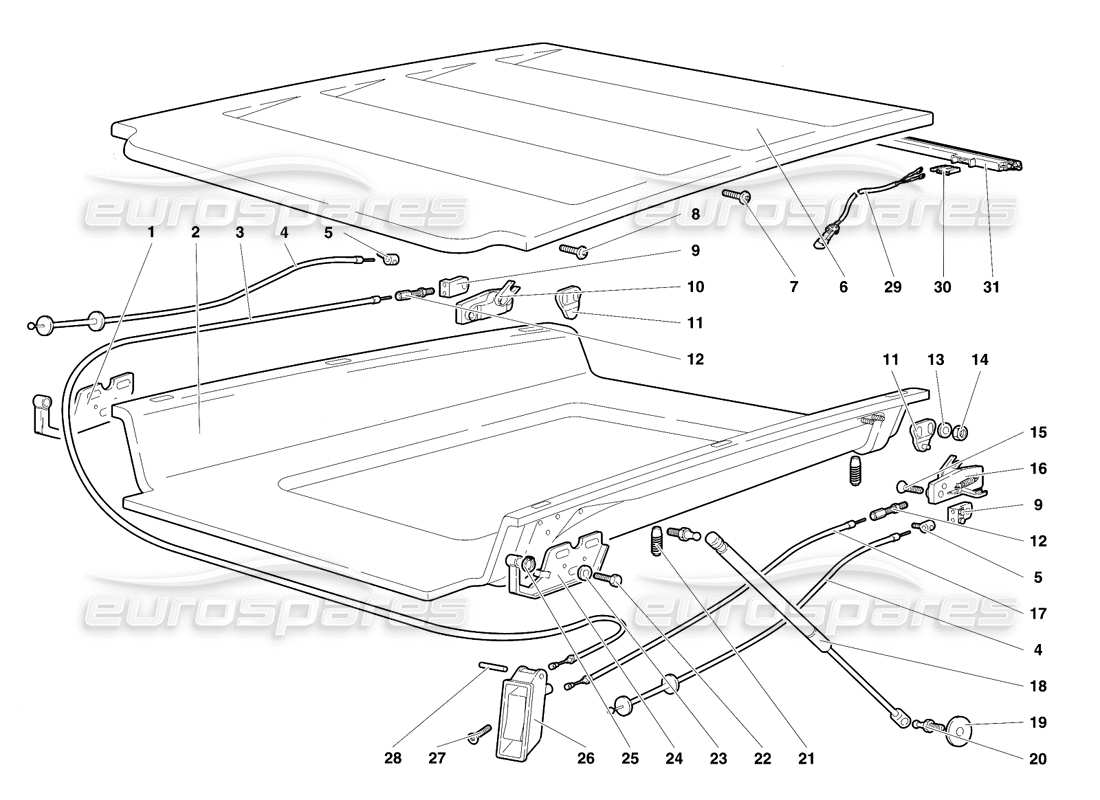

Lamborghini Diablo SE30 (1995) Engine Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 009460322
    E. HOOD RIGHT HINGE
    RIGHT ENGINE BONNET HINGE
    from £43.94
    from £43.94
    RH ENGINE HINGE Genuine Lamborghini - New (to order)
    # 002
    MPN: 600946001
    LOWER ENG. BONNET
    LOWER ENGINE BONNET
    from £6,831.85
    from £6,831.85
    LOWER & UPPER BONNET Genuine Lamborghini - New (to order)
    # 003
    MPN: 009460006
    HOOD OPEN. R. CABLE
    CAVO DX APERT. COFANO
    from £29.06
    from £29.06
    RH BONNET LOCK WIRE Genuine Lamborghini - New (to order)
    # 004
    MPN: 009460003
    EMERGENCY CABLE
    CAVO EMERGENZA
    from £16.22
    from £16.22
    BONNET EMERGENCY LOCK WIRE Genuine Lamborghini - New (to order)
    # 005
    MPN: 009460210
    CLAMP
    MORSETTO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: 600946002

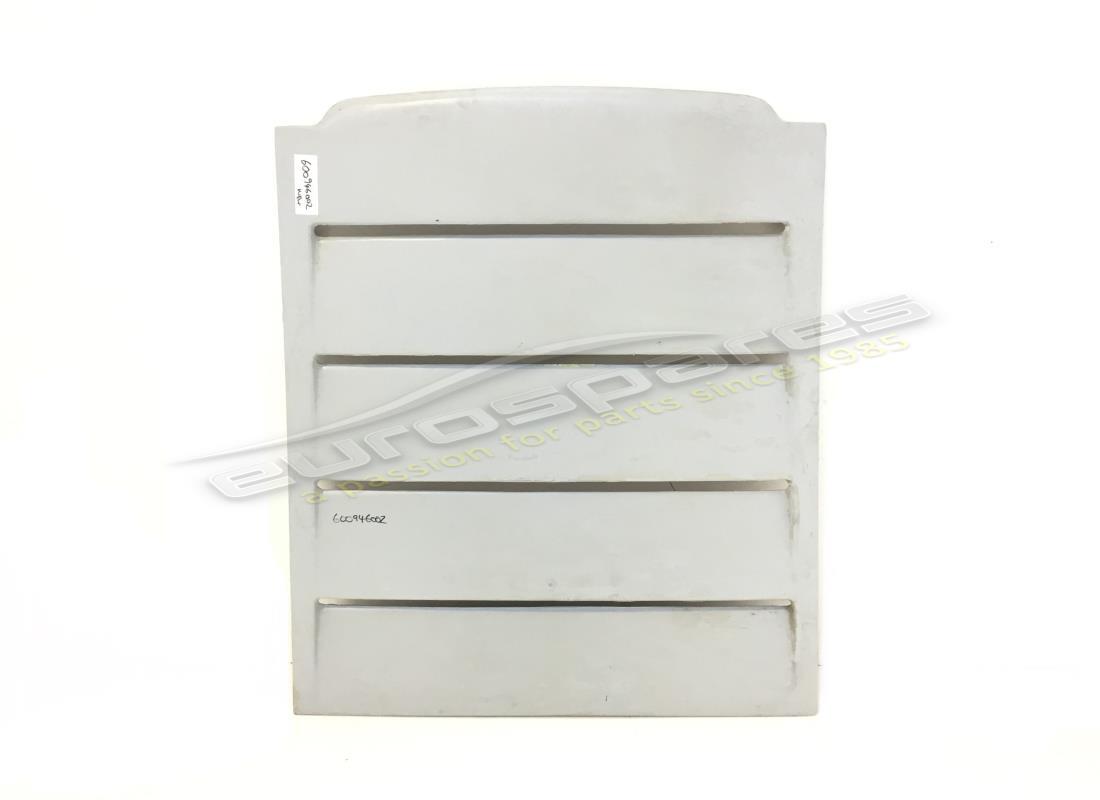

    UPPER ENGINE HOOD
    UPPER ENGINE BONNET
    from £9,335.33
    from £9,335.33
    UPPER BONNET ASSEMBLY Genuine Lamborghini - New (to order)
    UPPER BONNET ASSEMBLY Genuine Lamborghini - New (other) In stock
    NEW storage marks
    # 007
    MPN: 008700665
    SCREW
    VITE
    from £31.84
    from £31.84
    SCREW M6X12X13 (BLACK) Genuine Lamborghini - New (to order)
    # 008
    MPN: 008700685
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 009460212
    DOUBLE CLAMP
    USE 410814333
    HOOD OPENING CABLE HOOKING Genuine Lamborghini - New (to order)
    # 010
    MPN: 009460200
    Right lock
    SERRATURA DX
    from £407.93
    from £407.93
    RH BONNET LOCK Genuine Lamborghini - New (to order)
    # 011
    MPN: 009460201
    LOCK STRIKER
    RISCONTRO
    from £78.52
    from £78.52
    BONNET LOCK STRIKER Genuine Lamborghini - New (to order)
    # 012
    MPN: 009460213
    ADJ/SCREW
    VITE REGOLAZIONE
    SCREW Genuine Lamborghini - New (to order)
    # 013
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.53
    from £0.53
    This part replaces part number 008400607
    WASHER Genuine Lamborghini - New In stock
    # 014
    MPN: N02214812
    NUT
    DADO
    from £1.10
    from £1.10
    This part replaces part number 008200612
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    hex. nut, self-locking - M6 Genuine Porsche Part - New In stock
    # 015
    MPN: 008700613
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW M6X14 UNI 5933/8G/ZB Genuine Lamborghini - New In stock
    # 016
    MPN: 009460202
    Left lock
    SERRATURA SX
    from £245.42
    from £245.42
    *LH BONNET LOCK Genuine Lamborghini - New (to order)
    # 017
    MPN: 009460007
    HOOD OPEN. L. CABLE
    CAVO SX APERT. COFANO
    from £29.06
    from £29.06
    LH BONNET LOCK WIRE Genuine Lamborghini - New (to order)
    # 018
    MPN: 0092004388
    ENGINE COVER STRUT
    MARTI NETTO
    from £136.81
    from £136.81
    ENGINE COVER GAS STRUT, 615439 Genuine Lamborghini - New In stock
    # 019
    MPN: WHT001942
    WASHER
    RONDELLA
    from £2.18
    from £2.18
    WASHER Genuine Lamborghini - New In stock
    # 020
    MPN: 009459305
    BALL PIN
    PERNO GIUNTO SFERICO
    from £1.60
    from £1.60
    CAP BONNET PIN Genuine Lamborghini - New In stock
    # 021
    MPN: 009460214
    RUBBER BUMPER
    PARACOLPI COMMA
    from £4.88
    from £4.88
    BONNET ADJUSTMENT RUBBER PLUG Genuine Lamborghini - New In stock
    # 022
    MPN: 008100656
    SCREW
    VITE
    from £2.74
    from £2.74
    SCREW 16X6X1 UNI 5739/Z.NE Genuine Lamborghini - New (to order)
    # 023
    MPN: 008400626
    WASHER
    RONDELLA
    from £24.21
    from £24.21
    WASHER 6.5X22X2.5 UNI 4721/Z Genuine Lamborghini - New (to order)
    # 024
    MPN: 009460323
    E. HOOD LEFT HINGE
    CERNIERA SX COFANO MOTORE
    from £72.81
    from £72.81
    LH ENGINE HINGE Genuine Lamborghini - New (to order)
    # 025
    MPN: 008580801
    RETAINER RING
    ANELLO RITEGNO
    from £0.53
    from £0.53
    O-RING E 8 UNI 7535-75 Genuine Lamborghini - New In stock
    # 026
    MPN: 410823537
    INTERNAL HANDLE
    from £766.08
    from £766.08
    INTERNAL DOOR HANDLE Genuine Lamborghini - New (to order)
    # 028
    MPN: 008850304
    PIN
    SPINA
    from £1.40
    from £1.40
    PIN 3 H8 L=25 UNI 177 Genuine Lamborghini - New In stock
    # 029
    MPN: 006135191
    ELECT CABLE
    CAVO ELETTRICO
    from £17.09
    from £17.09
    BRAKE LIGHT WIRING Genuine Lamborghini - New (to order)
    # 030
    MPN: 006132280
    CONNECTION
    CONNESSIONE
    from £6.43
    from £6.43
    SUPPLEMENTARY BRAKE LIGHT CONN ECTOR Genuine Lamborghini - New (to order)
    # 031
    MPN: 410945249A
    CENTRAL BRAKE LIGHT
    use part number: 0R1470010
    from £112.40
    from £112.40
    STOP LAMP Genuine Lamborghini - New In stock
    # 031
    MPN: 410945249A
    CENTRAL BRAKE LIGHT
    from £112.40
    from £112.40
    STOP LAMP Genuine Lamborghini - New In stock
