9411.01.00 - Frame Floor Panels

Lamborghini Diablo SE30 (1995) Frame Floor Panels Parts Diagram

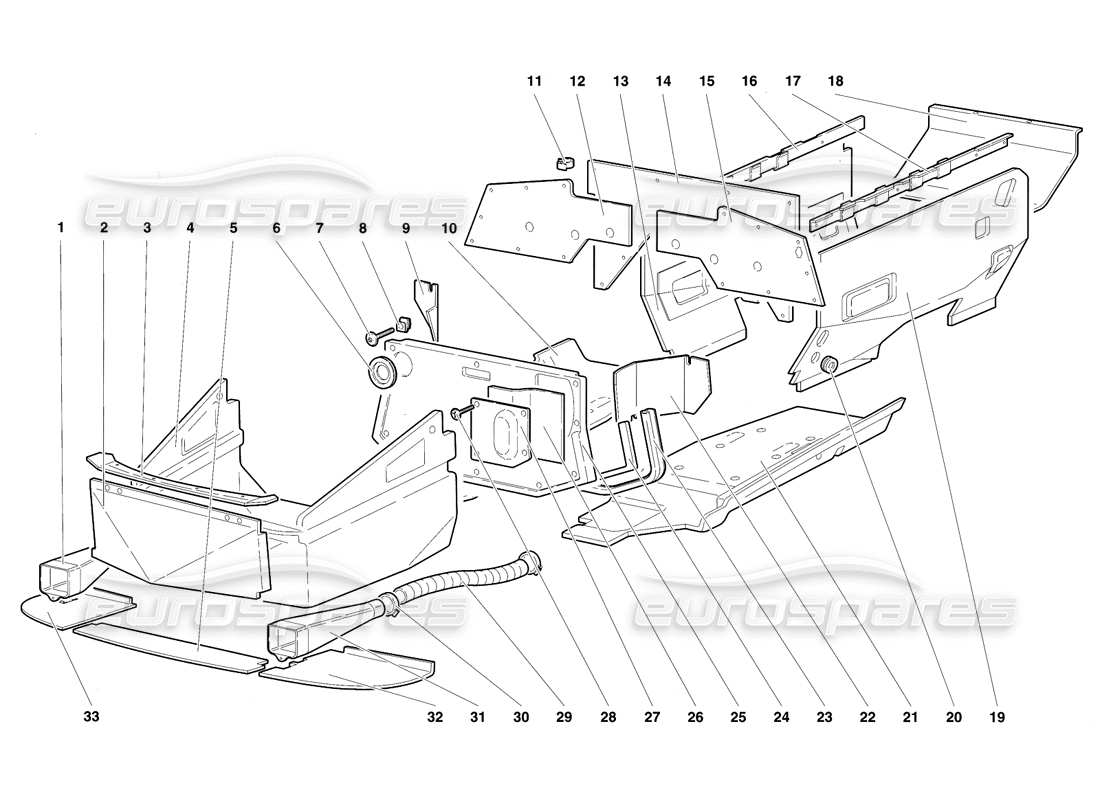

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009453150
CONVEYOR
CONVOGLIATORE DX
from £449.62
from £449.62
# 002
MPN: 009411105
PANEL
PANNELLO ANT. VANO COF. ANT.
from £231.72
from £231.72
# 003
MPN: 009411113
Frame
CORNICE
from £472.10
from £472.10
This part replaces part number 009411109
# 004
MPN: 009409225
COVERING
RIVESTIMENTO BAULE
from £340.68
from £340.68
# 005
MPN: 009411106
CENTRAL PANEL
PANNELLO CENTRALE
from £115.00
from £115.00
# 006
MPN: 009411418
GASKET
Guarnizione
from £19.15
from £19.15
# 007
MPN: 008700676
SCREW
VITE
from £26.89
from £26.89
# 008
MPN: N90327506
CLIP
MOLLETTA
from £0.61
from £0.61
# 009
MPN: 009458381
PANEL
PANNELLO COPRIPASSARUOTA DX
from £26.74
from £26.74
# 010
MPN: 009411226
RIGHT SHELF PANEL
PIANALE DX
from £400.47
from £400.47
# 011
MPN: 001731994
STRAP
FASCETTA
from £6.35
from £6.35
# 012
MPN: 009458379
RIGHT LINING
RIGHT FENDER ISOLATION
from £78.43
from £78.43
# 013
MPN: 009411629
RIGHT LATERAL LINING
RIGHT SIDE INSULATION
from £554.06
from £554.06
# 014
MPN: 009455247
CENTRAL LINING
CENTRAL ISOLATION
from £104.89
from £104.89
# 015
MPN: 009458380
LEFT LINING
ISOLAMENTO SX PARAFANGO
from £57.88
from £57.88
# 016
MPN: 009411635
RIGHT SUPPORT
SUPPORTO DX
from £140.94
from £140.94
# 017
MPN: 009411636
LEFT SUPPORT
SUPPORTO SX
from £140.94
from £140.94
# 018
MPN: 009411604
REAR LINING
REAR INSULATION
from £312.59
from £312.59
# 019
MPN: 009411630
LEFT LATERAL LINING
ISOLAMENTO LATERALE SX
from £554.06
from £554.06
# 020
MPN: 008612804
GASKET
Guarnizione
from £3.94
from £3.94
# 021
MPN: 009411227
LEFT SHELF PANEL
PIANALE SX
from £386.36
from £386.36
# 022
MPN: 009458382
PANEL
PANNELLO COPRIPASSARUOTA SX
from £33.00
from £33.00
# 023
MPN: 009409218
GASKET
Guarnizione
from £13.61
from £13.61
# 024
MPN: 009409219
GASKET
Guarnizione
from £3.48
from £3.48
# 025
MPN: 009409237
PANEL
PANNELLO
from £799.80
from £799.80
# 026
MPN: 009409236
COVERING
PELLICOLA
from £5.65
from £5.65
# 027
MPN: 009409238
INSPECTION LID
SPORTELLO ISPEZIONE
from £266.97
from £266.97
# 028
MPN: 008700455
SCREW
VITE
Supersession
Supersession
# 029
MPN: 009453133
FLEX. HOSE
TUBO CORRUG. PORT. ARIA
from £153.80
from £153.80
# 030
MPN: 008837501
STRAP
FASCETTA
from £9.60
from £9.60
# 031
MPN: 009453151
LEFT CONVEYOR
CONVOGLIATORE SX
from £452.20
from £452.20

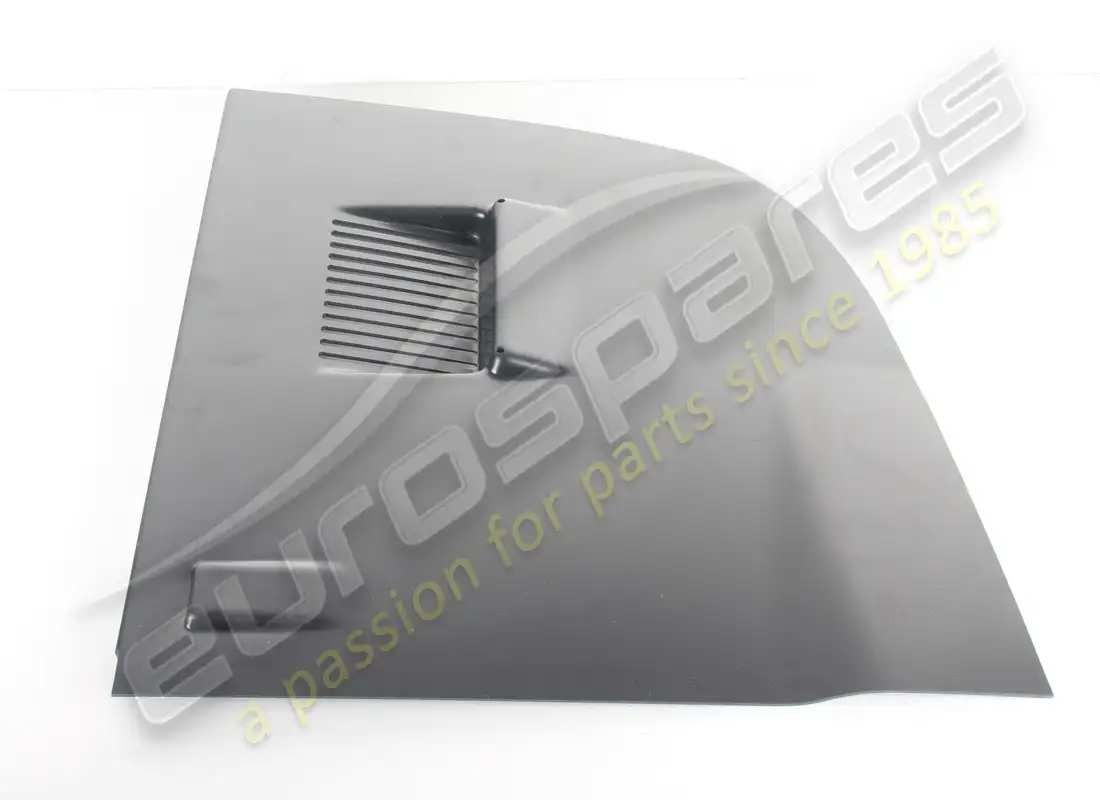

# 032
MPN: 009411101
LEFT PANEL
PANNELLO SX LATO COFANO
from £111.52
from £111.52
# 033
MPN: 009411115
RIGHT PANEL
RIGHT HOOD SIDE PANEL
from £187.39
from £187.39
This part replaces part number 009411100
