lamborghini diablo se30 (1995) handbrake (valid for rh d. version - january 1995) parts diagram

74.33.01.00 - Handbrake (Valid for RH D. Version - January 1995)

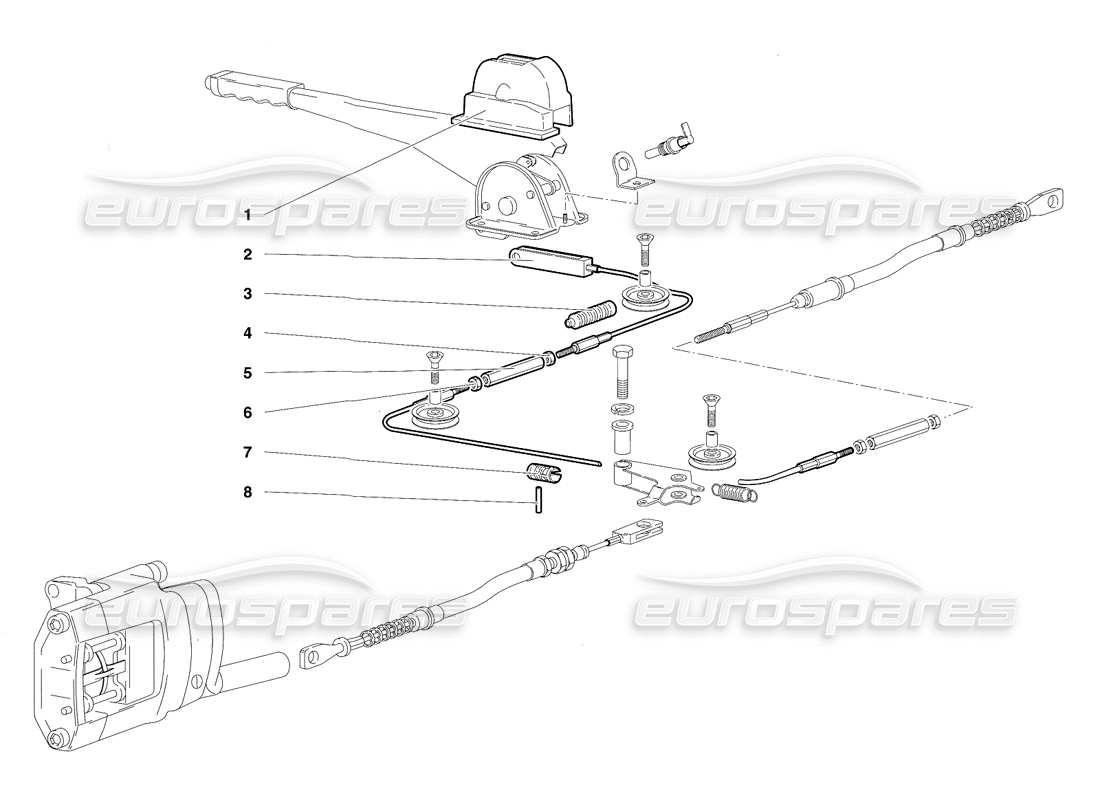

Lamborghini Diablo SE30 (1995) Handbrake (Valid for R.H.D. Version - January 1995) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009458388
CASE
(Valid for RH D. version – January 1995) SCATOLA
from £155.06
from £155.06
# 002
MPN: 003332746
TIE ROD
(Valid for RH D. version – January 1995) TIRANTE
from £27.28
from £27.28
# 003
MPN: 003332748
SHIELD
(Valid for RH D. version – January 1995) PROTEZIONE
from £2.00
from £2.00
# 004
MPN: 008200607
NUT
(Valid for RH D. version – January 1995) DADO
from £8.05
from £8.05
# 005
MPN: 413609206
ADJUSTING SLEEVE
(Valid for RH D. version – January 1995) TESTA REGISTRO
from £39.87
from £39.87
# 006
MPN: N01100632
NUT
(Valid for RH D. version – January 1995) DADO
from £1.08
from £1.08
# 007
MPN: 003330824
BUSHING
(Valid for RH D. version – January 1995) BOCCOLA
# 008
MPN: 008900204
PIN
(Valid for RH D. version – January 1995) SPINA
from £0.54
from £0.54
