62.01.00 - fuel system

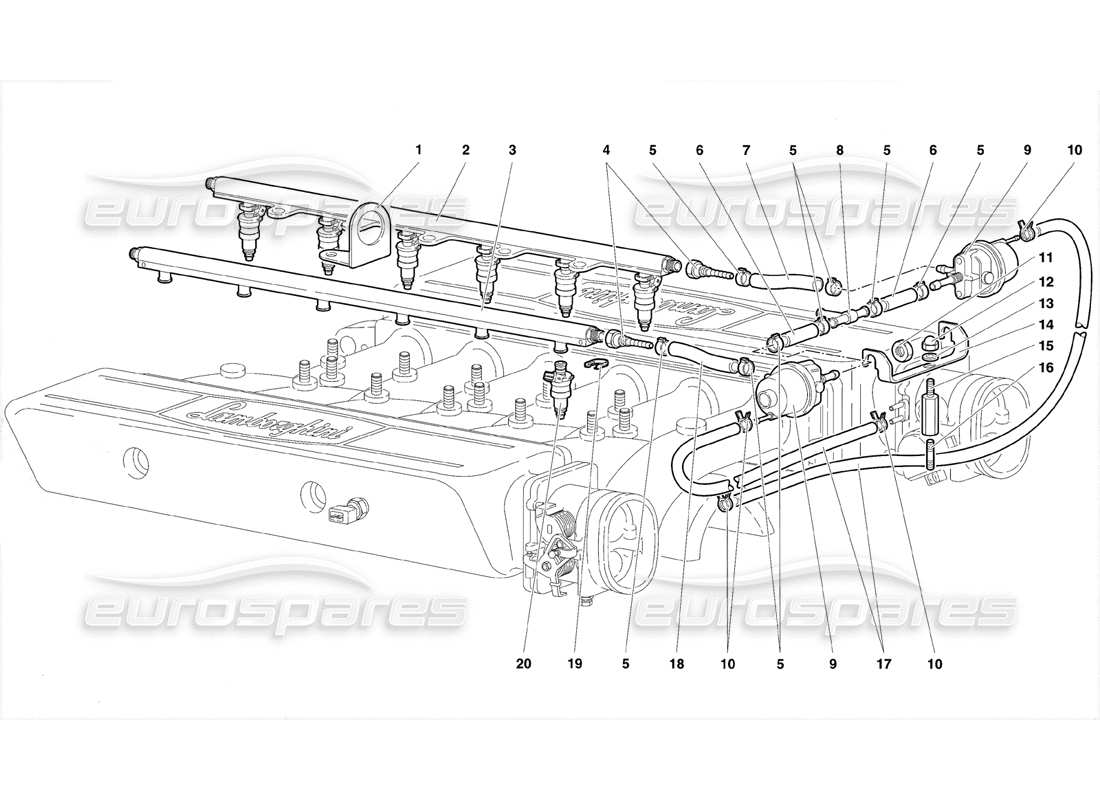

Lamborghini Diablo SE30 (1995) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001633721
SUPPORT
SUPPORTO CABL.CENTR.INIEZ.
from £20.23
from £20.23
# 002
MPN: 002032514
INJECTOR
TUBAZIONE E INIETTORI
from £2,035.46
from £2,035.46
# 003
MPN: 002026178
RIGID PIPE
TUBAZIONE RIGIDA
Supersession
Supersession
# 004
MPN: 006227630
CONNECTION
RACCORDO
from £8.43
from £8.43
# 005
MPN: 008831527
STRAP
FASCETTA
from £2.55
from £2.55
# 006
MPN: 002033782
FLEX. HOSE
TUBO FLESSIBILE
from £18.95
from £18.95
# 007
MPN: 002035253
FLEX. HOSE
TUBO FLESSIBILE
from £190.66
from £190.66
# 008
MPN: 002033783
CONNECTION
RACCORDO A 3 VIE
from £16.96
from £16.96
# 009
MPN: 002027648
PRESSURE REGULA.
REGOLATORE PRESSIONE
from £296.56
from £296.56
# 010
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 012
MPN: 008200605
NUT
DADO
from £1.89
from £1.89
# 013
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 014
MPN: 002033784
BRACKET
STAFFA
from £84.58
from £84.58
# 015
MPN: 001128397
STUD
COLONNETTA
from £22.23
from £22.23
# 016
MPN: 008300613
STUD
PRIGIONIERO
from £3.07
from £3.07
# 017
MPN: 001532659
FLEX. HOSE
TUBO FLESSIBILE
from £12.27
from £12.27
# 018
MPN: 002035255
FLEX. HOSE
TUBO FLESSIBILE
from £95.55
from £95.55
# 019
MPN: 002027642
CLIP
MOLLETTA
# 020
MPN: 07M906031
INJECTOR
INIETTORE
from £769.53
from £769.53
