45.02.00 - Climate Control

Lamborghini Diablo SE30 (1995) Climate Control Parts Diagram

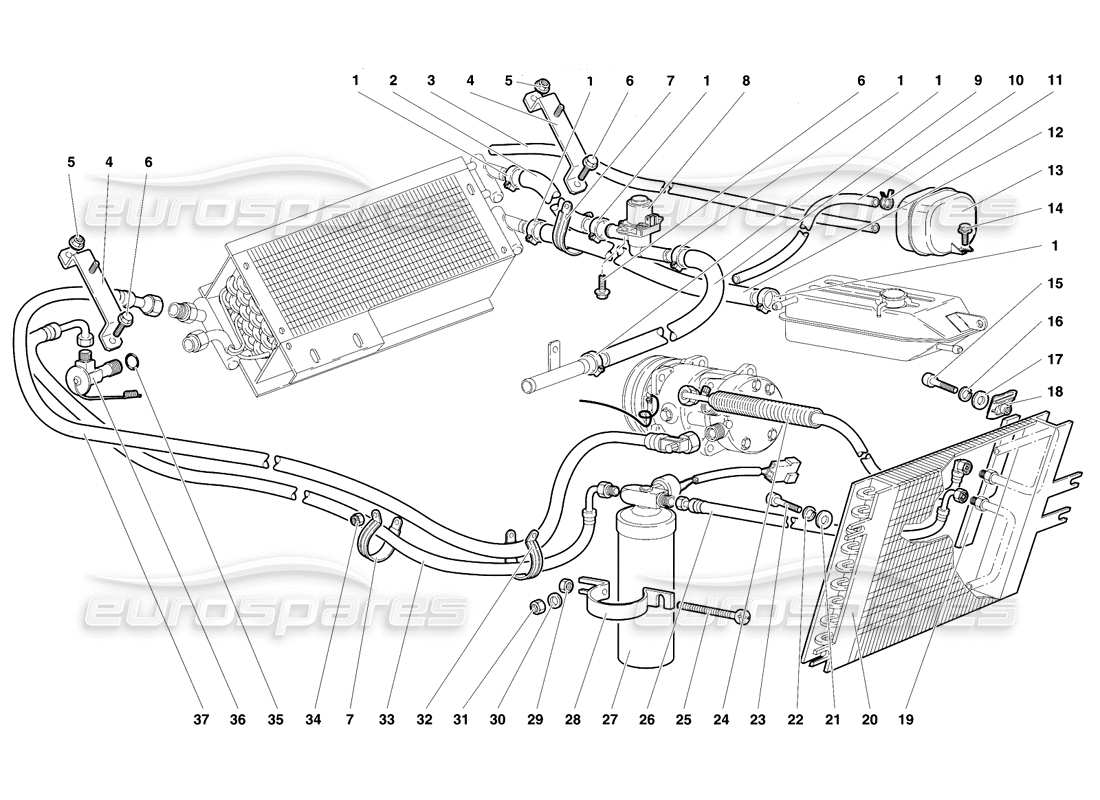

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 008832003
      STRAP
      FASCETTA
      from £27.78
      from £27.78
      FASC.19-28 H.12 Genuine Lamborghini - New In stock
      # 002
      MPN: 004734346
      FLEX. HOSE
      TUBO FLESSIBILE
      from £117.16
      from £117.16
      SOLENOID VALVE/HEATER PIPE Genuine Lamborghini - New (to order)
      # 003
      MPN: 009414600
      FLEX. HOSE
      TUBO FLESSIBILE
      from £24.46
      from £24.46
      VACUUM RESERVOIR PIPE Genuine Lamborghini - New (to order)
      # 004
      MPN: 004131338
      STRAP
      FASCETTA
      from £26.08
      from £26.08
      PIPE CLAMP Genuine Lamborghini - New (to order)
      # 005
      MPN: 008200606
      NUT
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 006
      MPN: 008700663
      SCREW
      VITE
      from £0.53
      from £0.53
      SCREW M6 Genuine Lamborghini - New (to order)
      # 007
      MPN: 008834003
      STRAP
      FASCETTA
      from £6.10
      from £6.10
      CLAMP D1 40X15 W4 Genuine Lamborghini - New (to order)
      # 008
      MPN: 006031658
      ELECTRO-VALVE
      ELETTROVALVOLA
      from £114.57
      from £114.57
      CONDITIONER SYSTEM SOLENOID VA LVE Genuine Lamborghini - New (to order)
      # 009
      MPN: 004734347
      FLEX. HOSE
      TUBO FLESSIBILE
      from £114.57
      from £114.57
      INTERMEDIATE JOINT-SOLENOID PI PE Genuine Lamborghini - New (to order)
      # 010
      MPN: 006231411
      FLEX. HOSE
      TUBO FLESSIBILE
      from £7.80
      from £7.80
      VACUUM RESERVOIR/INTAKE MANIFO LD HOSE Genuine Lamborghini - New (to order)
      # 011
      MPN: 008830128
      STRAP
      FASCETTA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 012
      MPN: 001733231
      FLEX. HOSE
      TUBO FLESSIBILE
      from £118.46
      from £118.46
      NOURICE-HEATER PIPE Genuine Lamborghini - New (to order)
      # 013
      MPN: 001323406
      VACUUM TANK
      SERBATOIO A DEPRES-
      from £28.65
      from £28.65
      VACUUM TANK Genuine Lamborghini - New (to order)
      # 014
      MPN: 008700663
      SCREW
      VITE
      from £0.53
      from £0.53
      SCREW M6 Genuine Lamborghini - New (to order)
      # 015
      MPN: 008700614
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 016
      MPN: 008410611
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
      # 017
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400607
      WASHER Genuine Lamborghini - New In stock
      # 018
      MPN: N90327506
      CLIP
      MOLLETTA
      from £0.62
      from £0.62
      SPEED NUT Genuine Lamborghini - New In stock
      # 019
      MPN: 004531592
      GASKET
      Guarnizione
      from £5.89
      from £5.89
      AERSTOP FAN/12 MM 5 X 30 X 450 Genuine Lamborghini - New (to order)
      # 020
      MPN: 004531594
      A/C CONDENSER
      CONDENSATORE CONDIZIONATORE
      from £217.89
      from £217.89
      CONDITIONER CONDENSER Genuine Lamborghini - New (to order)
      # 021
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400607
      WASHER Genuine Lamborghini - New In stock
      # 022
      MPN: 008410611
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
      # 023
      MPN: 008700614
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 024
      MPN: 004530164
      FLEX. HOSE
      TUBO FLESSIBILE
      from £437.52
      from £437.52
      COMPRESSOR/CONDENSERPIPE Genuine Lamborghini - New (to order)
      # 025
      MPN: 008700542
      SCREW
      VITE
      from £0.53
      from £0.53
      SCREW 5X45 UNI 6107/5D/Z Genuine Lamborghini - New In stock
      # 026
      MPN: 004530165
      FLEX. HOSE
      TUBO FLESSIBILE
      from £137.04
      from £137.04
      CONDENSER/FILTER PIPE Genuine Lamborghini - New (to order)
      # 027
      MPN: 004534692
      FILTER
      FILTRO DEIDRATATORE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 028
      MPN: 004531395
      STRAP
      FASCETTA
      from £5.60
      from £5.60
      CONDITIONER AIR CLEANER CLAMP Genuine Lamborghini - New (to order)
      # 030
      MPN: 008400806
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 031
      MPN: 008200804
      NUT
      DADO
      from £0.73
      from £0.73
      NUT Genuine Lamborghini - New In stock
      # 032
      MPN: 008834401
      STRAP
      FASCETTA
      from £8.17
      from £8.17
      CLAMP D1 W4 D.44 Genuine Lamborghini - New (to order)
      # 033
      MPN: 004530166
      FLEX. HOSE
      TUBO FLESSIBILE
      from £229.13
      from £229.13
      FILTER/EXPANSION VALVE PIPE Genuine Lamborghini - New (to order)
      # 034
      MPN: 008200606
      NUT
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 035
      MPN: 008601103
      SEAL
      ANELLO TENUTA
      from £6.64
      from £6.64
      RING 11 MM OR Genuine Lamborghini - New In stock
      # 036
      MPN: 004530261
      VALVE
      VALVOLA Dl ESPANSIONE
      from £202.32
      from £202.32
      EXPANSION VALVE Genuine Lamborghini - New (to order)
      # 037
      MPN: 004530167
      FLEX. HOSE
      TUBO FLESSIBILE
      from £239.61
      from £239.61
      EVAPORATOR/COMPRESSOR PIPE Genuine Lamborghini - New (to order)
