lamborghini diablo se30 (1995) steering parts diagram

43.01.00 - Steering

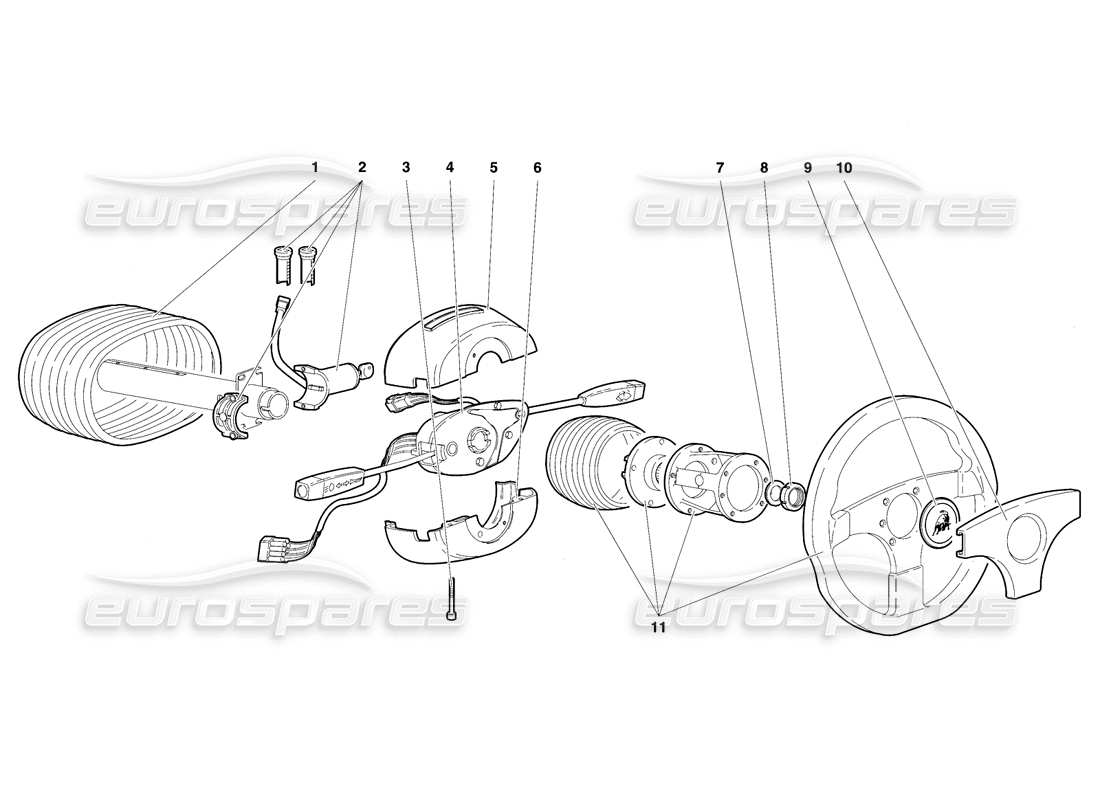

Lamborghini Diablo SE30 (1995) Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009414206
COVERING
RIVESTIMENTO PIANTONE
from £145.26
from £145.26
# 002
MPN: 006031202
IGNITION SWITCH
KIT COMMUTATORE ACCENSIONE
from £480.76
from £480.76
# 003
MPN: 008700442
SCREW
VITE
from £0.53
from £0.53
# 004
MPN: 004320773
LEVER ASSY
KIT LEVE
from £886.26
from £886.26
# 005
MPN: 009414319
UPPER COVER
COPERCHIO SUPERIORE
Supersession
Supersession
# 006
MPN: 009414320
LOWER COVER
COPERCHIO INFERIORE
Supersession
Supersession
# 007
MPN: 008401417
WASHER
RONDELLA
from £2.05
from £2.05
# 008
MPN: 008251501
PLUG
GHIERA
Supersession
Supersession
# 009
MPN: 004301790
STEERING WHEEL BADGE
Badge
from £186.76
from £186.76
# 010
MPN: 004335063
PADDING CUSHION
CUSCINO COPRIRAZZE
from £159.09
from £159.09
# 011
MPN: 004335058
STEERING WHEEL
Volante
