33.01.00 - Handbrake

Lamborghini Diablo SE30 (1995) Handbrake Parts Diagram

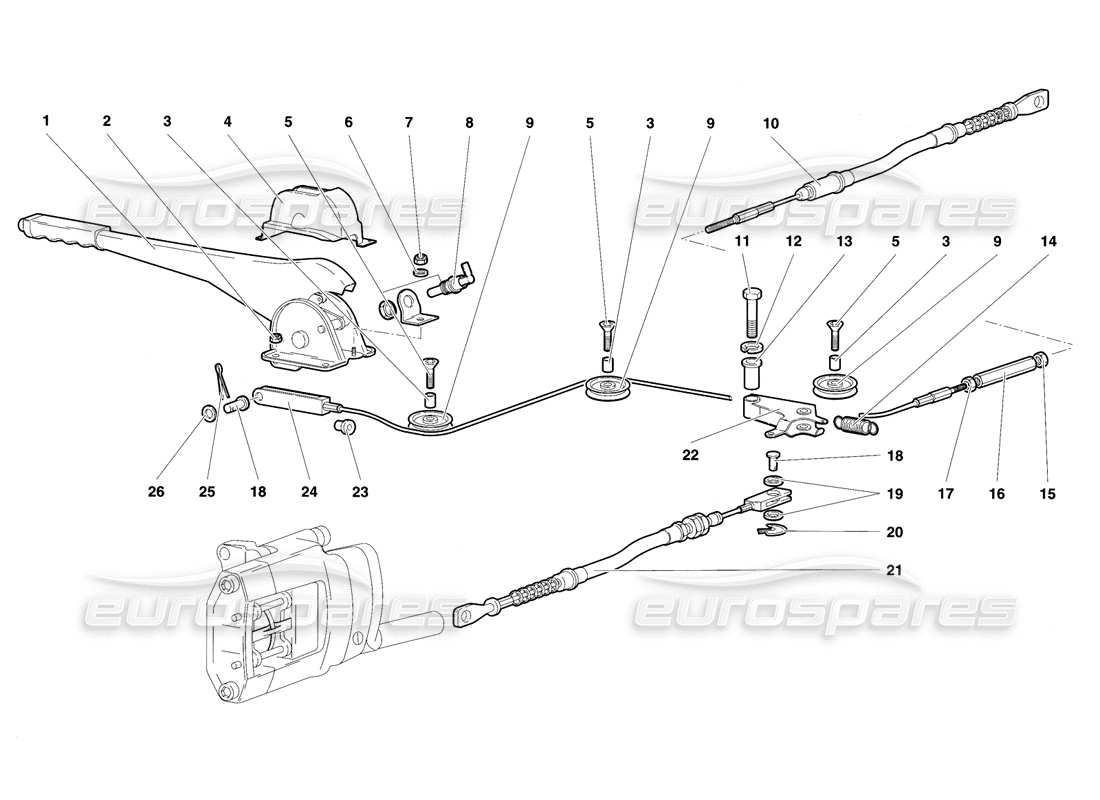

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 410711301D
      HAND BRAKE LEVER
      from £2,360.48
      from £2,360.48
      This part replaces part number 0033000780
      HAND BRAKE LEVER, Genuine Lamborghini - New (to order)
      # 002
      MPN: 008200606
      NUT
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 003
      MPN: 003330827
      BUSHING
      BOCCOLA
      BUSHING Genuine Lamborghini - New (to order)
      # 004
      MPN: 009458374
      CASE
      LEVER COVER
      from £68.07
      from £68.07
      BOX ON HAND BRAKE BASE Genuine Lamborghini - New (to order)
      # 005
      MPN: 008700851
      SCREW
      VITE
      from £0.53
      from £0.53
      SCREW M8X35 UNI 5933/8G/ZD Genuine Lamborghini - New (to order)
      # 006
      MPN: WHT001187
      WASHER
      RONDELLA
      from £0.56
      from £0.56
      This part replaces part number 008400502
      WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
      # 007
      MPN: N0211963
      NUT
      DADO
      from £0.53
      from £0.53
      HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
      hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
      # 008
      MPN: 003319356
      SWITCH
      INTERRUTTORE PER SPIA
      from £22.26
      from £22.26
      LEVER BUTTON Genuine Lamborghini - New (to order)
      # 009
      MPN: 003332512
      PULLEY
      CARRUCOLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 010
      MPN: 003332762
      RIGHT TIE ROD
      TIRANTE DX
      from £137.92
      from £137.92
      RH SHOE HANDBRAKE WIRE ASSEMBL Y Genuine Lamborghini - New (to order)
      # 011
      MPN: 008101407
      SCREW
      VITE
      from £3.32
      from £3.32
      SCREW M14X55 UNI 5738/8G/Z Genuine Lamborghini - New (to order)
      # 012
      MPN: 008411502
      WASHER
      RONDELLA
      from £1.62
      from £1.62
      SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (to order)
      SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (other) In stock
      ROND. EL. A15 UNI 1751
      # 013
      MPN: 003330828
      SPACER
      DISTANZIALE
      SPACER Genuine Lamborghini - New (to order)
      # 014
      MPN: 003330829
      SPRING
      MOLLA
      SPRING Genuine Lamborghini - New (to order)
      # 015
      MPN: 008200607
      NUT
      DADO
      from £8.05
      from £8.05
      D 6X1 SIN. 8G NUT Genuine Lamborghini - New (to order)
      # 016
      MPN: 413609206
      ADJUSTING SLEEVE
      REGISTRO
      from £39.87
      from £39.87
      HANDBRAKE TIEROD ADJUSTMENT Genuine Lamborghini - New (to order)
      # 017
      MPN: N01100632
      NUT
      DADO
      from £1.06
      from £1.06
      HEX.NUT Genuine Lamborghini - New In stock
      hex. nut (N 01100632) Genuine Porsche Part - New (to order)
      # 018
      MPN: 410609789
      PIN
      PERNO
      from £18.55
      from £18.55
      This part replaces part number 003301307 which we have in stock
      PIN Genuine Lamborghini - New (to order)
      # 019
      MPN: 008400806
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      WASHER 15X8X1.5 UNI 1750 R40/Z Genuine Lamborghini - New In stock
      # 020
      MPN: 004207085
      SPLIT PIN
      STOPPED
      from £48.26
      from £48.26
      BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
      # 021
      MPN: 003332751
      LEFT TIE ROD
      TIRANTE SX
      from £111.94
      from £111.94
      LH SHOE HANDBRAKE WIRE ASSEMBL Y Genuine Lamborghini - New (to order)
      # 022
      MPN: 003333935
      ROCKER
      BILANCIERE
      from £126.00
      from £126.00
      SUPPORT Genuine Lamborghini - New (to order)
      SUPPORT Genuine Lamborghini - Used In stock
      Complete
      # 023
      MPN: 003330880
      RUBBER BUSHING
      BOCCOLA GOMMA
      RUBBER BUSHING Genuine Lamborghini - New (to order)
      # 024
      MPN: 003330816
      CENTRAL TIE ROD
      TIRANTE CENTRALE
      from £172.87
      from £172.87
      HANDBRAKE WIRE ASSEMBLY Genuine Lamborghini - New (to order)
      # 025
      MPN: 008820201
      SPLIT PIN
      COPIGLIA
      from £4.11
      from £4.11
      SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
      # 026
      MPN: 008400606
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
