lamborghini diablo se30 (1995) ignition distributor and phase sensors parts diagram

16.01.00 - Ignition Distributor and Phase Sensors

Lamborghini Diablo SE30 (1995) Ignition Distributor and Phase Sensors Parts Diagram

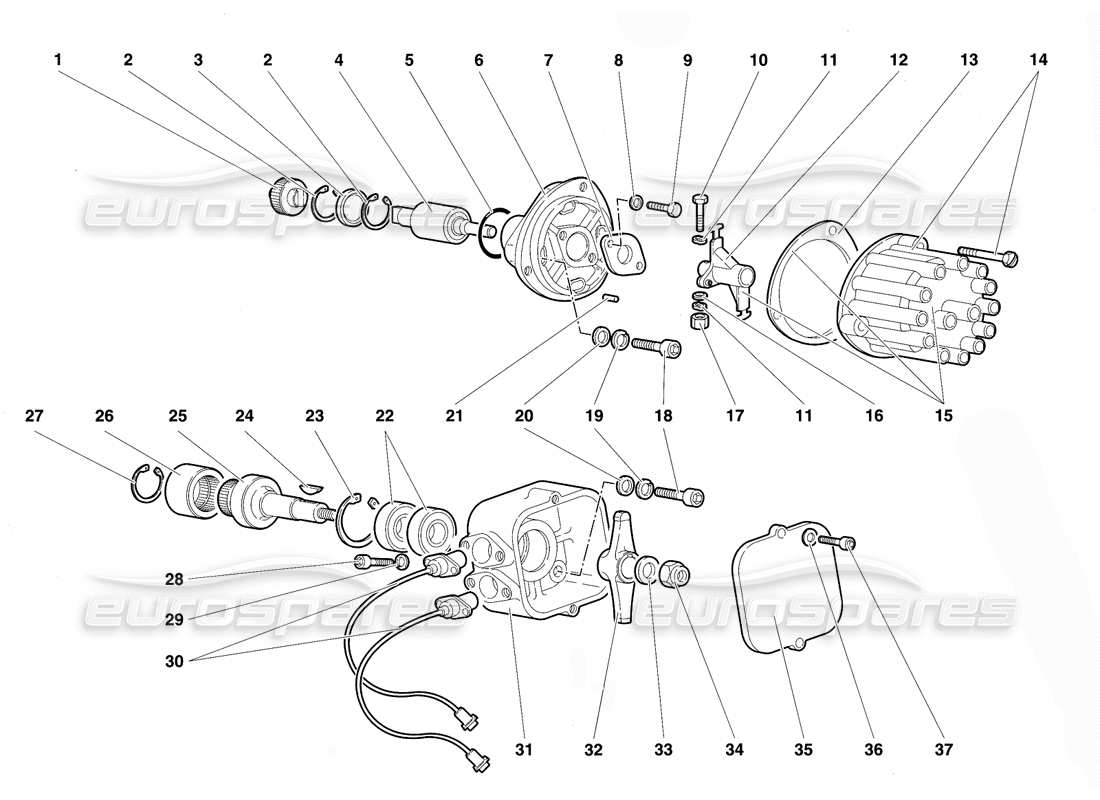

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 001625447
          COUPLING
          GIUNTO
          from £166.24
          from £166.24
          SPARK DISTRIBUTION DRIVE Genuine Lamborghini - New (to order)
          # 002
          MPN: 008573202
          RETAINER RING
          ANELLO RITEGNO
          from £3.48
          from £3.48
          O-RING I 30 UNI 3654 Genuine Lamborghini - New (to order)
          # 003
          MPN: 07L103051
          SEAL
          from £21.80
          from £21.80
          SEAL Genuine Lamborghini - New In stock
          # 004
          MPN: 001625446
          BEARING
          ALBERO CUSCINETTO
          from £121.88
          from £121.88
          SPARK DISTRIBUTOR CAP RADIAL B EARING Genuine Lamborghini - New (to order)
          # 004
          MPN: 07M905381
          TIMING SENSOR
          (replaces: 001625411)
          from £393.41
          from £393.41
          This part replaces part number 001628403
          SENSOR SEN 8 D Genuine Lamborghini - New (to order)
          # 005
          MPN: 008604601
          SEAL
          ANELLO TENUTA
          from £1.81
          from £1.81
          RING 46 MM OR Genuine Lamborghini - New In stock
          # 006
          MPN: 001625303
          FLANGE
          SUPP. DISTRIBUZ.
          from £533.95
          from £533.95
          DISTRIBUTOR CAP BRACKET Genuine Lamborghini - New (to order)
          # 007
          MPN: 001629805
          PLATE
          LAMIERINO
          from £13.85
          from £13.85
          SHEET Genuine Lamborghini - New In stock
          # 008
          MPN: 008410502
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 009
          MPN: 008100508
          SCREW
          VITE
          from £3.65
          from £3.65
          SCREW M5X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
          # 010
          MPN: 008100516
          SCREW
          VITE
          from £3.48
          from £3.48
          SCREW M5X0.8X25 20081/062 ORI GINALE M Genuine Lamborghini - New (to order)
          # 011
          MPN: 008410503
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 012
          MPN: 001627730
          ROTOR ARM
          from £203.40
          from £203.40

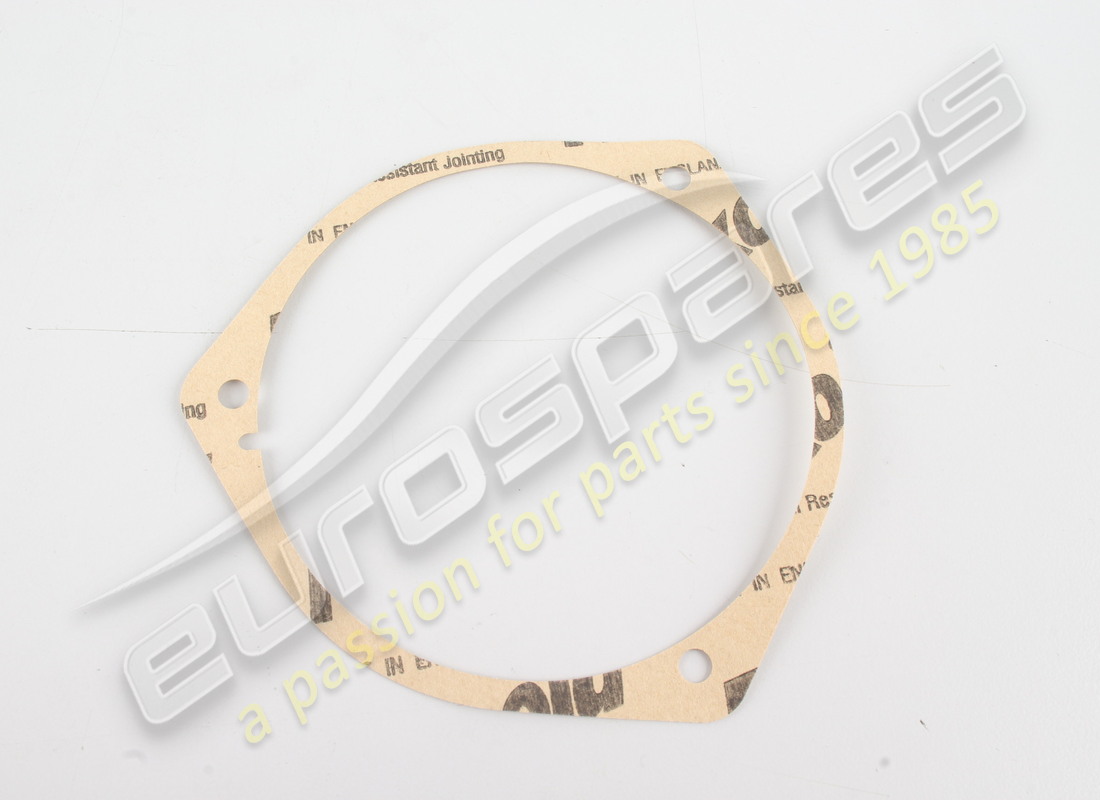

          ROTATING BRUSH (001627730) Eurospares Approved Part - New In stock
          ROTATING BRUSH Genuine Lamborghini - New (to order)
          # 013
          MPN: 001627729
          GASKET
          Guarnizione
          from £9.66
          from £9.66
          SEAL Genuine Lamborghini - New In stock
          # 014
          MPN: 001627728
          DISTRIBUTOR CAP
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 015
          MPN: 001625445
          IGNITION DISTRIB
          DISTRIBUTORE ACCENSIONE
          from £1,629.86
          from £1,629.86
          SPARK DISTRIBUTOR Genuine Lamborghini - New (to order)
          # 016
          MPN: 008400507
          WASHER
          RONDELLA
          WASHER Genuine Lamborghini - New (to order)
          # 017
          MPN: 008200509
          NUT
          DADO
          NUT Genuine Lamborghini - New (to order)
          # 018
          MPN: 008700608
          SCREW
          VITE
          from £0.51
          from £0.51
          SCREW 6X40 UNI 5931/8G/Z Genuine Lamborghini - New In stock
          # 019
          MPN: 008410603
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 020
          MPN: 008400606
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 021
          MPN: 008850201
          DOWEL
          GRAND
          from £32.07
          from £32.07
          PIN UNI 1707H11 Z.5X8 Genuine Lamborghini - New In stock
          # 022
          MPN: 410109264
          BEARING
          CUSCINETTO
          from £17.08
          from £17.08
          This part replaces part number 008501501 - and 2 more. Click to view details
          BEARING Genuine Lamborghini - New In stock
          # 023
          MPN: 07M109381
          RETAINER RING
          ANELLO RITEGNO
          from £1.16
          from £1.16
          This part replaces part number 008573501 - and 1 more. Click to view details
          SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
          # 024
          MPN: 008860301
          LOCK KEY
          CHIAVETTA
          from £0.73
          from £0.73
          KEY 3X5X13 Genuine Lamborghini - New (to order)
          KEY 3X5X13 Genuine Lamborghini - New (other) In stock
          LINGUETTA
          # 025
          MPN: 001629249
          SMALL SHAFT
          ALBERINO
          from £259.52
          from £259.52
          PHONIC WHEEL SHAFT Genuine Lamborghini - New (to order)
          # 026
          MPN: 001624409
          COUPLING
          GIUNTO
          from £162.56
          from £162.56
          P.T.O. SLEEVE Genuine Lamborghini - New (to order)
          # 027
          MPN: 008573202
          RETAINER RING
          ANELLO RITEGNO
          from £3.48
          from £3.48
          O-RING I 30 UNI 3654 Genuine Lamborghini - New (to order)
          # 028
          MPN: 008700512
          SCREW
          VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 029
          MPN: 008410502
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 030
          MPN: 07M905381
          TIMING SENSOR
          from £393.41
          from £393.41
          This part replaces part number 001628403
          SENSOR SEN 8 D Genuine Lamborghini - New (to order)
          # 031
          MPN: 001629776
          CASE
          SCATOLA PICK-UP
          from £358.18
          from £358.18
          PICK-UP BRACKET Genuine Lamborghini - New (to order)
          # 032
          MPN: 001632285
          PULSE GENERATOR
          GENERATORE Dl IMPULSI
          from £223.86
          from £223.86
          TDC SENSOR BRUSH Genuine Lamborghini - New (to order)
          # 033
          MPN: 008400801
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 034
          MPN: 008200819
          NUT
          DADO
          from £3.65
          from £3.65
          8X1X8.5 UNI 7474/5S/ZC NU T Genuine Lamborghini - New (to order)
          # 035
          MPN: 001634715
          COVER
          COPERCHIO
          from £44.69
          from £44.69
          PICK-UP BRACKET COVER Genuine Lamborghini - New (to order)
          # 036
          MPN: 008410503
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 037
          MPN: 008700504
          SCREW
          VITE
          from £0.53
          from £0.53
          SCREW M5X12 UNI 59318G Genuine Lamborghini - New (to order)
