lamborghini diablo se30 (1995) engine oil pump parts diagram

15.01.00 - Engine Oil Pump

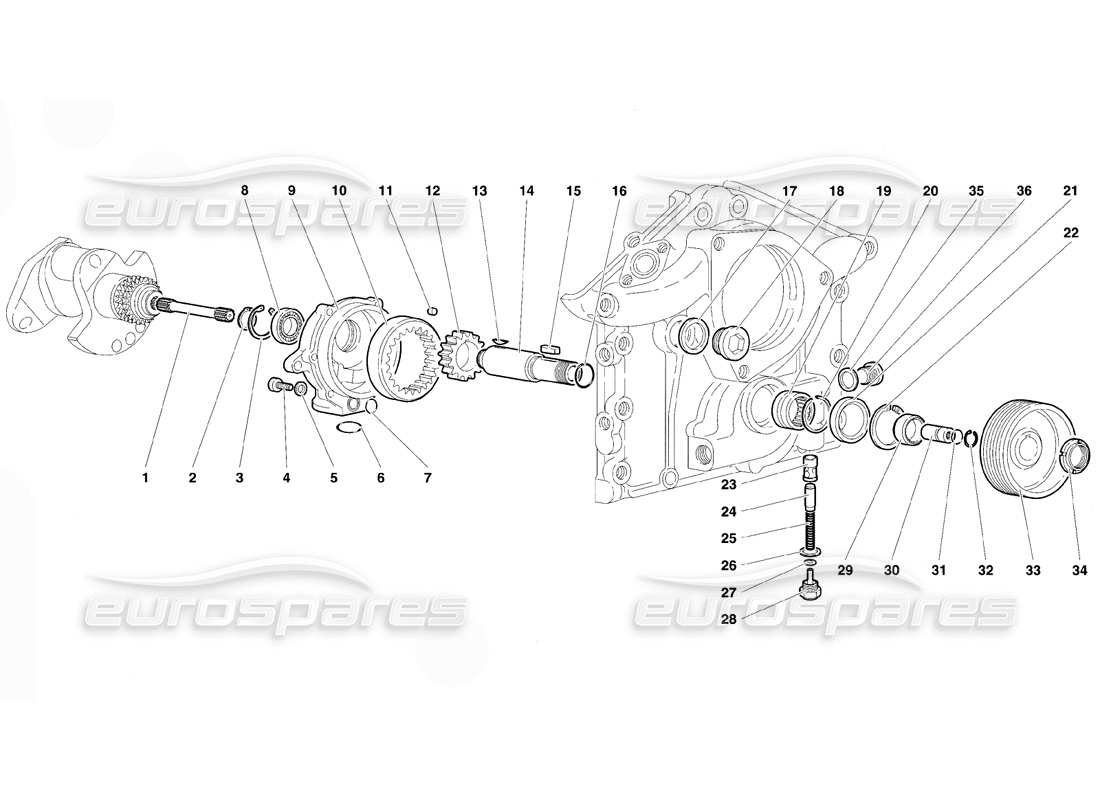

Lamborghini Diablo SE30 (1995) Engine Oil Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 001521899
SMALL SHAFT
ALBERINO
from £379.74
from £379.74
GEAR TORSION BAR FROM SHAFT Genuine Lamborghini - New (to order)
# 002
MPN: 008582501
RETAINER RING
ANELLO RITEGNO
from £3.65
from £3.65
O-RING E 25 UNI 7435-75 Genuine Lamborghini - New (to order)
# 003
MPN: 008575001
RETAINER RING
ANELLO RITEGNO
from £0.57
from £0.57
O-RING I 47 UNI 3654 Genuine Lamborghini - New In stock
# 004
MPN: 008700624
SCREW
VITE
from £0.52
from £0.52
SCREW 5931 6X1X20 8GZG Genuine Lamborghini - New In stock
# 005
MPN: 008410602
WASHER
RONDELLA
from £26.77
from £26.77
WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
# 006
MPN: 008603503
SEAL
ANELLO TENUTA
from £2.61
from £2.61
This part replaces part number 008603501
OR RING Genuine Lamborghini - New In stock
# 007
MPN: 008601705
SEAL
ANELLO TENUTA
from £0.51
from £0.51
OR RING Genuine Lamborghini - New In stock
OR RING Genuine Lamborghini - New (other) In stock
ANELLO TENUTA
# 008
MPN: 008502515
BEARING
CUSCINETTO
from £667.44
from £667.44
BEARING Genuine Lamborghini - New (to order)
# 009
MPN: 001530837
OIL PUMP COVER
COPERCHIO POMPA OLIO
from £2,076.92
from £2,076.92
OIL PUMP COVER Genuine Lamborghini - New (to order)
# 010
MPN: 001530839
DRIVEN GEAR
INGRANAGGIO CONDOTTO
from £472.10
from £472.10
IDLE GEAR Genuine Lamborghini - New (to order)
# 011
MPN: WHT003577
DOWEL
GRAND
from £1.27
from £1.27
REFERENCE PIN 6H6X16C40 Genuine Lamborghini - New In stock
# 012
MPN: 001532497
GEAR
INGRANAGGIO CONDUTTORE
from £597.47
from £597.47
OIL PUMP IDLE GEAR Genuine Lamborghini - New (to order)
# 013
MPN: 008860508
LOCK KEY
CHIAVETTA
from £1.16
from £1.16
KEY UNIM 99 5X6.5 I N C40 Genuine Lamborghini - New In stock
# 014
MPN: 001531819
SHAFT
ALBERO
from £459.13
from £459.13
OIL SEAL RACE Genuine Lamborghini - New (to order)
# 015
MPN: 008860808
Key
LINGUETTA
from £0.53
from £0.53
TAB 8X7X22 UNIM 92 C40/B Genuine Lamborghini - New (to order)
# 016
MPN: 008602603
SEAL
ANELLO TENUTA
from £0.54
from £0.54
RING 27 MM OR Genuine Lamborghini - New In stock
# 017
MPN: 008403006
WASHER
RONDELLA
from £6.39
from £6.39
COPPER WASHER 30X40X0,04513888 8889 Genuine Lamborghini - New In stock
# 018
MPN: 008933002
PLUG
TAPPO
from £22.40
from £22.40
PLUG Genuine Lamborghini - New (to order)
# 019
MPN: 008523513
BEARING
CUSCINETTO
from £15.25
from £15.25
CODE 300207200 Genuine Lamborghini - New (to order)
# 020
MPN: 008574502
RETAINER RING
ANELLO RITEGNO
from £6.18
from £6.18
O-RING RING Genuine Lamborghini - New (to order)
# 021
MPN: 008613507
SEAL
ANELLO TENUTA
from £3.94
from £3.94
OIL SEAL 35X50X7 MM Genuine Lamborghini - New (to order)
# 022
MPN: 008575000
RETAINER RING
ANELLO RITEGNO
from £0.57
from £0.57
O-RING I 50 UNI 3654 Genuine Lamborghini - New (to order)
# 023
MPN: 001228118
BUSHING
BUSSOLA
from £70.81
from £70.81
PLUNGER SLEEVE Genuine Lamborghini - New (to order)
# 024
MPN: 001526871
PLUNGER
PISTONCINO
from £27.28
from £27.28
LOCK PIN Genuine Lamborghini - New (to order)
# 025
MPN: 001519888
SPRING
MOLLA
from £15.72
from £15.72
LOCK PIN SPRING Genuine Lamborghini - New (to order)
# 026
MPN: 008402604
WASHER
RONDELLA
from £2.32
from £2.32
COPPER WASHER 26.25X35X1.5 Genuine Lamborghini - New In stock
# 027
MPN: 001524378
SPACER
DISTANZIALE
from £20.23
from £20.23
PLUG OIL PRESSURE ADJUSTMENT S HIM Genuine Lamborghini - New (to order)
# 028
MPN: 001524375
PLUG
TAPPO
from £40.46
from £40.46
SPINDLE & CAP ASSEMBLY Genuine Lamborghini - New (to order)
# 029
MPN: 001531818
SUPPORT
SUPPORTO
from £261.17
from £261.17
OIL SEAL RACE Genuine Lamborghini - New (to order)
# 030
MPN: 001525193
SPACER
DISTANZIALE
from £65.25
from £65.25
TORSION BAR DAMPER SHIM Genuine Lamborghini - New (to order)
# 031
MPN: 008601301
SEAL
ANELLO TENUTA
from £1.12
from £1.12
RING 13 MM OR Genuine Lamborghini - New In stock
# 032
MPN: 008571901
RETAINER RING
ANELLO RITEGNO
from £3.65
from £3.65
O-RING I 19 UNI 3654 Genuine Lamborghini - New (to order)
# 033
MPN: 001525032
PULLEY
PULEGGIA
from £762.62
from £762.62
ACCESSORY DRIVE PULLEY Genuine Lamborghini - New (to order)
# 034
MPN: 008253001
PLUG
GHIERA
from £37.40
from £37.40
M30X1.5X44 RING NUT Genuine Lamborghini - New (to order)
# 035
MPN: 008401621
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 036
MPN: 008931607
PLUG
TAPPO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
