lamborghini diablo roadster (1998) pedals (valid for uk 1998) parts diagram

74.42.01.00 - Pedals (Valid for UK 1998)

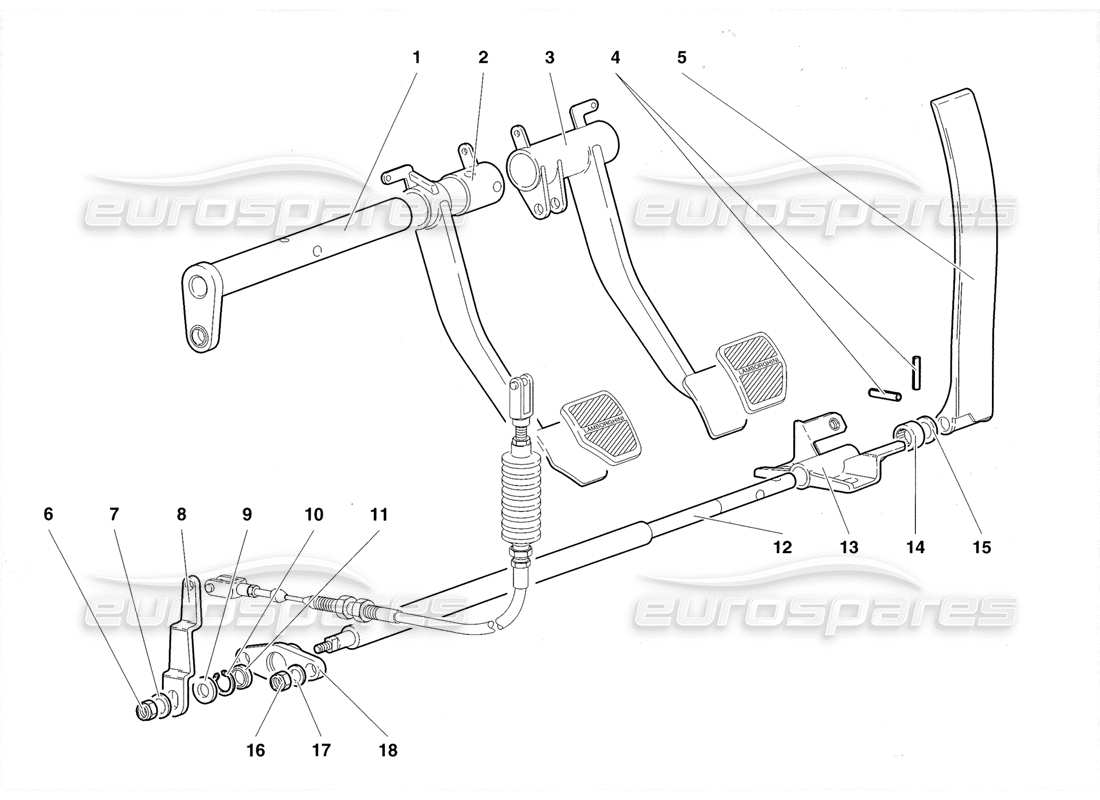

Lamborghini Diablo Roadster (1998) Pedals (Valid for UK 1998) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004229950
SHAFT
(Valid for U.K.1998) ALBERO
# 002
MPN: 004235589
PEDAL
(Valid for U.K.1998) PEDALE FRIZIONE
from £245.42
from £245.42
# 003
MPN: 004232778
PEDAL
(Valid for U.K.1998) PEDALE FRENO
from £245.42
from £245.42
# 004
MPN: 008900401
PIN
(Valid for U.K.1998) SPINA
from £0.53
from £0.53
# 005
MPN: 004232294
PEDAL
(Valid for U.K.1998) PEDALE ACCELERATORE
from £152.15
from £152.15
# 006
MPN: 008200804
NUT
(Valid for U.K.1998) DADO
from £0.74
from £0.74
# 007
MPN: 008400816
WASHER
(Valid for U.K.1998) RONDELLA
Supersession
Supersession
# 008
MPN: 004238042
LEVER
(Valid for U.K.1998) LEVA
from £21.44
from £21.44
# 009
MPN: 004232286
SPACER
(Valid for U.K.1998) DISTANZIALE
from £10.12
from £10.12
# 010
MPN: 008572202
RETAINER RING
(Valid for U.K.1998) ANELLO RITEGNO
from £0.75
from £0.75
# 011
MPN: 004232299
JOINT
(Valid for U.K.1998) SNODO
from £23.88
from £23.88
# 012
MPN: 004232298
SHAFT
(Valid for U.K.1998) ALBERO
from £312.59
from £312.59
# 013
MPN: 004232827
SUPPORT
(Valid for U.K.1998) SUPPORTO
from £79.94
from £79.94
# 014
MPN: 008521206
BEARING
(Valid for U.K.1998) CUSCINETTO
from £9.66
from £9.66
# 015
MPN: 008401215
WASHER
(Valid for U.K.1998) RONDELLA
from £7.26
from £7.26
# 016
MPN: N02214812
NUT
(Valid for U.K.1998) DADO
from £1.10
from £1.10
This part replaces part number 008200612
# 017
MPN: 008400606
WASHER
(Valid for U.K.1998) RONDELLA
Supersession
Supersession
# 018
MPN: 004232257
SUPPORT
(Valid for U.K.1998) SUPPORTO
from £216.40
from £216.40
