lamborghini diablo roadster (1998) doors parts diagram

72.03.00 - Doors

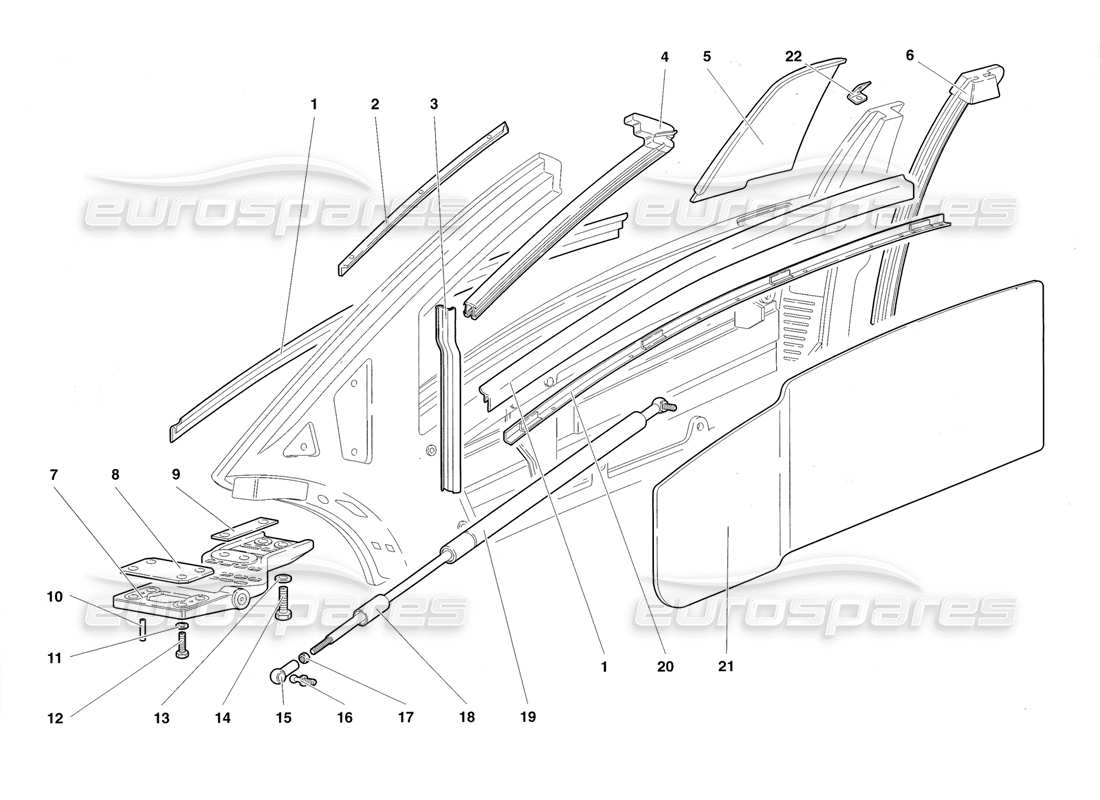

Lamborghini Diablo Roadster (1998) Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009421700
GASKET GLAS
GUARNIZIONE VETRO
from £515.33
from £515.33
# 002
MPN: 009921506
RIGHT ANGLE PIECE
RIGHT CORNER
from £81.59
from £81.59
# 002
MPN: 009921507
LEFT ANGLE PIECE
ANGOLARE SX
from £39.30
from £39.30
# 003
MPN: 009921714
GASKET GLAS
GUARNIZIONE VETRO
from £62.69
from £62.69
# 004
MPN: 0072001683
RIGHT GASKET GLAS
RIGHT GLASS SEAL
from £182.83
from £182.83
# 004
MPN: 0072001686
LEFT GASKET GLAS
GUARNIZIONE VETRO SX
from £553.38
from £553.38
# 005
MPN: 009921118
PANEL
PANNELLO DX
from £261.17
from £261.17
# 005
MPN: 009921119
PANEL
PANNELLO SX
from £272.37
from £272.37
# 006
MPN: 009921717
GASKET
REAR UPRIGHT SEAL. DX
from £169.14
from £169.14
# 006
MPN: 009921718
GASKET
GUARNIZIONE MONTANTE POST. SX
from £169.14
from £169.14
# 007
MPN: 009421030
LEFT HINGE
CERNIERASX
from £1,203.87
from £1,203.87
# 007
MPN: 410831402
RIGHT HINGE
CERNIERADX
from £699.50
from £699.50
This part replaces part number 009421359
# 008
MPN: 004132051
SHIM
SPESSOREO,8MM
Supersession
Supersession
# 008
MPN: 004132052
SHIM
SPESSORE 1 MM
Supersession
Supersession
# 008
MPN: 004132053
SHIM
SPESSORE 1,2 MM
Supersession
Supersession
# 008
MPN: 004132054
SHIM
SPESSORE 1,5 MM
Supersession
Supersession
# 009
MPN: 009421380
SHIM
SPESSORE 1 MM
Supersession
Supersession
# 009
MPN: 009421381
SHIM
SPESSORE 1,5 MM
from £17.75
from £17.75
# 010
MPN: 008900401
PIN
SPINA
from £0.53
from £0.53
# 011
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 012
MPN: 008100821
SCREW
VITE
Supersession
Supersession
# 013
MPN: 008411015
WASHER
RONDELLA
from £7.05
from £7.05
# 014
MPN: 008101008
SCREW
VITE
from £9.69
from £9.69
# 015
MPN: 410837262
COUPLING
TESTA A SNODO
from £5.45
from £5.45
# 016
MPN: 009421384
PIN
PERNO
# 017
MPN: 008200801
NUT
DADO
Supersession
Supersession
# 018
MPN: 009421385
LINER
GUAINA
# 019
MPN: 009421382

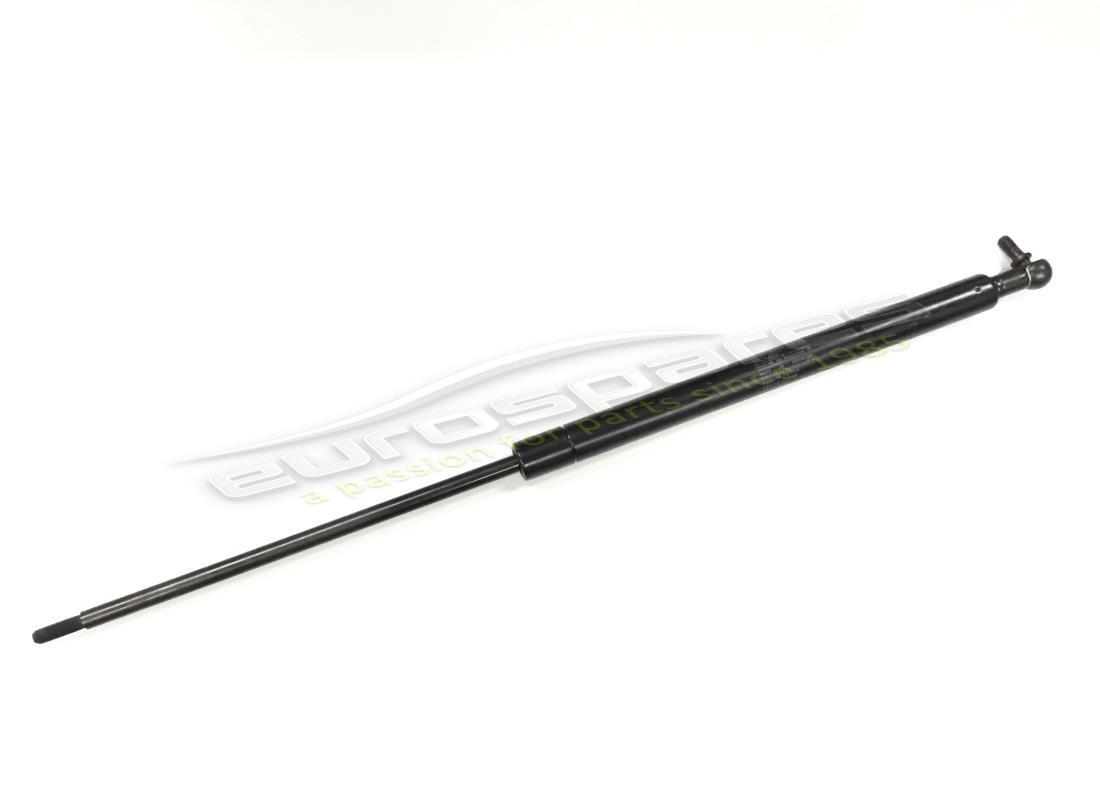

DOOR STRUT
MOLLA A GAS COMPLETA
from £44.18
from £44.18
# 020
MPN: 009921707
RIGHT CHANNEL
PROFILATO DX
from £375.60
from £375.60
# 020
MPN: 009921708
LEFT CHANNEL
PROFILATO SX
from £49.17
from £49.17
# 021
MPN: 009421535
SHIELD
PROTEZIONE
from £25.55
from £25.55
# 022
MPN: 009963103
BRACKET
STAFFA
from £10.90
from £10.90
