52.02.00 - Rear Suspension

Lamborghini Diablo Roadster (1998) Rear Suspension Parts Diagram

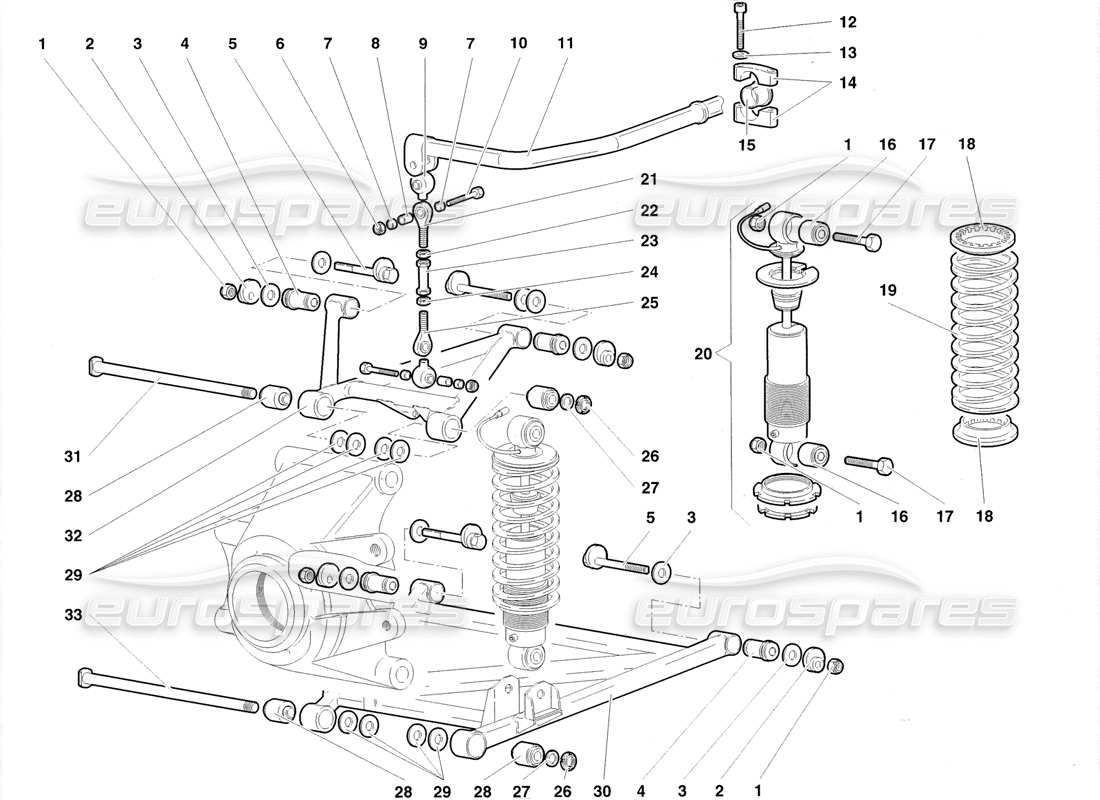

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: WHT003355

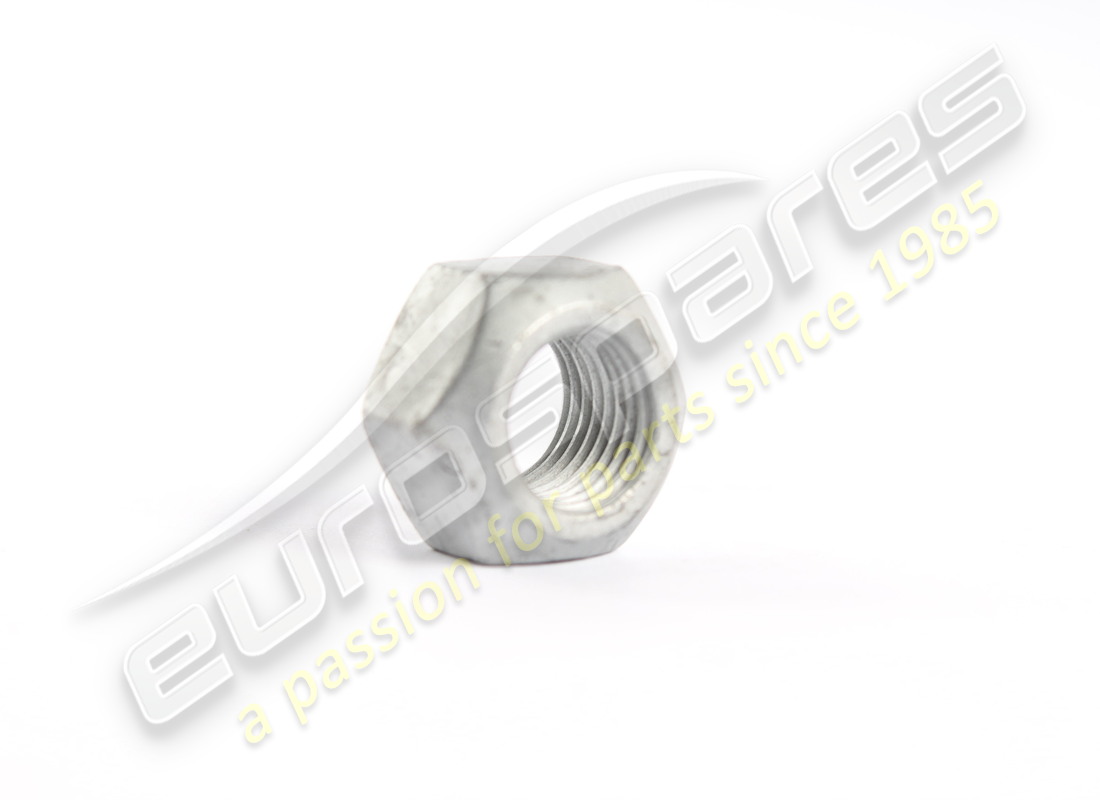

      NUT
      DADO
      from £13.28
      from £13.28
      # 002
      MPN: 410407127A
      BOLT
      ECCENTRICO
      from £608.71
      from £608.71
      This part replaces part number 005231923
      # 003
      MPN: 005133488
      SHIM
      SPESSORE 1,5 MM
      Supersession
      Supersession
      # 003
      MPN: 410407295
      SHIM
      SPESSORE 1 MM
      from £2.73
      from £2.73
      # 003
      MPN: 410407295B
      SHIM
      SPESSORE 2 MM
      from £2.39
      from £2.39
      # 003
      MPN: 410407295C
      SHIM
      SPESSORE 2,5 MM
      from £2.64
      from £2.64
      # 003
      MPN: 410407295D
      SHIM
      SPESSORE 3 MM
      from £17.99
      from £17.99
      # 004
      MPN: 008921206

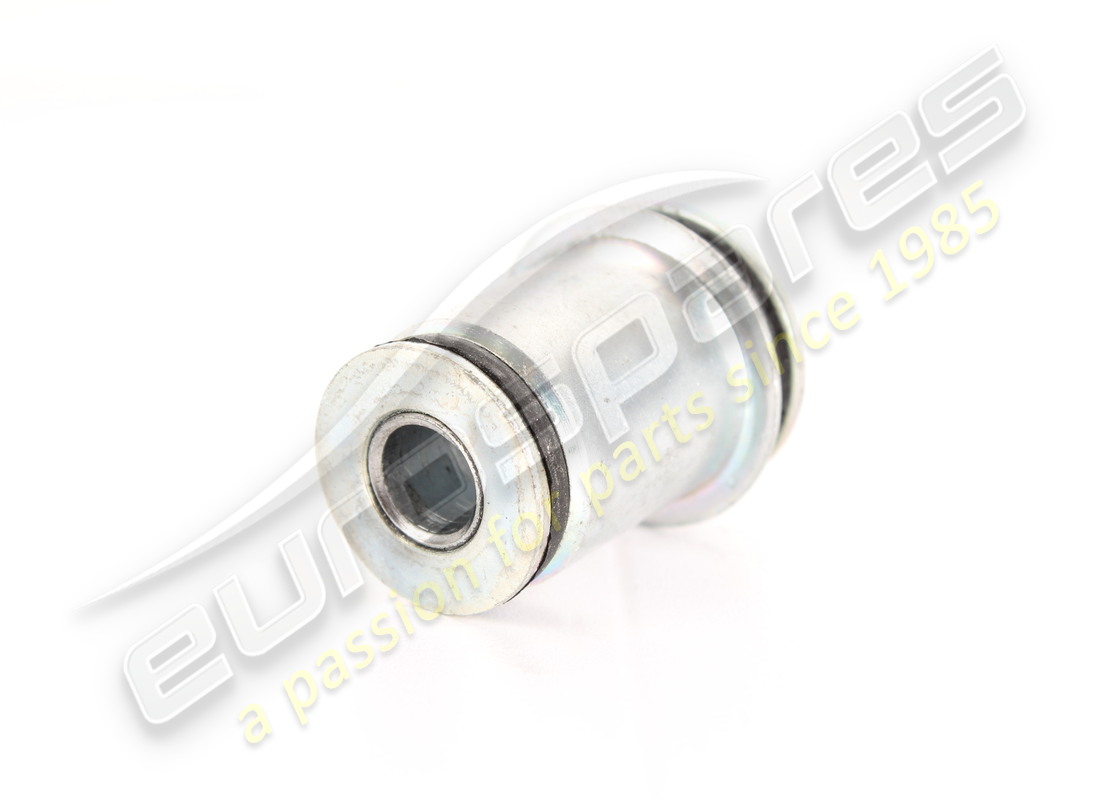

      RESILIENT BUSHING
      BOCCOLA ELASTICA
      from £29.93
      from £29.93
      # 005
      MPN: 410407127A
      BOLT
      PERNO CON ECCENTRICO
      from £608.71
      from £608.71
      This part replaces part number 005231923
      # 006
      MPN: 008200809
      NUT
      DADO
      Supersession
      Supersession
      # 007
      MPN: 005227297

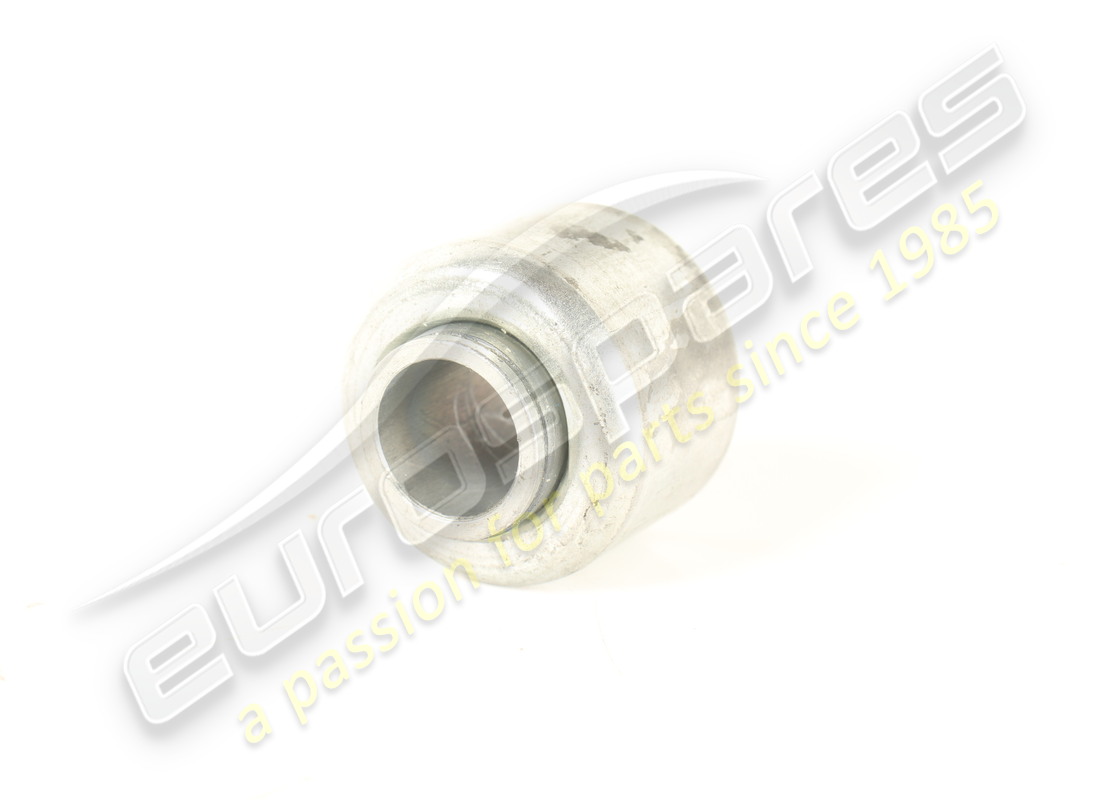

      BUSHING
      BOCCOLA
      from £18.21
      from £18.21
      # 008
      MPN: 005227298
      BUSHING
      BOCCOLA
      from £11.08
      from £11.08
      # 009
      MPN: 005109714
      BOOT
      CUFFIA
      from £16.55
      from £16.55
      # 010
      MPN: 008100807
      SCREW
      VITE
      from £0.51
      from £0.51
      # 011
      MPN: 005234393
      TORSION BAR
      BARRATORSIONE
      from £2,168.12
      from £2,168.12
      # 012
      MPN: WHT002960
      SCREW
      VITE
      from £5.31
      from £5.31
      # 013
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.28
      from £28.28
      # 014
      MPN: 005230258
      RETAINER
      CAVALLOTTO
      from £195.68
      from £195.68
      # 015
      MPN: 005238302
      BUSHING
      BOCCOLA
      from £88.31
      from £88.31
      This part replaces part number 005230804
      # 016
      MPN: 410512383
      RESILIENT BUSHING
      from £356.24
      from £356.24
      # 017
      MPN: 008101269
      SCREW
      VITE
      Supersession
      Supersession
      # 018
      MPN: 410512385
      RUBBER RING
      from £32.34
      from £32.34
      # 019
      MPN: 005226157
      SPRING
      MOLLA
      from £239.61
      from £239.61
      # 020
      MPN: 005233166
      SHOCK ABSORBER (LIFTING SYSTEM)
      use part number 0R1320014 kit
      from £3,426.33
      from £3,426.33
      # 020
      MPN: 0R1320014
      FRONT & REAR SHOCK ABSORBER KIT
      Includes 2x Front & 4x Rear
      from £5,849.37
      from £5,849.37
      # 021
      MPN: 417801931A

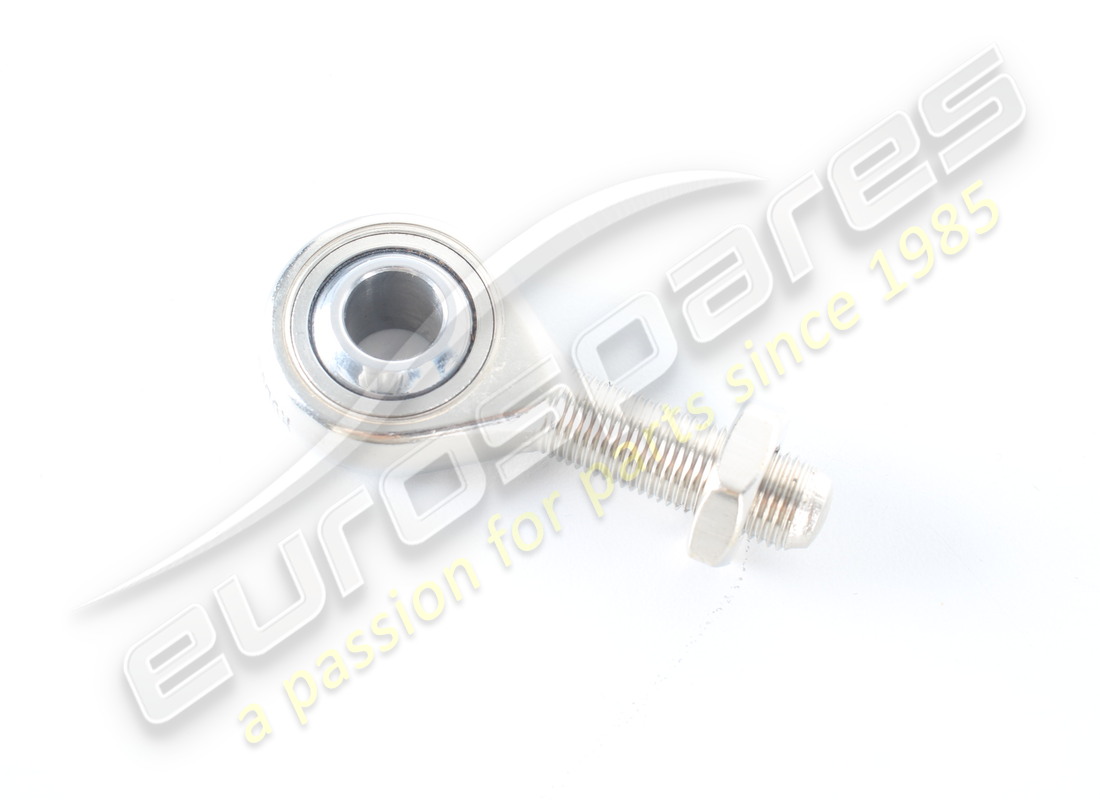

      BALL JOINT
      GIUNTO SFERICO
      from £160.39
      from £160.39
      This part replaces part number 005206963 - and 1 more. Click to view details
      # 022
      MPN: 008201034
      NUT
      DADO
      Supersession
      Supersession
      # 023
      MPN: 005209770
      TIE ROD
      TIRANTE
      from £71.89
      from £71.89
      # 024
      MPN: 008201035
      NUT
      DADO
      from £0.91
      from £0.91
      # 025
      MPN: 005227295
      BALL JOINT
      GIUNTO SFERICO
      from £72.47
      from £72.47
      # 026
      MPN: 008251702
      PLUG
      GHIERA
      from £2.41
      from £2.41
      This part replaces part number 008251701
      # 027
      MPN: 008401708
      WASHER
      RONDELLA
      from £1.58
      from £1.58
      # 028
      MPN: 005225207
      RESILIENT BUSHING
      BOCCOLA ELASTICA
      from £128.20
      from £128.20
      # 029
      MPN: 008401710
      WASHER
      RONDELLA
      from £26.12
      from £26.12
      # 030
      MPN: 005225906
      ARM
      BRACCIO INFERIORE DX
      from £1,119.71
      from £1,119.71
      # 030
      MPN: 005225907
      ARM
      BRACCIO INFERIORE SX
      from £1,111.07
      from £1,111.07
      # 031
      MPN: 005225204
      PIN
      PERNO
      from £57.79
      from £57.79
      # 032
      MPN: 005225908
      RH UPPER SUSPENSION ARM
      from £1,344.52
      from £1,344.52
      # 032
      MPN: 005225909
      ARM
      BRACCIO SUPERIORE SX
      from £1,539.06
      from £1,539.06
      # 033
      MPN: 005225205
      PIN
      PERNO
      from £57.79
      from £57.79
