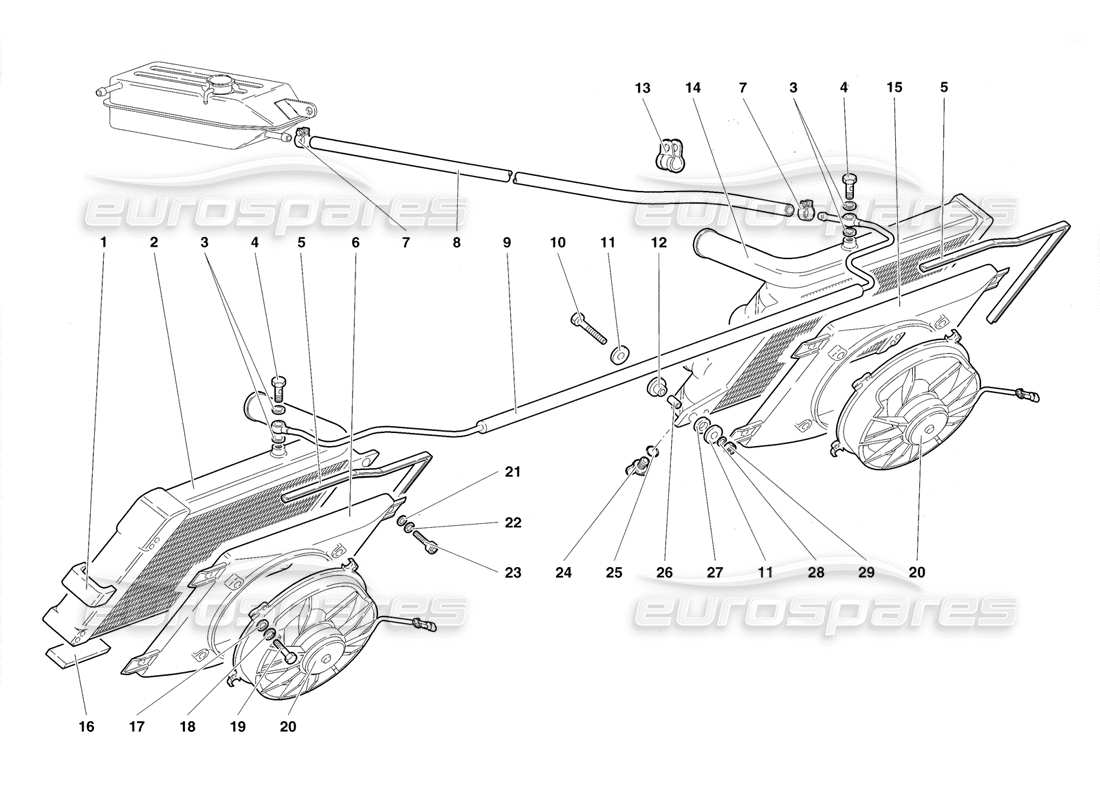

17.03.00 - Radiators and Electro-Fans
Lamborghini Diablo Roadster (1998) Radiators and Electro-Fans Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001733004
SHIELD
PROTEZIONE
from £13.61
from £13.61
# 002
MPN: 001737087
LEFT RADIATOR
RADIATORE SX
from £1,763.87
from £1,763.87
# 003
MPN: 008400818
WASHER
RONDELLA
Supersession
Supersession
# 004
MPN: WHT000524
VENT SCREW
from £14.96
from £14.96
This part replaces part number 001733423
# 005
MPN: 410121539
GASKET
Guarnizione
from £35.11
from £35.11
# 006
MPN: 410121333
LEFT CONVEYOR
CONVOGLIATORE SX
Supersession
Supersession
# 007
MPN: 008830817
STRAP
FASCETTA
Supersession
Supersession
# 008
MPN: 001737090
PIPE
Tubo
from £13.40
from £13.40
# 009
MPN: 001737089
VENT PIPE
TUBO Dl SFIATO
from £105.72
from £105.72
# 010
MPN: 008100824
SCREW
VITE
from £0.89
from £0.89
# 011
MPN: WHT001942
WASHER
RONDELLA
from £2.06
from £2.06
# 012
MPN: 001733266
RUBBER BUSHING
BOCCOLA GOMMA
from £4.20
from £4.20
# 013
MPN: 008831515
STRAP
FASCETTA
from £5.63
from £5.63
# 014
MPN: 001737086
RIGHT RADIATOR
RADIATORE DX
from £1,686.06
from £1,686.06
# 015
MPN: 410121334A
RIGHT CONVEYOR
CONVOGLIATORE DX
from £535.00
from £535.00
# 016
MPN: 001731451
SHIELD
PROTEZIONE
from £9.25
from £9.25
# 017
MPN: WHT003040
WASHER
RONDELLA
from £4.55
from £4.55
# 018
MPN: 008410502
WASHER
RONDELLA
Supersession
Supersession
# 019
MPN: 008100502
SCREW
VITE
from £0.51
from £0.51
# 020
MPN: 0017017063
ELECTROFAN
ELETTROVENTILATORE
from £225.53
from £225.53
This part replaces part number 001734039
# 021
MPN: WHT002961
WASHER
RONDELLA
from £0.51
from £0.51
This part replaces part number 008400607
# 022
MPN: 008410611
WASHER
RONDELLA
from £0.51
from £0.51
# 023
MPN: 008700614
SCREW
VITE
Supersession
Supersession
# 024
MPN: 410121299
PLUG
TAPPO
from £140.51
from £140.51
# 025
MPN: 008600901
SEAL
use : WHT003058
Supersession
Supersession
# 026
MPN: 001733267
BUSHING
BOCCOLA
from £7.26
from £7.26
# 027
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 028
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 029
MPN: 008200804
NUT
DADO
from £0.71
from £0.71
