17.02.00 - Water Cooling System

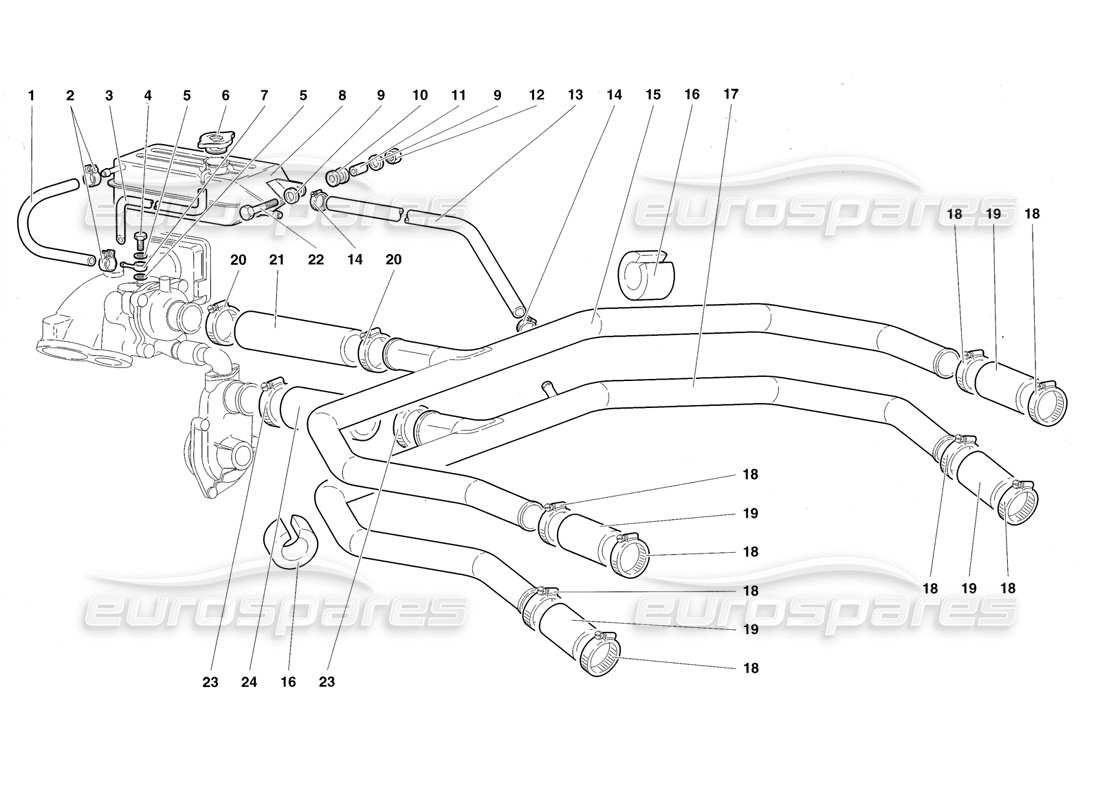

Lamborghini Diablo Roadster (1998) Water Cooling System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001735264
PIPE
Tubo
from £10.49
from £10.49
# 002
MPN: 008830817
STRAP
FASCETTA
Supersession
Supersession
# 003
MPN: 001731993
PIPE
Tubo
from £8.42
from £8.42
# 004
MPN: WHT000524
VENT SCREW
from £14.96
from £14.96
This part replaces part number 001733423
# 005
MPN: 008400818
WASHER
RONDELLA
Supersession
Supersession
# 006
MPN: 001734185
TANK CAP
TAPPO SERBATOIO
from £78.17
from £78.17
# 007
MPN: 001733714
CONNECTION
RACCORDO
from £17.54
from £17.54
# 008
MPN: 001733712
W/W RESERVOIR
SERBATOIO
from £551.78
from £551.78
# 009
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 010
MPN: 008610903
RUBBER BUSHING
BOCCOLA GOMMA
from £9.91
from £9.91
# 011
MPN: 008800602
BUSHING
BOCCOLA
from £20.28
from £20.28
# 012
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 013
MPN: 001737088
PIPE
Tubo
from £47.76
from £47.76
# 014
MPN: 008831524
STRAP
FASCETTA
# 015
MPN: 001735106
PIPE
Tubo
from £111.94
from £111.94
# 016
MPN: 07L121199
SHIELD
PROTEZIONE
from £12.11
from £12.11
This part replaces part number 001732057
# 017
MPN: 0017001314
PIPE
Tubo
from £99.75
from £99.75
# 018
MPN: 008833001
STRAP
FASCETTA
Supersession
Supersession
# 019
MPN: 07M121074
PIPE
Tubo
from £20.28
from £20.28
# 020
MPN: 008833802
STRAP
FASCETTA
Supersession
Supersession
# 021
MPN: 001732812
PIPE
Tubo
from £69.79
from £69.79
# 022
MPN: 008100623
SCREW
VITE
Supersession
Supersession
# 023
MPN: 008834501
STRAP
FASCETTA
Supersession
Supersession
# 024
MPN: 07M121057
PIPE
from £46.88
from £46.88
