16.02.00 - Electrical Components

Lamborghini Diablo Roadster (1998) Electrical Components Parts Diagram

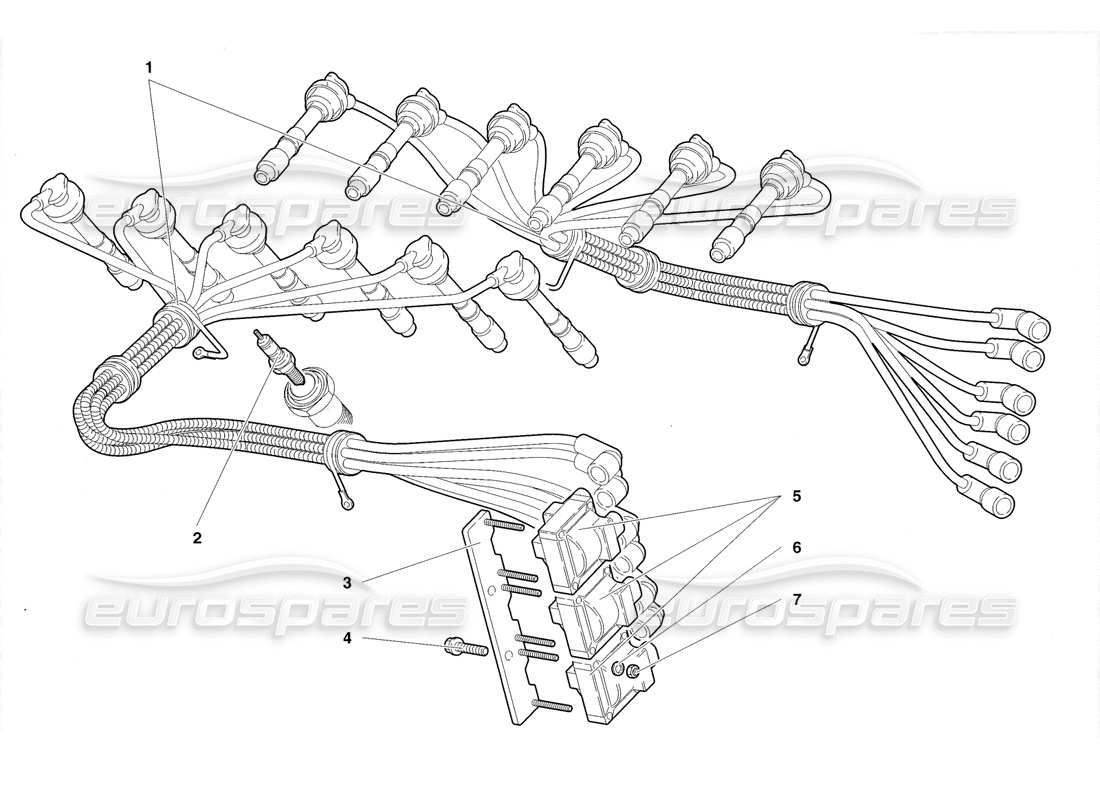

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006137110
SPARK PLUG CABLE
CAVI CAN DELE
from £1,572.64
from £1,572.64
# 001
MPN: LHT007
COMPLETE HT LEADS SET
(006137110)
# 002
MPN: 001630289
SPARK PLUG
Alternative USE 174954
from £14.85
from £14.85
# 003
MPN: 001637122
SUPPORT
SUPPORTO
from £103.65
from £103.65
# 004
MPN: N10718801
SCREW
VITE
from £0.59
from £0.59
# 005
MPN: 0016004528
COIL
BOBINA
from £41.21
from £41.21
# 006
MPN: 008400401
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: WHT002959
NUT
DADO
from £0.53
from £0.53
