lamborghini diablo roadster (1998) crankgears parts diagram

14.01.00 - crankgears

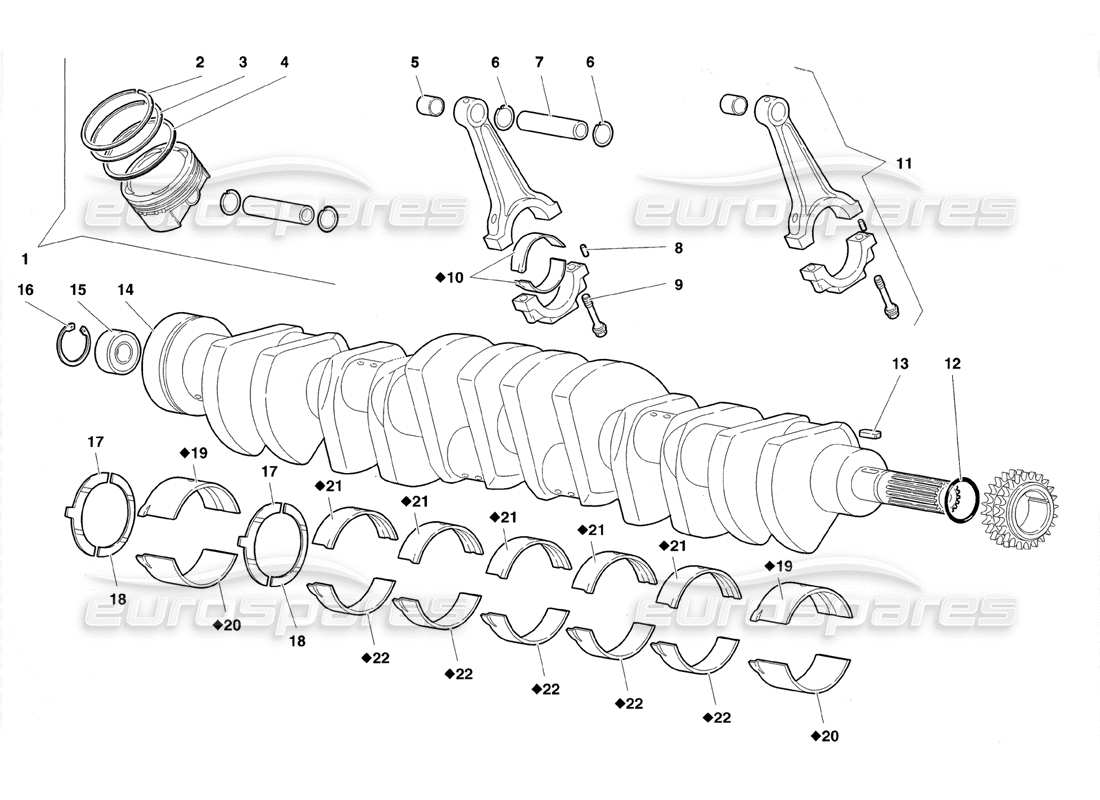

Lamborghini Diablo Roadster (1998) Crankgears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 001434827
        PISTON
        PISTONE COMPLETO
        from £271.95
        from £271.95
        PISTON UNIT Genuine Lamborghini - New (to order)
        # 002
        MPN: 07M107311
        PISTON RING
        SEGMENTO
        from £206.22
        from £206.22
        RING Genuine Lamborghini - New In stock
        # 003
        MPN: 07M107313
        PISTON RING
        SEGMENTO
        from £206.22
        from £206.22
        INTERMEDIATE RING Genuine Lamborghini - New (to order)
        # 004
        MPN: 07M107321
        PISTON RING
        SEGMENTO
        from £543.01
        from £543.01
        OIL SCRAPER Genuine Lamborghini - New (to order)
        # 005
        MPN: 001430768
        BUSHING
        BOCCOLA
        from £34.95
        from £34.95
        SMALL END BUSHING Genuine Lamborghini - New (to order)
        # 006
        MPN: 001430537
        RETAINER RING
        ANELLO RITEGNO
        from £0.76
        from £0.76
        RING Genuine Lamborghini - New (to order)
        # 007
        MPN: 001430536
        PISTON PIN
        SPINOTTO
        from £235.19
        from £235.19
        PISTON PIN Genuine Lamborghini - New (to order)
        # 008
        MPN: 008900308
        DOWEL
        GRANO
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 009
        MPN: 001422563
        SCREW
        VITE
        from £46.01
        from £46.01
        CONNECTING ROD BOLT Genuine Lamborghini - New In stock

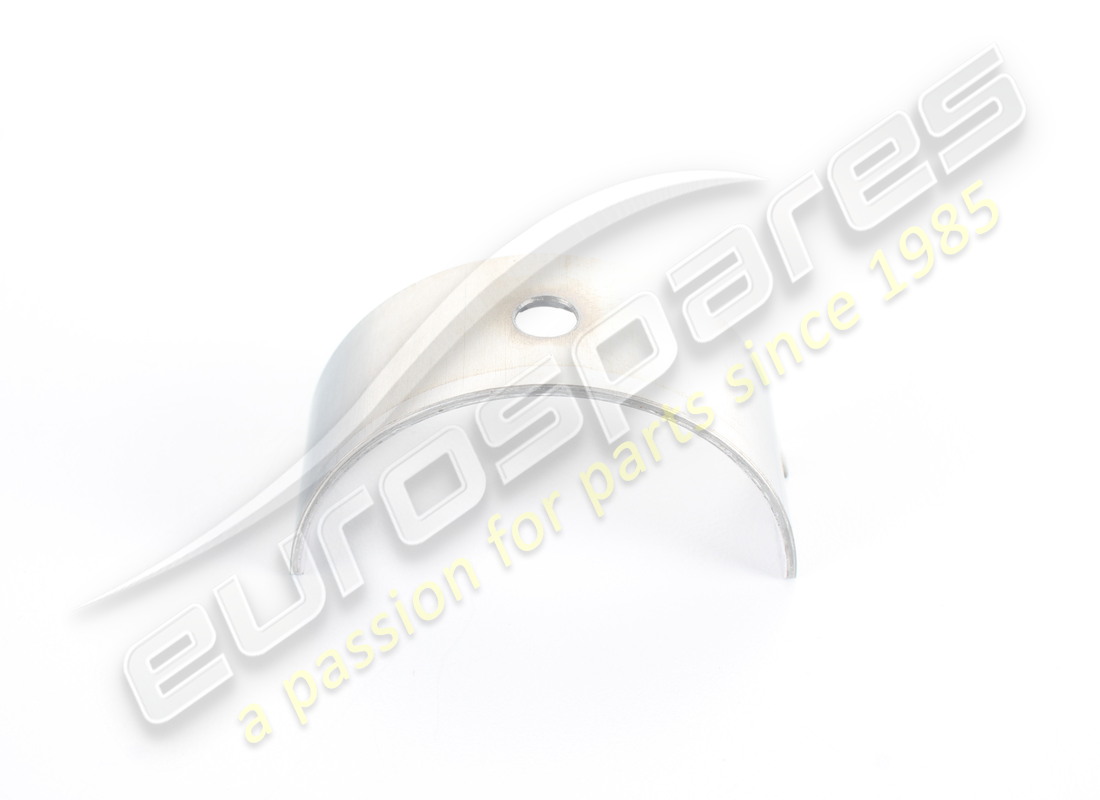

        # 010
        MPN: 07M105701
        HALF-BEARING
        BRONZINA
        from £54.90
        from £54.90
        This part replaces part number 001419907
        CONNECTING ROD BEARING SHELL Genuine Lamborghini - New In stock
        # 011
        MPN: 001429577
        CON ROD ASSY
        from £451.04
        from £451.04
        CONNECTING ROD & BOLTS/DOWELS Genuine Lamborghini - New (to order)
        # 012
        MPN: WHT003062
        SEAL
        ANELLO TENUTA
        from £3.98
        from £3.98
        This part replaces part number 008602802
        O-RING Genuine Lamborghini - New In stock
        # 014
        MPN: 423400400
        crankshaft
        MACHINED CRANKSHAFT
        from £5,115.61
        from £5,115.61
        This part replaces part number 423400200
        SV MACHINED CRANKSHAFT Genuine Lamborghini - New (to order)
        # 015
        MPN: 410109264
        BEARING
        CUSCINETTO
        from £17.08
        from £17.08
        This part replaces part number 008501501 - and 2 more. Click to view details
        BEARING Genuine Lamborghini - New (to order)
        # 016
        MPN: 07M109381
        RETAINER RING
        ANELLO RITEGNO
        from £1.16
        from £1.16
        This part replaces part number 008573501 - and 1 more. Click to view details
        SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
        # 017
        MPN: 07M105531A
        THRUST WASHER (PRICE EACH)
        from £24.43
        from £24.43
        THRUST SHIM Genuine Lamborghini - New In stock

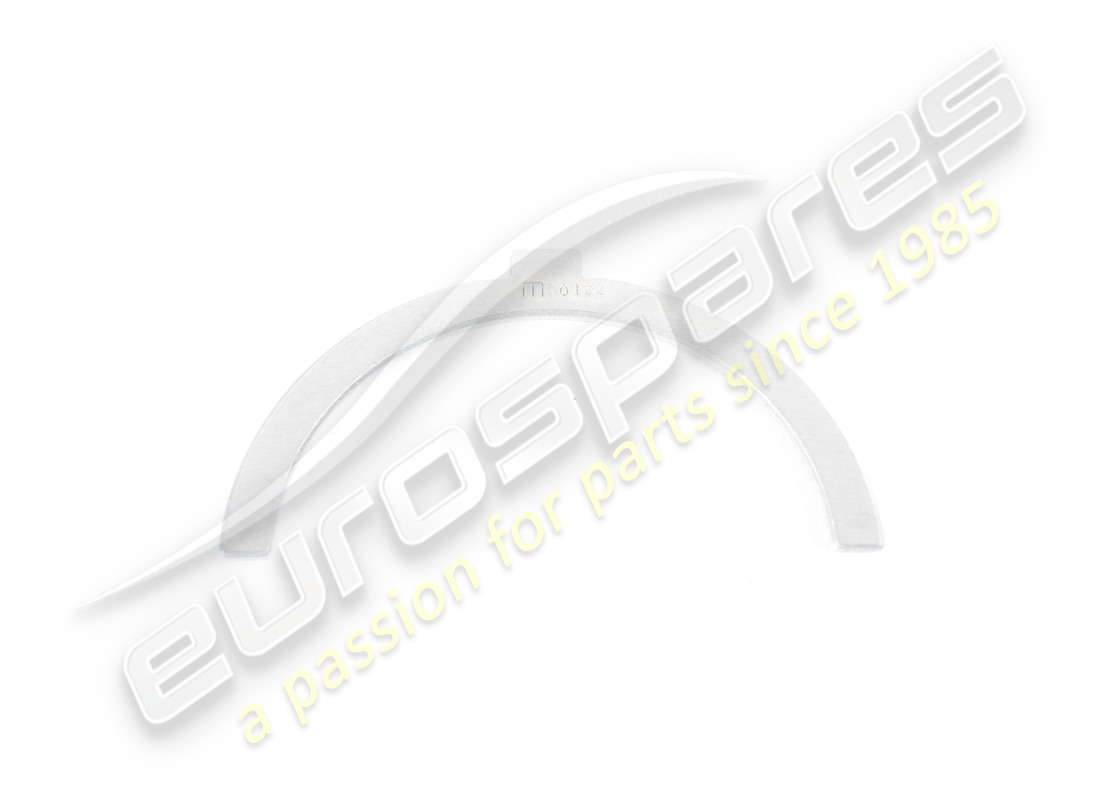

        # 018
        MPN: 07M105532
        THRUST WASHER (PRICE EACH)
        use:2x 07M105531A & 2x 07M105532
        from £196.28
        from £196.28
        THRUST SHIM Genuine Lamborghini - New In stock
        # 019
        MPN: 07M105707
        HALF-BEARING
        SEMICUSCINETTO
        from £3,575.29
        from £3,575.29
        BUSHING Genuine Lamborghini - New In stock
        # 020
        MPN: 07M105707A
        HALF-BEARING
        SEMICUSCINETTO
        from £64.51
        from £64.51
        BUSHING Genuine Lamborghini - New (to order)
        # 021
        MPN: 07M105707B
        HALF-BEARING
        SEMICUSCINETTO
        from £153.04
        from £153.04
        BUSHING Genuine Lamborghini - New (to order)
        # 022
        MPN: 07M105707C
        HALF-BEARING
        SEMICUSCINETTO
        from £62.77
        from £62.77
        BUSHING Genuine Lamborghini - New In stock
        # 023
        MPN: 001434599
        +20 MAINS & BIG END BEARINGS SET
        from £2,271.77
        from £2,271.77
        MAIN & BIG END BEARING SET +20 Genuine Lamborghini - New (to order)
