lamborghini diablo roadster (1998) air filters parts diagram

13.02.00 - Air Filters

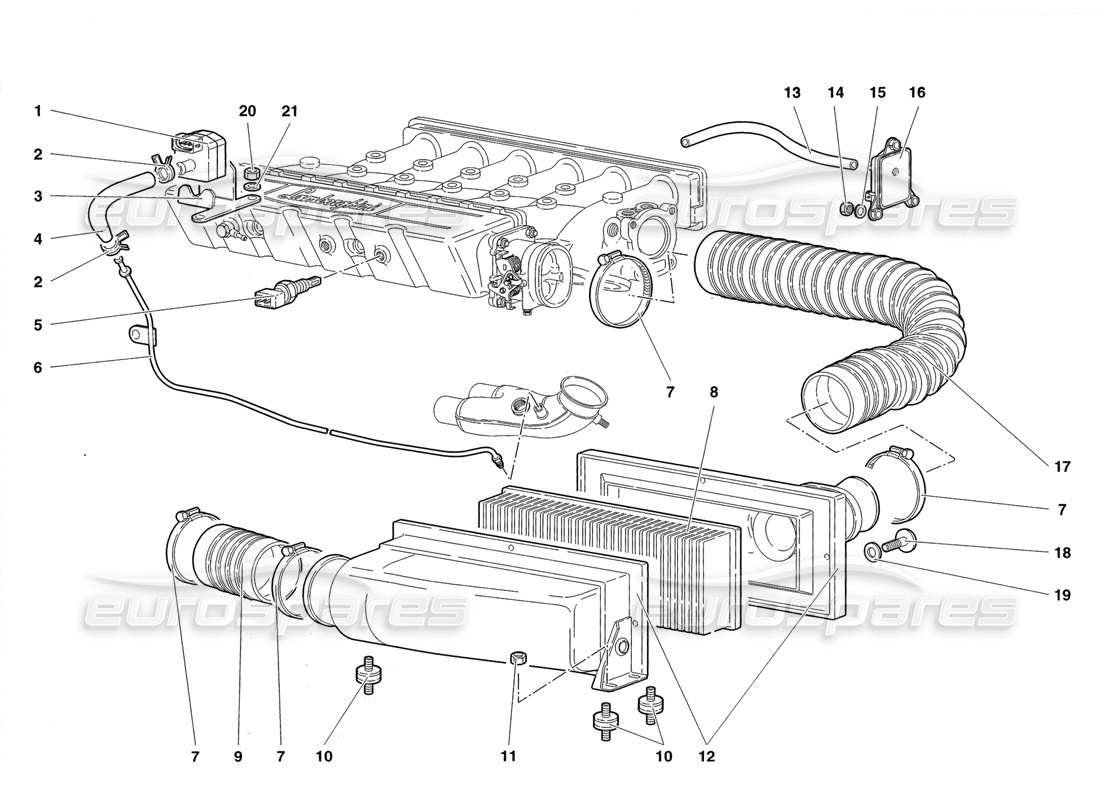

Lamborghini Diablo Roadster (1998) Air Filters Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 0020001200
      SENSOR
      SENSORE
      from £459.34
      from £459.34
      # 002
      MPN: 008830131
      STRAP
      FASCETTA
      Supersession
      Supersession
      # 003
      MPN: 0020001196
      RIGHT SUPPORT
      SUPPORTO DX
      from £56.97
      from £56.97
      # 003
      MPN: 0020001197
      LEFT SUPPORT
      SUPPORTO SX
      from £56.97
      from £56.97
      # 004
      MPN: 0020001201
      PIPE
      Tubo
      Supersession
      Supersession
      # 005
      MPN: 07M919529
      AIR TEMPERATURE SENSOR
      from £173.36
      from £173.36
      # 006
      MPN: 0020001198
      RIGHT PIPE
      TUBO DX
      from £161.69
      from £161.69
      # 006
      MPN: 0020001199
      LEFT PIPE
      TUBO SX
      from £100.31
      from £100.31
      # 006
      MPN: 0020001298
      RIGHT PIPE
      (Valid for U.S.A 1998) TUBO DX
      from £43.45
      from £43.45
      # 006
      MPN: 0020001298
      RIGHT PIPE
      (Valid for CANADA 1998) TUBO DX
      from £43.45
      from £43.45
      # 006
      MPN: 0020001299
      LEFT PIPE
      (Valid for U.S.A 1998) TUBOSX
      from £140.55
      from £140.55
      # 006
      MPN: 0020001299
      LEFT PIPE
      (Valid for CANADA 1998) TUBO SX
      from £140.55
      from £140.55
      # 007
      MPN: 008838701
      STRAP
      FASCETTA
      from £4.40
      from £4.40
      # 008
      MPN: 07M133843
      AIR FILTER
      from £17.12
      from £17.12
      This part replaces part number 001321435
      # 009
      MPN: 001330523
      PIPE
      Tubo
      from £133.16
      from £133.16
      # 010
      MPN: 009411508
      ELASTIC SUPPORT
      SUPPORTO ELASTICO
      from £17.82
      from £17.82
      # 011
      MPN: 008200614
      NUT
      DADO
      Supersession
      Supersession
      # 012
      MPN: 0013001300
      RIGHT CASE
      RH AIR FILTER BOX
      from £538.92
      from £538.92
      # 012
      MPN: 0013001301
      LEFT CASE
      SCATOLA FILTRO ARIA SX
      # 013
      MPN: 001330454
      PIPE
      Tubo
      from £88.72
      from £88.72
      # 014
      MPN: 008200606
      NUT
      DADO
      Supersession
      Supersession
      # 015
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.52
      from £0.52
      This part replaces part number 008400607
      # 016
      MPN: 07M919529A
      PRESS. SENSOR
      PRESSURE SENSOR
      from £267.18
      from £267.18
      # 017
      MPN: 001331286
      RIGHT PIPE
      TUBO DX
      from £72.06
      from £72.06
      # 017
      MPN: 001333774
      LEFT PIPE
      TUBO SX
      from £152.18
      from £152.18
      # 018
      MPN: 008700691
      SCREW
      VITE
      from £1.97
      from £1.97
      # 019
      MPN: 008400623
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 020
      MPN: 008200606
      NUT
      DADO
      Supersession
      Supersession
      # 021
      MPN: 008400606
      WASHER
      RONDELLA
      Supersession
      Supersession
