12.02.00 - timing system

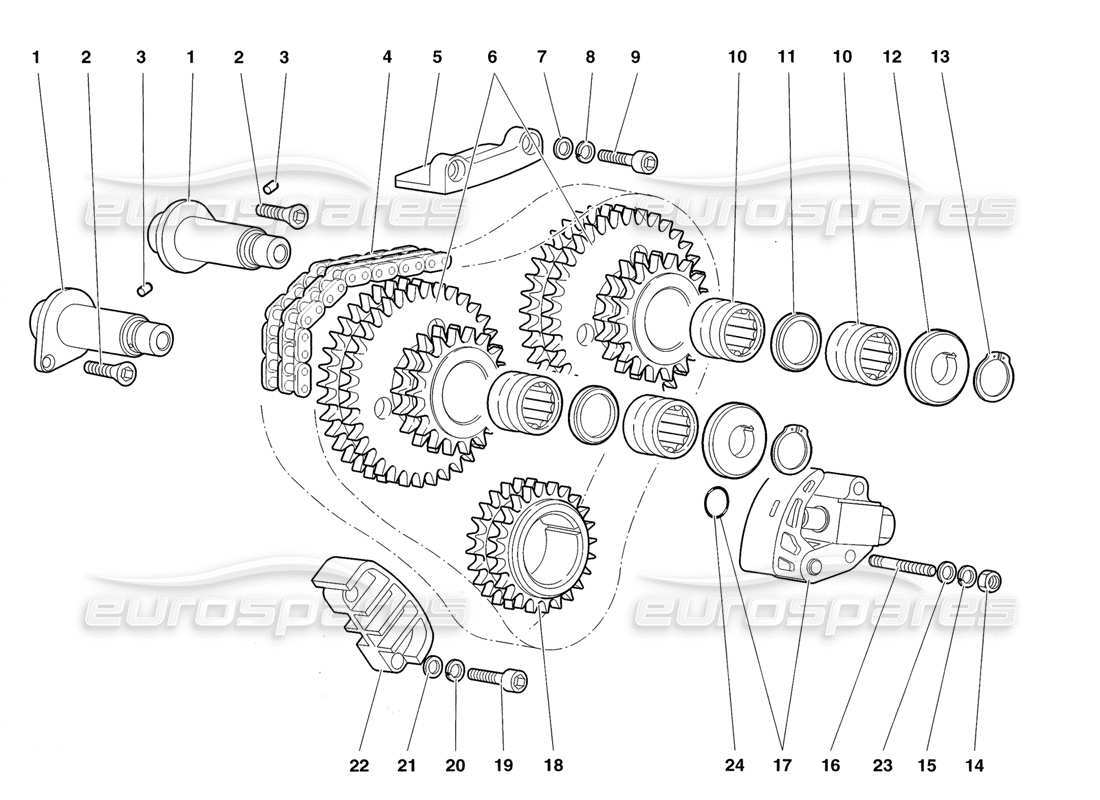

Lamborghini Diablo Roadster (1998) Timing System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001232199
PIN
PERNO
# 002
MPN: 008700638
SCREW
VITE
Supersession
Supersession
# 003
MPN: 008900203
PIN
SPINA
from £0.53
from £0.53
# 004
MPN: 0012001137
CHAIN
CATENA INFERIORE DISTR.
Supersession
Supersession
# 005
MPN: 07M109201
GUIDE
GUIDA
from £43.84
from £43.84
# 006
MPN: 07M109569
GEAR
INGRANAGGIO
from £1,033.25
from £1,033.25
# 008
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 010
MPN: 008522508
BEARING
CUSCINETTO
# 011
MPN: 07M109135
SPACER
DISTANZIALE
from £131.00
from £131.00
# 012
MPN: 001231173
WASHER
RONDELLA Dl RITEGNO
from £21.27
from £21.27
# 013
MPN: WHT002646
RETAINER RING
ANELLO RITEGNO
from £0.73
from £0.73
# 014
MPN: 008200604
NUT
DADO
Supersession
Supersession
# 015
MPN: 008410612
WASHER
RONDELLA
Supersession
Supersession
# 016
MPN: 008300660
STUD
PRIGIONIERO
from £8.65
from £8.65
# 017
MPN: 07M109077A
CHAIN STRETCHER
TENDICATENA
from £494.58
from £494.58
# 018
MPN: 001232196
GEAR
INGRANAGGIO COMANDO DISTR.
from £91.20
from £91.20
# 020
MPN: 008410820
WASHER
RONDELLA
Supersession
Supersession
# 021
MPN: 008400806
WASHER
RONDELLA
Supersession
Supersession
# 022
MPN: 07M109203
GUIDE
GUIDA
from £1,232.12
from £1,232.12
# 023
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 024
MPN: 008601501
SEAL
SEALING RING
from £3.65
from £3.65
