72.01.00 - Door Mechanism

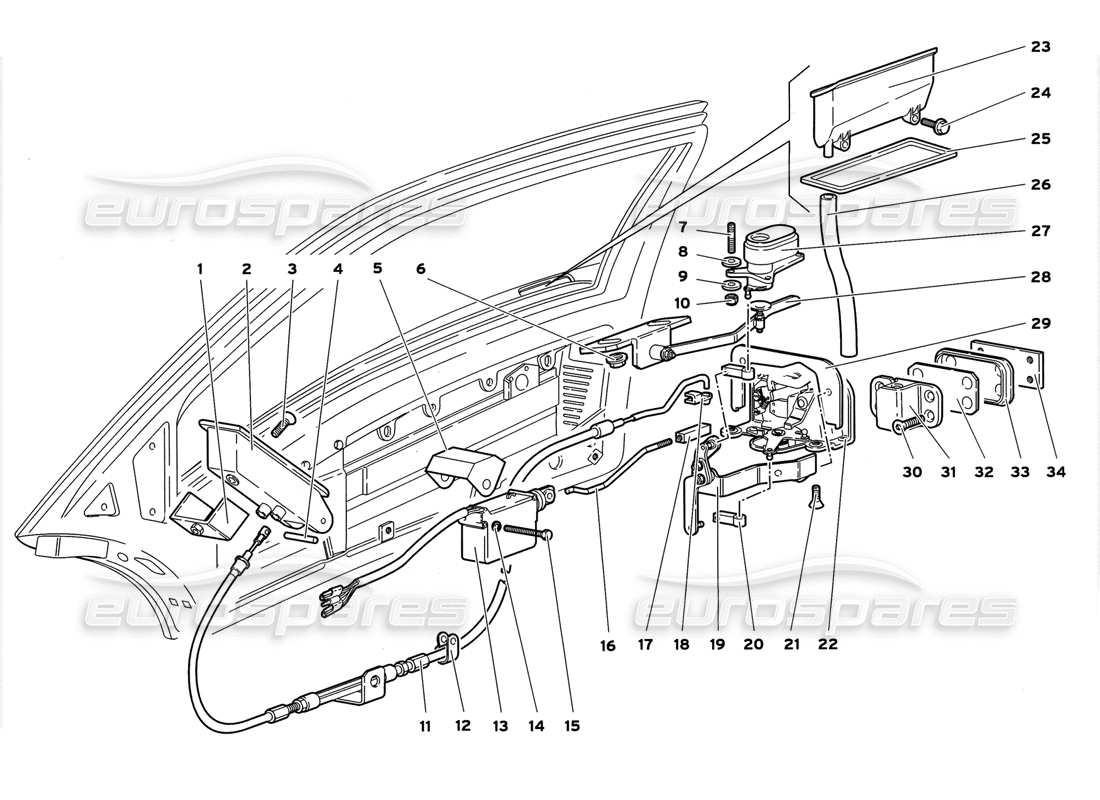

Lamborghini Diablo GT (1999) Door Mechanism Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 009421274
        BRACKET
        CAVALLOTTO
        from £40.25
        from £40.25
        INTERNAL DOOR HANDLEWIRE Genuine Lamborghini - New In stock
        # 002
        MPN: 0072004757
        HANDLE
        HANDLE
        from £341.30
        from £341.30
        Lamborghini PART 0072004757 Genuine Lamborghini - New (to order)
        # 004
        MPN: 008900305
        PIN
        PERNO
        from £0.53
        from £0.53
        ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
        # 005
        MPN: 009921112
        RIGHT SHIELD
        PROTEZIONE DX
        from £53.89
        from £53.89
        STAFFA DX DU TRAV.PORTA X ATT. Genuine Lamborghini - New (to order)
        # 005
        MPN: 009921113
        LEFT SHIELD
        PROTEZIONE SX
        from £9.83
        from £9.83
        BRACKET Genuine Lamborghini - New (to order)
        # 006
        MPN: 008200614
        NUT
        DADO
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 007
        MPN: 008300403
        STUD
        PRIGIONIERO (L=21 MM)
        from £16.59
        from £16.59
        SPECIAL STUD M4X17 FRPM 4-19 Genuine Lamborghini - New (to order)
        # 007
        MPN: 009921221
        STUD
        PRIGIONIERO (L=18 MM)
        from £2.69
        from £2.69
        STUD FRP M4X18 Genuine Lamborghini - New (to order)
        # 008
        MPN: 008400401
        WASHER (SPACER)
        RONDELLA (DISTANZIALE)
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 009
        MPN: 008400401
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 010
        MPN: WHT002959
        NUT
        DADO
        from £0.53
        from £0.53
        LOCK NUT NYLONSTOP Genuine Lamborghini - New In stock
        # 011
        MPN: 009421051
        LEFT CABLE
        CAVO SX
        from £84.98
        from £84.98
        LH DOOR LOCK WIRE Genuine Lamborghini - New In stock
        # 011
        MPN: 009421052
        RIGHT CABLE
        CAVO DX
        from £183.65
        from £183.65
        RH DOOR LOCK WIRE Genuine Lamborghini - New (to order)
        # 012
        MPN: 008830907
        STRAP
        FASCETTA
        from £0.52
        from £0.52
        CENTRAL DOOR LOCKINGSYSTEM WIR ING CLAMP Genuine Lamborghini - New In stock
        # 013
        MPN: 0R1320007
        LHS DOOR ACTUATOR
        from £555.96
        from £555.96
        KIT ATTUATORE PORTA SINISTRA Genuine Lamborghini - New (to order)
        # 013
        MPN: 0R1320008
        RHS DOOR ACTUATOR
        from £262.86
        from £262.86
        RHS DOOR ACTUATOR Genuine Lamborghini - New (to order)
        # 014
        MPN: 008400401
        WASHER
        RONDELLA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 015
        MPN: 008100404
        SCREW
        VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 016
        MPN: 009921204
        RIGHT TIE ROD
        TIRANTE DX
        from £13.90
        from £13.90
        RH LOCK/ACTUATOR TIE-ROD Genuine Lamborghini - New (to order)
        # 016
        MPN: 009921211
        LEFT TIE ROD
        TIRANTE SX
        from £13.90
        from £13.90
        LH LOCK/ACTUATOR TIE-ROD Genuine Lamborghini - New (to order)
        # 017
        MPN: 007021016
        PAWL
        NOTTOLINO
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 018
        MPN: 009421251
        CLIP
        HOOKING CLAMP
        PAWL Genuine Lamborghini - New (to order)
        # 019
        MPN: 009921225
        RIGHT IDLE LEVER
        RINVIO A LEVA DX
        from £207.95
        from £207.95
        RH DOOR CLOSING LINKAGE Genuine Lamborghini - New (to order)
        # 019
        MPN: 009921226
        LEFT IDLE LEVER
        RINVIO A LEVA SX
        from £153.39
        from £153.39
        LH DOOR CLOSING LINKAGE Genuine Lamborghini - New (to order)
        # 020
        MPN: 009421214
        COUPLING
        TESTINA
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 021
        MPN: 008700638
        SCREW
        VITE
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 022
        MPN: 410837015
        Left lock
        Left lock
        from £136.50
        from £136.50
        LEFT DOOR LOCK Genuine Lamborghini - New (to order)
        LEFT DOOR LOCK Genuine Lamborghini - Used In stock
        # 022
        MPN: 410837016
        Right lock
        Right lock
        from £136.50
        from £136.50
        RIGHT DOOR LOCK Genuine Lamborghini - New (to order)
        RIGHT DOOR LOCK Genuine Lamborghini - Used In stock
        # 023
        MPN: 009421200
        RIGHT HANDLE
        RIGHT HANDLE
        from £193.69
        from £193.69
        RIGHT DOOR EXTERNAL HANDLE Genuine Lamborghini - New (to order)
        # 023
        MPN: 009421201
        LEFT HANDLE
        MANIGLIA SX
        from £202.77
        from £202.77
        LEFT DOOR EXTERNAL HANDLE Genuine Lamborghini - New In stock
        # 024
        MPN: N10718801
        SCREW
        VITE
        from £0.59
        from £0.59
        HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
        BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New In stock
        # 025
        MPN: 009421712
        RIGHT GASKET
        GUARNIZIONE DX
        from £3.45
        from £3.45
        DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
        # 025
        MPN: 009421713
        LEFT GASKET
        GUARNIZIONESX
        from £8.34
        from £8.34
        DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
        # 026
        MPN: 009421245
        PIPE
        Tubo
        from £11.28
        from £11.28
        COOLANT DRAIN TUBE Genuine Lamborghini - New (to order)
        # 027
        MPN: 0072005036
        LH & RH DOOR BUTTONS
        from £282.74
        from £282.74
        DOOR BUTTONS KIT (RH+LH) Genuine Lamborghini - New In stock
        # 027
        MPN: 009421227/a
        RIGHT DOOR BUTTON
        use : 0072005036 (LH & RH buttons)
        RIGHT DOOR BUTTON Genuine Lamborghini - New (to order)
        # 027
        MPN: 009421228/a
        LEFT DOOR BUTTON
        use : 0072005036 (LH & RH buttons)
        LEFT DOOR BUTTON Genuine Lamborghini - New (to order)
        # 028
        MPN: 009921223
        RIGHT IDLE LEVER
        RINVIO A LEVA DX
        from £153.39
        from £153.39
        RH DOOR OPENING LINKAGE Genuine Lamborghini - New (to order)
        # 028
        MPN: 009921224
        LEFT IDLE LEVER
        RINVIO A LEVA SX
        from £153.39
        from £153.39
        LH DOOR OPENING LINKAGE Genuine Lamborghini - New (to order)
        # 029
        MPN: 009421272
        LEFT GASKET
        GUARNIZIONE SX
        RIGHT LOCK GASKET Genuine Lamborghini - New (to order)
        # 029
        MPN: 009421273
        RIGHT GASKET
        GUARNIZIONE DX
        RIGHT GASKET Genuine Lamborghini - New (to order)
        # 030
        MPN: 008700610
        SCREW
        VITE
        from £0.51
        from £0.51
        SCREW 6X22 UNI 5933/8G/ZD Genuine Lamborghini - New In stock
        # 031
        MPN: 410831407A
        LEFT LOCK STRIKER
        from £163.12
        from £163.12
        HINGE HALF LEFT Genuine Lamborghini - New (to order)
        HINGE HALF LEFT Genuine Lamborghini - Used In stock
        # 031
        MPN: 410831408A
        RIGHT LOCK STRIKER
        from £287.71
        from £287.71
        HINGE HALF RIGHT Genuine Lamborghini - New (to order)
        HINGE HALF RIGHT Genuine Lamborghini - Used In stock
        # 032
        MPN: 410837963
        SPACER
        DISTANZIALE
        from £9.81
        from £9.81
        SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
        # 032
        MPN: 410837964
        SPACER
        DISTANZIALE
        from £9.56
        from £9.56
        SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
        # 033
        MPN: 410837899
        PLATE
        from £9.34
        from £9.34
        DOOR HEATER TRIM Genuine Lamborghini - New (to order)
        # 034
        MPN: 007021253
        PLATE
        PIASTRA
        from £18.62
        from £18.62
        DOOR LOCK STRIKER FIX.PLATE Genuine Lamborghini - New (to order)
