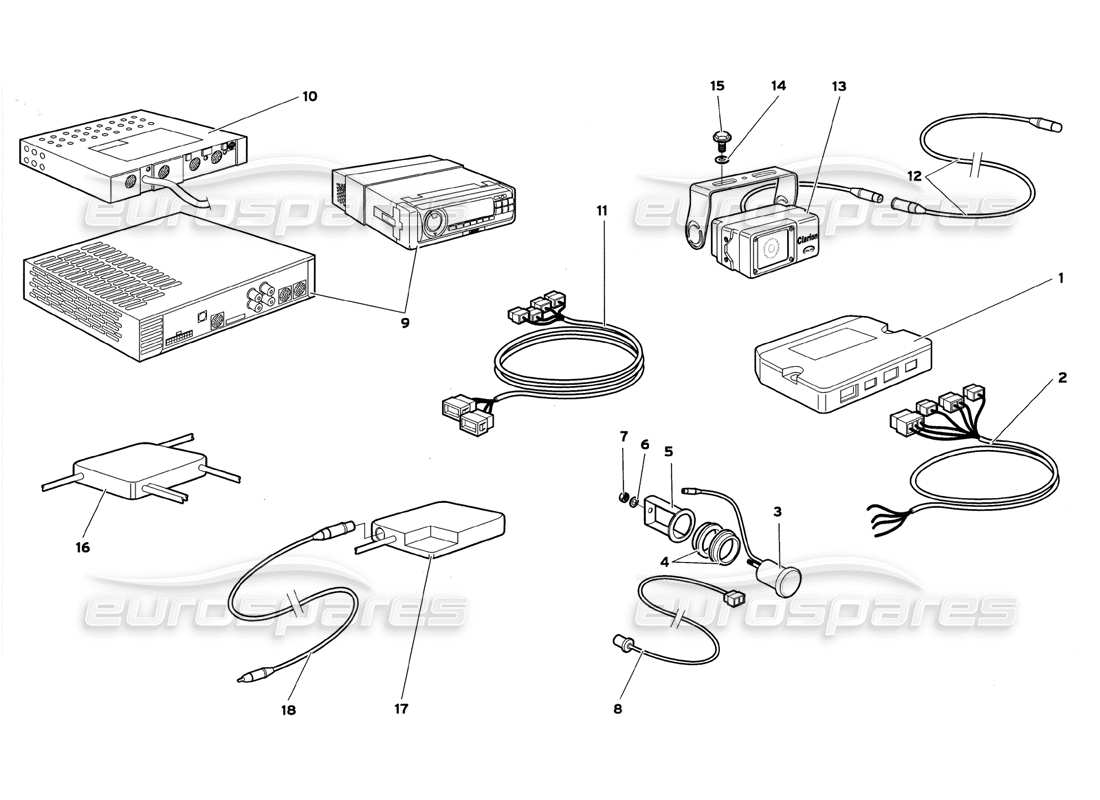

61.06.00 - electrical system
Lamborghini Diablo GT (1999) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0059006233
ECU
CENTRALINA
from £233.82
from £233.82
# 002
MPN: 0061006169
ECU WIRING HARNESS
Only for Chassin No: 12267 & 12271 & 12277 & 12294 & 12302 & 12309 & 12313 & 12317 & 12323 & 12325 & 12328 & 12333 & 12337 & 12339 & 12341 & 12345 & 12349 & 12365 - CABLAGGIO CENTRALINA
from £76.00
from £76.00
# 003
MPN: 0059006228
SENSOR REVERSE SHAFT
REVERSE SENSOR
from £65.42
from £65.42
# 004
MPN: 0059006568
RUBBER WASHER
GOMMINO
from £102.88
from £102.88
# 005
MPN: 0059006569
BRACKET
STAFFA
from £65.28
from £65.28
# 006
MPN: 008400401
WASHER
RONDELLA
Supersession
Supersession
# 007
MPN: WHT002959
NUT
DADO
from £0.56
from £0.56
# 008
MPN: 0059006231
BUZZER
MODULO BUZZER
from £24.05
from £24.05
# 009
MPN: 571320048
RADIO
AUTORADIO
# 010
MPN: 0059006177
ECU
CENTRALINA
from £833.26
from £833.26
# 011
MPN: 0061006159
RADIO WIRING HARNESS
Only for Chassin No: 12267 & 12271 & 12277 & 12294 & 12302 & 12309 & 12313 & 12317 & 12323 & 12325 & 12328 & 12333 & 12337 & 12339 & 12341 & 12345 & 12349 & 12365 - CABLAGGIO AUTORADIO
# 011
MPN: 0061006518
RADIO WIRING HARNESS
RADIO WIRING
from £89.93
from £89.93
# 012
MPN: 0061006157
CAMERA CABLE
CAMERA CABLE
from £480.89
from £480.89
# 013
MPN: 0059006176
CAMERA
CAMERA
from £1,811.43
from £1,811.43
# 014
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 015
MPN: N10718801
SCREW
VITE
from £0.59
from £0.59
# 016
MPN: 0059006178
aerial
ANTENNA
from £174.12
from £174.12
# 017
MPN: 005937332
AMPLIFIER
AMPLIFIER
from £77.52
from £77.52
# 018
MPN: 410035550
AERIAL CABLE
from £23.44
from £23.44
