61.01.00 - electrical system

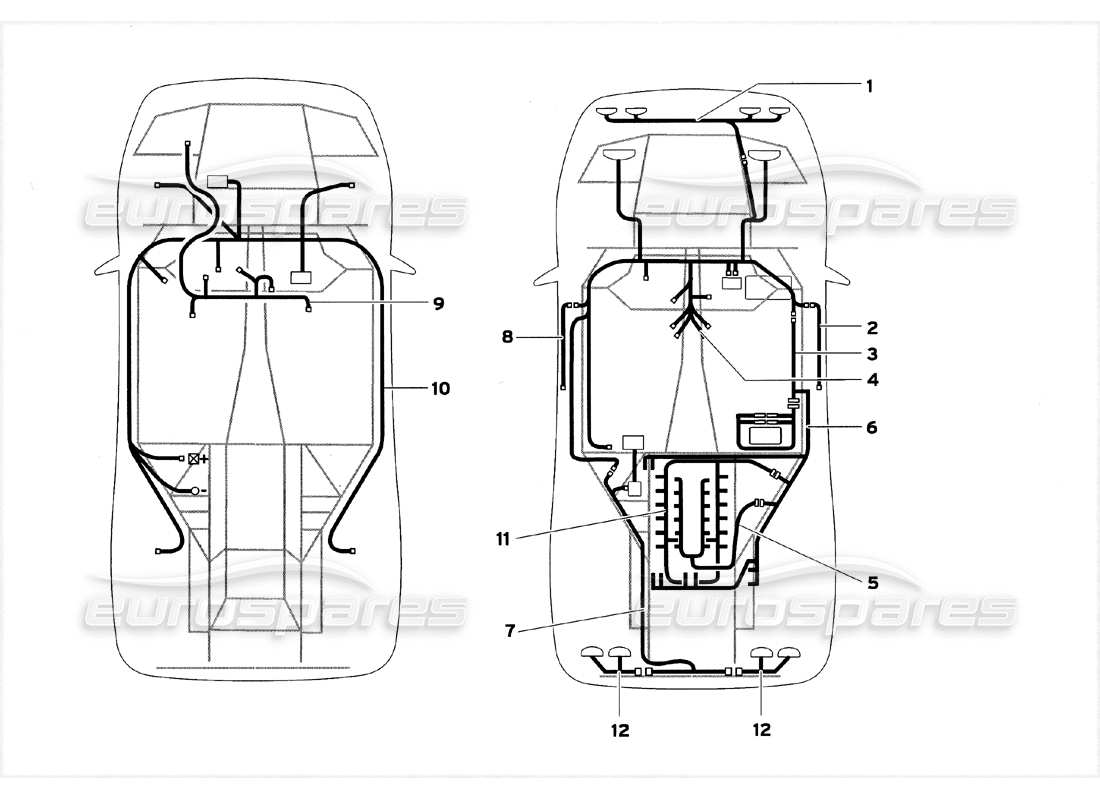

Lamborghini Diablo GT (1999) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0061004575
CABLE
CABLAGGIO ANT. PARAURTI
from £179.09
from £179.09
# 002
MPN: 0061006219
CABLE
CABLAGGIO PORTA PASSEGGERO
from £135.57
from £135.57
# 003
MPN: 006138163
CABLE
CABLAGGIO POST. DX
from £203.14
from £203.14
# 004
MPN: 0061004392
CABLE
Only for Chassis No: 12267 & 12271 & 12277 & 12294 & 12302 & 12309 & 12313 & 12317 & 12323 & 12325 & 12328 & 12333 & 12337 & 12339 & 12341 & 12345 & 12349 & 12365 - CABLAGGIO CENTRALE
# 004
MPN: 0061006217
CABLE
CABLAGGIO CENTRALE
from £1,392.08
from £1,392.08
# 005
MPN: 0061004389
CABLE
CABLAGGIO INIEZIONE
from £2,035.46
from £2,035.46
# 006
MPN: 0061004516
CABLE
INJECTION ENGINE HARNESS
from £583.70
from £583.70
# 007
MPN: 0061004393
CABLE
Only for Chassis No: 12267 & 12271 & 12277 & 12294 & 12302 & 12309 & 12313 & 12317 & 12323 & 12325 & 12328 & 12333 & 12337 & 12339 & 12341 & 12345 & 12349 & 12365 - CABLAGGIO POST. SX
from £1,426.66
from £1,426.66
# 007
MPN: 0061006218
CABLE
CABLAGGIO POST. SX
from £541.27
from £541.27
# 008
MPN: 0061006220
CABLE
PILOT DOOR WIRING
from £204.80
from £204.80
# 009
MPN: 006137795
CABLE
CABLAGGIO AIR BAG (OPT)
from £96.19
from £96.19
# 010
MPN: 0061004456
CABLE
CABLAGGIO ABS-TCS
from £347.40
from £347.40
# 011
MPN: 0061004390
CABLE
ENGINE-IGNITION HARNESS
from £1,085.13
from £1,085.13
# 012
MPN: 0061004451
CABLE
CABLAGGIO FANALI POST. DX./SX.
from £61.45
from £61.45
