16.01.00 - Phase Sensors and Electrical Components

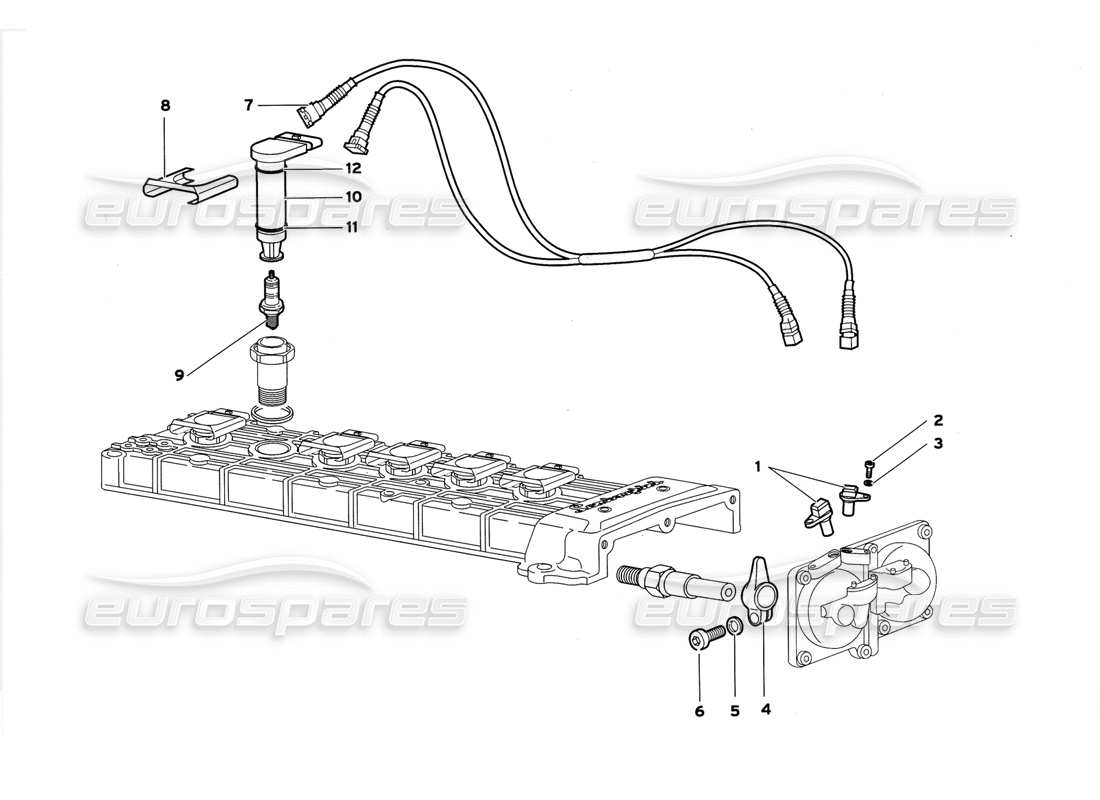

Lamborghini Diablo GT (1999) Phase Sensors and Electrical Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 086927321
TIMING SENSOR
PHASE SENSOR
from £73.50
from £73.50
# 002
MPN: 008700670
SCREW
VITE
Supersession
Supersession
# 003
MPN: 008410602
WASHER
RONDELLA
from £28.66
from £28.66
# 004
MPN: 0016003891
PULSE GENERATOR
GENERATORE Dl IMPULSI
from £143.45
from £143.45
# 005
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 006
MPN: 008700670
SCREW
VITE
Supersession
Supersession
# 007
MPN: 0061003980
SENSOR EXTENSION
EXTENSION FOR SENSORS
from £142.28
from £142.28
# 008
MPN: 0016003237
SPRING
MOLLA
from £39.52
from £39.52
# 009
MPN: 0016003036
SPARK PLUG
Champion
Supersession
Supersession
# 009

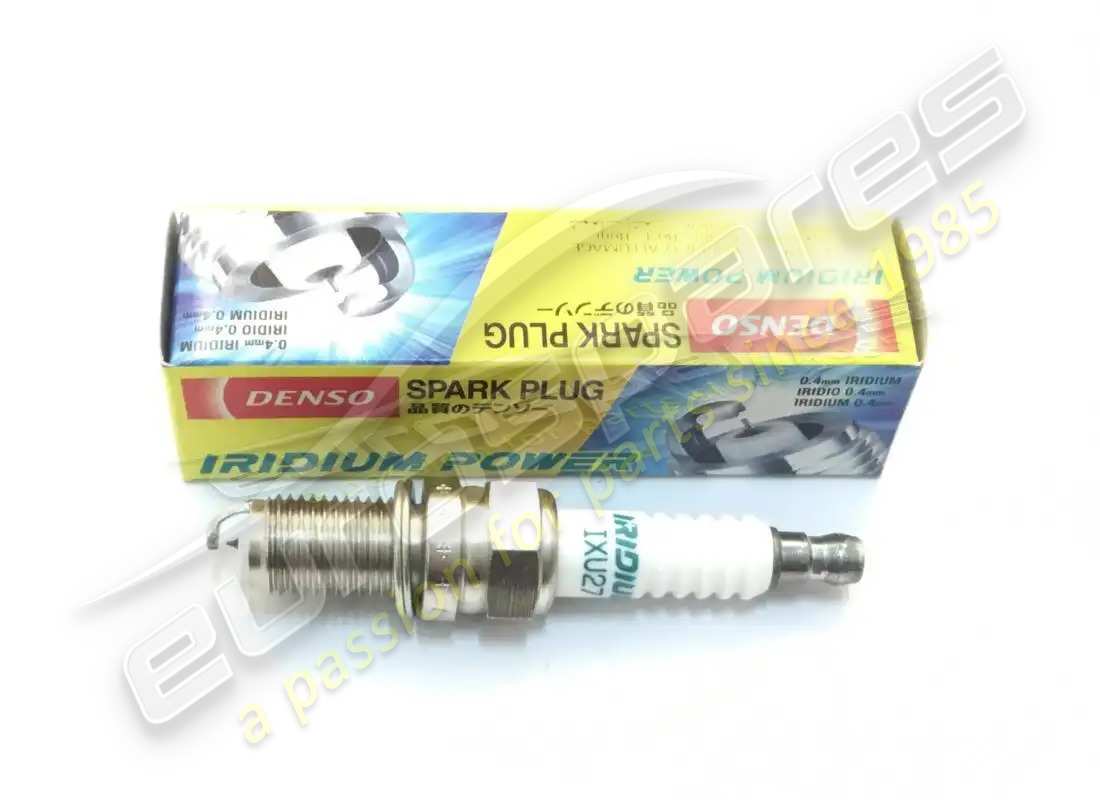

MPN: 0016003036/A
SPARK PLUG
denso iridium
from £16.75
from £16.75
This part replaces part number 0016003036 - and 1 more. Click to view details

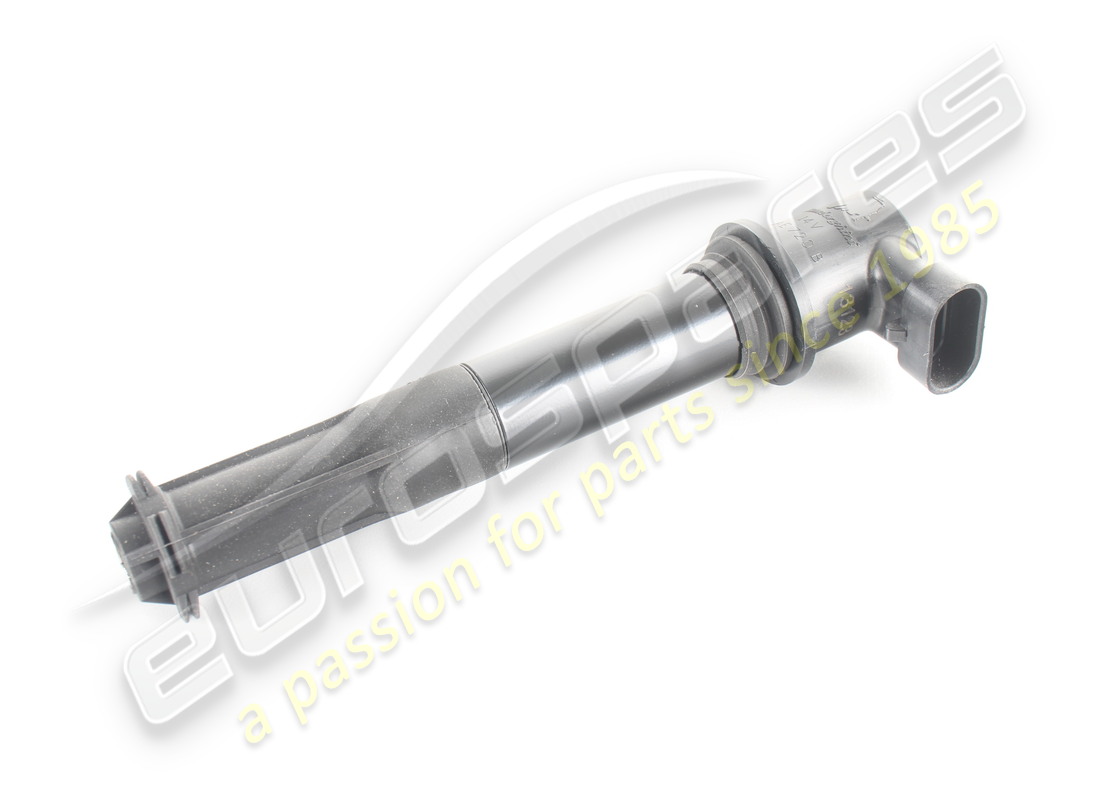

# 010
MPN: 0R1470225
COIL
(supplied in sets of 12 only)
from £119.32
from £119.32
# 011
MPN: 008602304
O RING
ANELLO TENUTA
from £5.71
from £5.71
This part replaces part number 008602302
# 012
MPN: 008602502
SEAL
ANELLO TENUTA
from £0.50
from £0.50
