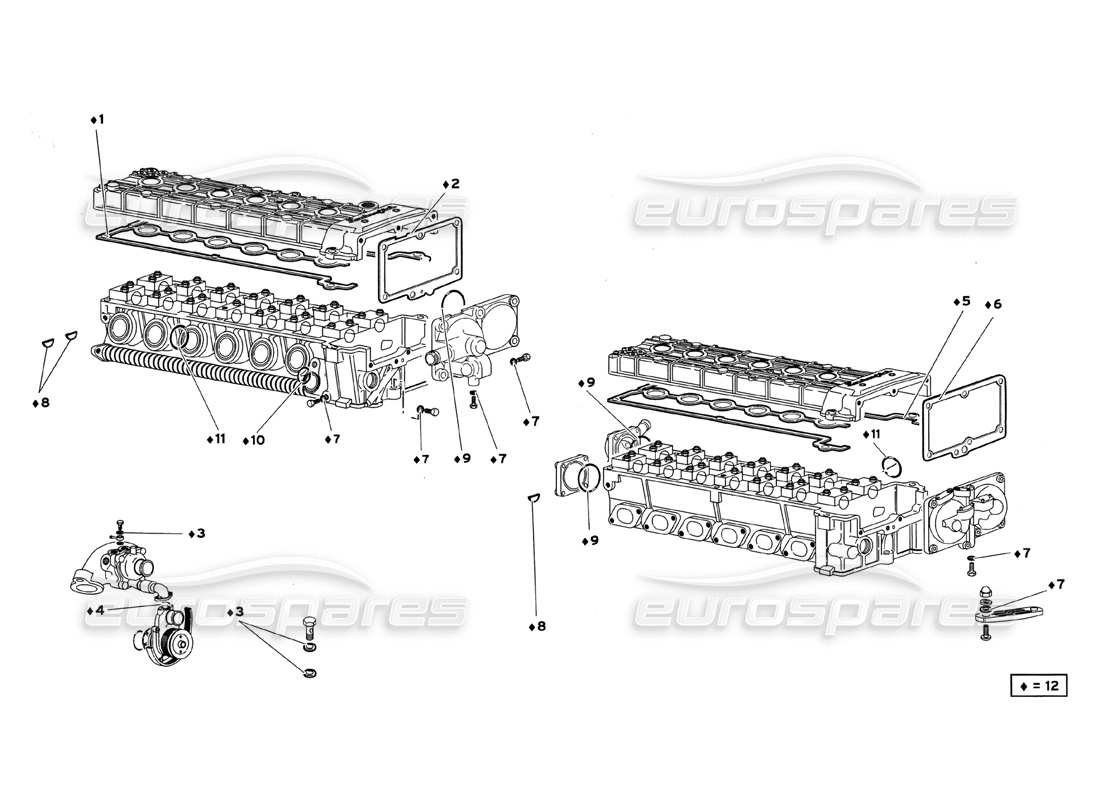

11.06.00 - cover gasket kit

Lamborghini Diablo GT (1999) Cover Gasket Kit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 07M103484A
      RH GASKET
      from £421.09
      from £421.09
      # 002
      MPN: 0011004551
      GASKET
      Guarnizione
      from £20.20
      from £20.20
      # 003
      MPN: 008400818
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 004
      MPN: WHT003062
      SEAL
      ANELLO TENUTA
      from £3.98
      from £3.98
      This part replaces part number 008602802
      # 005
      MPN: 07M103484A
      RH GASKET
      from £421.09
      from £421.09
      # 006
      MPN: 0011003889
      GASKET
      Guarnizione
      from £18.21
      from £18.21
      # 007
      MPN: WHT003041
      WASHER
      RONDELLA
      from £0.51
      from £0.51
      This part replaces part number 008400609 - and 1 more. Click to view details
      # 008
      MPN: 0011003411
      COVER
      COPERCHIO
      Supersession
      Supersession
      # 009
      MPN: 008606205
      SEAL
      ANELLO TENUTA
      from £2.69
      from £2.69
      This part replaces part number 008606201
      # 010
      MPN: 008603503
      SEAL
      ANELLO TENUTA
      from £2.61
      from £2.61
      This part replaces part number 008603501
      # 011
      MPN: 008604703
      SEAL
      ANELLO TENUTA
      from £5.15
      from £5.15
      This part replaces part number 008604701
      # 012
      MPN: 0011005356
      KIT
      (Includes all parts marked - ?) - KIT
      from £211.77
      from £211.77
