92.01.00 - Engine Bonnet

Lamborghini Diablo 6.0 (2001) Engine Bonnet Parts Diagram

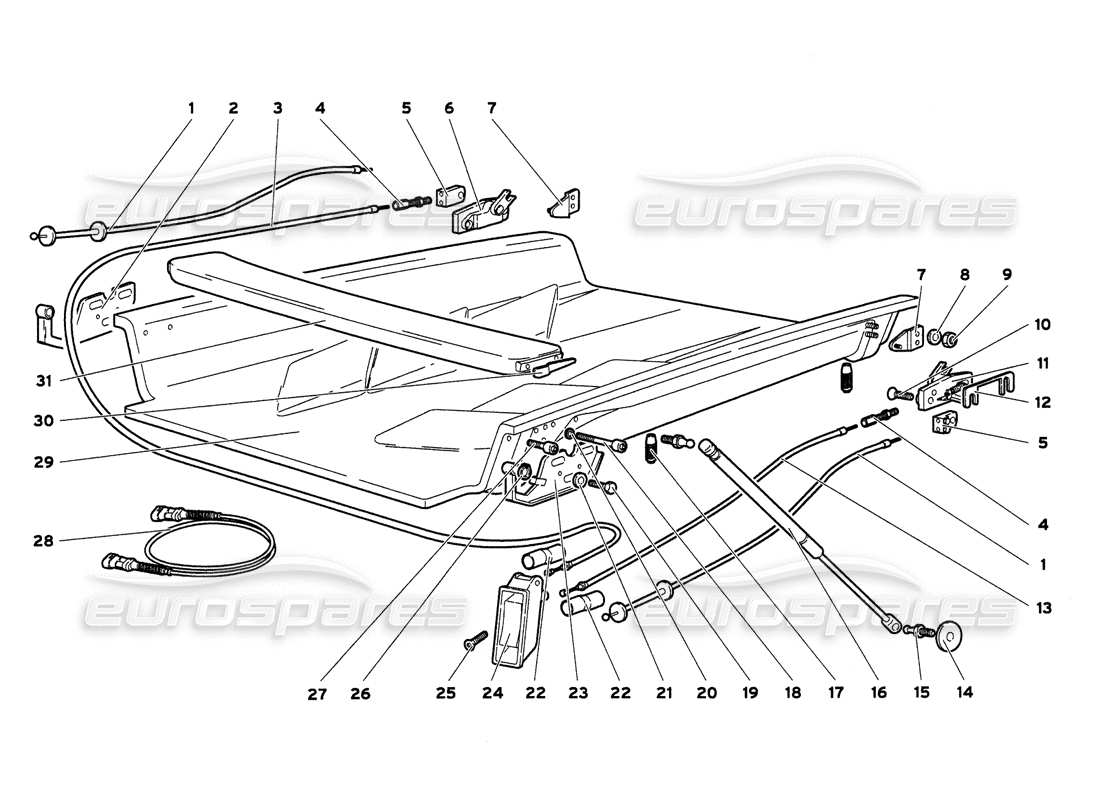

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 009460003
                                                              EMERGENCY CABLE
                                                              from £16.22
                                                              from £16.22
                                                              # 002
                                                              MPN: 009460322
                                                              RH HINGE
                                                              from £43.94
                                                              from £43.94
                                                              # 003
                                                              MPN: 009460006
                                                              RH CABLE
                                                              from £29.06
                                                              from £29.06
                                                              # 004
                                                              MPN: 009460213
                                                              ADJUSTMENT SCREW
                                                              # 005
                                                              MPN: 009460212
                                                              DOUBLE CLAMP
                                                              USE 410814333
                                                              # 006
                                                              MPN: 009460200
                                                              RH LOCK
                                                              from £407.93
                                                              from £407.93
                                                              # 007
                                                              MPN: 009460201
                                                              LOCK STRIKER
                                                              from £78.52
                                                              from £78.52
                                                              # 008
                                                              MPN: 008400627
                                                              WASHER
                                                              from £13.82
                                                              from £13.82
                                                              # 009
                                                              MPN: N02214812
                                                              NUT
                                                              from £1.10
                                                              from £1.10
                                                              This part replaces part number 008200612
                                                              # 010
                                                              MPN: 008700638
                                                              SCREW
                                                              Supersession
                                                              Supersession
                                                              # 011
                                                              MPN: 009460202
                                                              LH LOCK
                                                              from £245.42
                                                              from £245.42
                                                              # 012
                                                              MPN: 009460215
                                                              1.0 MM SHIM
                                                              from £2.53
                                                              from £2.53
                                                              # 012
                                                              MPN: 009460216
                                                              1.5 MM SHIM
                                                              from £3.65
                                                              from £3.65
                                                              # 013
                                                              MPN: 009460007
                                                              LH CABLE
                                                              from £29.06
                                                              from £29.06
                                                              # 014
                                                              MPN: WHT001942
                                                              WASHER
                                                              from £2.18
                                                              from £2.18
                                                              # 015
                                                              MPN: 009459305
                                                              BALL PIN
                                                              from £1.60
                                                              from £1.60
                                                              # 016
                                                              MPN: 0092004388
                                                              ENGINE COVER STRUT
                                                              from £136.81
                                                              from £136.81
                                                              # 017
                                                              MPN: 400807333
                                                              RUBBER BUMPER
                                                              from £12.06
                                                              from £12.06
                                                              # 018
                                                              MPN: 008700549
                                                              SCREW
                                                              from £1.36
                                                              from £1.36
                                                              # 019
                                                              MPN: 008100662
                                                              SCREW
                                                              # 020
                                                              MPN: 008400510
                                                              WASHER
                                                              from £0.53
                                                              from £0.53
                                                              # 021
                                                              MPN: 008400632
                                                              WASHER
                                                              # 022
                                                              MPN: 009421385
                                                              LINER
                                                              # 023
                                                              MPN: 009460323
                                                              LH HINGE
                                                              from £72.81
                                                              from £72.81
                                                              # 024
                                                              MPN: 400827185
                                                              HANDLE
                                                              from £1,132.69
                                                              from £1,132.69
                                                              # 026
                                                              MPN: 008580801
                                                              RETAINER RING
                                                              from £0.53
                                                              from £0.53
                                                              # 027
                                                              MPN: 008700547
                                                              SCREW
                                                              from £0.51
                                                              from £0.51
                                                              # 028
                                                              MPN: 0061008773
                                                              THIRD BRAKE LIGHT WIRING
                                                              from £5.15
                                                              from £5.15
                                                              # 029
                                                              MPN: 0092006335
                                                              Engine Bonnet
                                                              from £10,535.68
                                                              from £10,535.68
                                                              # 030
                                                              MPN: 009460100
                                                              GASKET
                                                              from £38.56
                                                              from £38.56
                                                              # 031
                                                              MPN: 0092006794
                                                              SPOILER
                                                              from £1,637.49
                                                              from £1,637.49
                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
