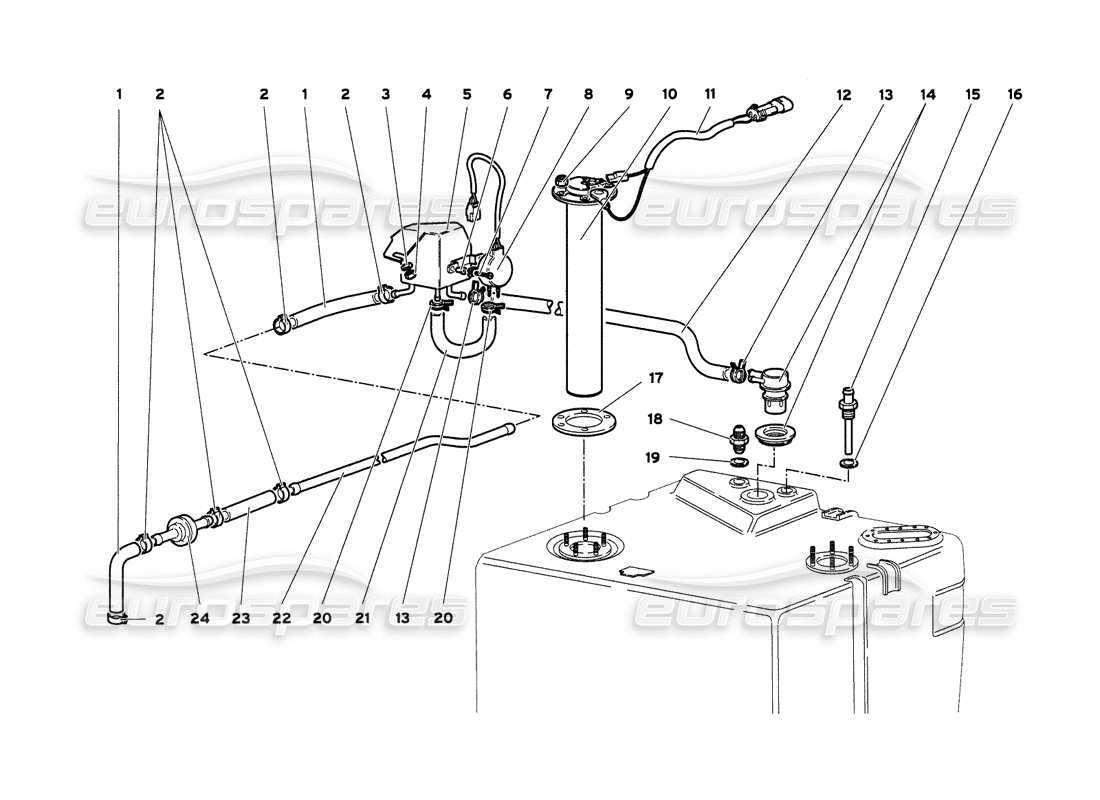

62.03.00 - fuel system
Lamborghini Diablo 6.0 (2001) Fuel System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0062001398
PIPE
from £8.42
from £8.42
# 002
MPN: 008831528
CLAMP
Supersession
Supersession
# 003
MPN: 008400606
WASHER
Supersession
Supersession
# 004
MPN: 008200606
NUT
Supersession
Supersession
# 005
MPN: 0062001351
FUEL VAPOUR SEPARATOR
from £180.72
from £180.72
# 006
MPN: 0062001396
RUBBER BUSHING
from £1.41
from £1.41
# 007
MPN: 008700346
SCREW
from £0.53
from £0.53
# 008
MPN: 400906206
SENSOR
from £877.40
from £877.40
# 009
MPN: N0211963
NUT
from £0.51
from £0.51
# 010
MPN: 006229648
FUEL LEVEL GAUGE
from £215.57
from £215.57
# 011
MPN: 0061008763
FLOAT WIRING
(Valid for vehicle No. 1LA12640 and from vehicle No. 1LA1276)
from £25.54
from £25.54
# 011
MPN: 006135126
FLOAT WIRING
(Valid up to vehicle No. 1LA12760 except for vehicle No. 1LA12640)
from £6.06
from £6.06
# 012
MPN: 0062001160
PIPE
from £8.71
from £8.71
# 013
MPN: 008830131
CLIP
Supersession
Supersession
# 014
MPN: 0062001272
ROLL OVER VALVE
from £213.92
from £213.92
# 015
MPN: 0062007567
UNION
from £44.53
from £44.53
# 016
MPN: 008402007
WASHER
from £0.54
from £0.54
# 017
MPN: 006229649
GASKET
from £9.77
from £9.77
# 018
MPN: 0062001267
UNION
from £21.27
from £21.27
# 019
MPN: 008401425
WASHER
Supersession
Supersession
# 020
MPN: 008830128
CLIP
Supersession
Supersession
# 021
MPN: 0062001397
PIPE
from £3.65
from £3.65
# 022
MPN: 006237081
PIPE
from £28.19
from £28.19
# 023
MPN: 0062004895
PIPE
from £5.43
from £5.43
# 024
MPN: 0062001313
VALVE
from £20.02
from £20.02
