61.04.00 - electrical system

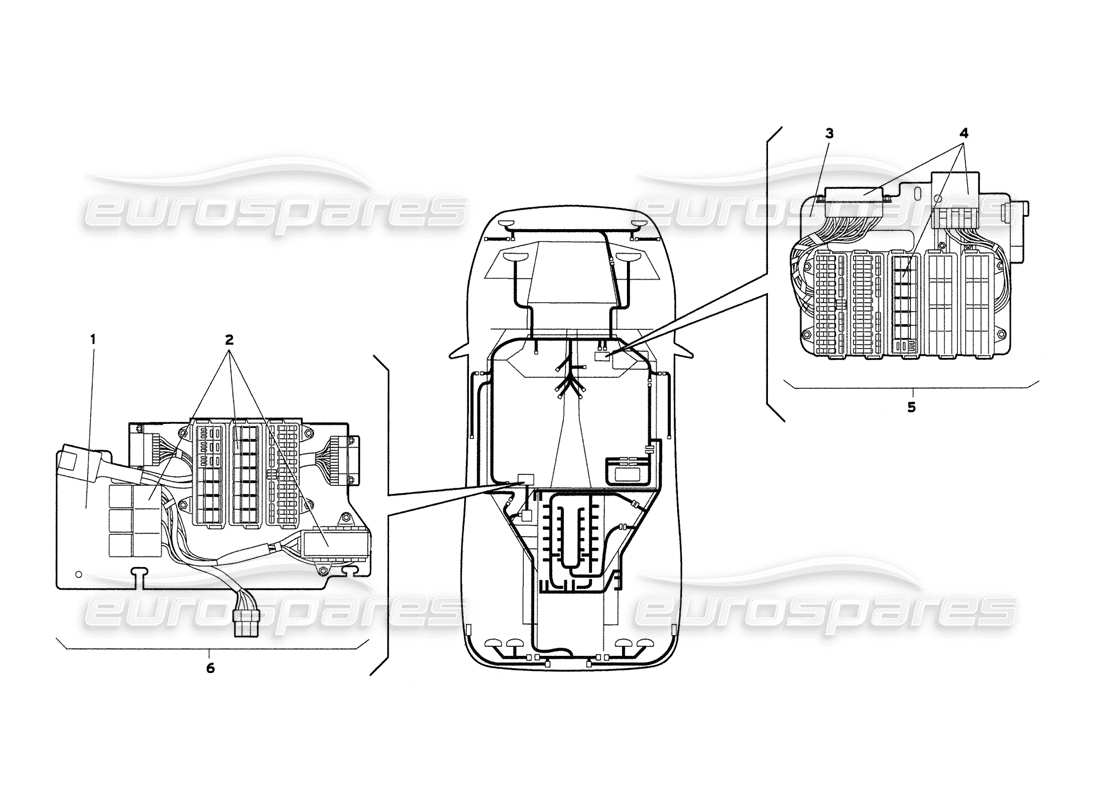

Lamborghini Diablo 6.0 (2001) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0059005486
BOARD
# 002
MPN: 0061008766
IGNITION RELAY BOX WIRING
(MY 2001)
# 003
MPN: 0059005484
BOARD
# 004
MPN: 0061008768
MAIN RELAY BOX WIRING
(MY 2001)
# 004
MPN: 0061008770
MAIN RELAY BOX WIRING
(Valid for USA - March 2001)
# 004
MPN: 0061008772
MAIN RELAY BOX WIRING
(Valid for CANADA - March 2001)
# 005
MPN: 0061008767
MAIN RELAY BOX ASSEMBLY
(MY 2001)
# 005
MPN: 0061008769
MAIN RELAY BOX ASSEMBLY
(Valid for USA - March 2001)
# 005
MPN: 0061008771
MAIN RELAY BOX ASSEMBLY
(Valid for CANADA - March 2001)
# 006
MPN: 0061008765
INJECTION RELAY BOX ASSEMBLY
(MY 2001)
from £345.00
from £345.00
