43.03.00 - Steering

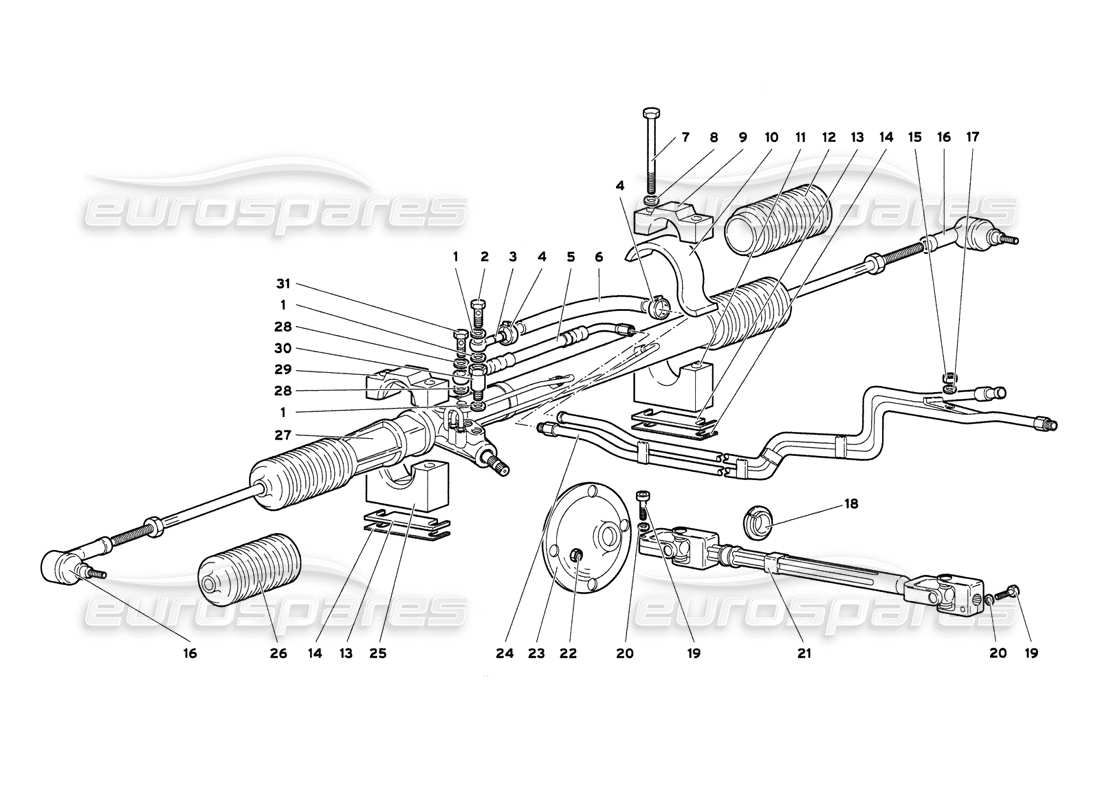

Lamborghini Diablo 6.0 (2001) Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008401621
WASHER
Supersession
Supersession
# 002
MPN: 003101941
BOLT
from £2.64
from £2.64
# 003
MPN: 004033471
UNION
# 004
MPN: 008831117
CLAMP
Supersession
Supersession
# 005
MPN: 004033464
PIPE
from £297.44
from £297.44
# 006
MPN: 004033459
PIPE
from £16.88
from £16.88
# 007
MPN: 008101076
SCREW
from £1.93
from £1.93
# 008
MPN: 008401006
WASHER
from £0.53
from £0.53
# 009
MPN: 410422761A
RETAINER
from £205.91
from £205.91
# 010
MPN: 004331587
RUBBER SHIM
Supersession
Supersession
# 011
MPN: 004333655
SUPPORT
from £215.73
from £215.73
# 012
MPN: 410419831
BOOT
from £777.32
from £777.32
This part replaces part number 004335023
# 013
MPN: 004333658
1.0 MM SHIM
from £5.94
from £5.94
# 014
MPN: 004333657
0.5 MM SHIM
from £9.21
from £9.21
# 015
MPN: N0211963
NUT
from £0.52
from £0.52
# 016
MPN: 400419811A
BALL JOINT COUPLING
from £832.66
from £832.66
This part replaces part number 004334555
# 017
MPN: WHT001187
WASHER
from £0.54
from £0.54
This part replaces part number 008400502
# 018
MPN: 0043002396
BUSHING
from £62.18
from £62.18
# 019
MPN: 008700843
SCREW
from £2.55
from £2.55
# 020
MPN: 008410823
WASHER
from £0.53
from £0.53
# 021
MPN: 0043002198
JOINTED SHAFT
Supersession
Supersession
# 022
MPN: 008200606
NUT
Supersession
Supersession
# 023
MPN: 410422326
GASKET
from £140.51
from £140.51
# 024
MPN: 0040006764
PIPE
from £436.11
from £436.11
# 025
MPN: 004333656
SUPPORT
Supersession
Supersession
# 026
MPN: 410419831
BOOT
from £777.32
from £777.32
This part replaces part number 004335023
# 027
MPN: 413422061C
POWER STEERING RACK (LHD)
from £4,232.42
from £4,232.42
This part replaces part number 413422061B
# 028
MPN: 008401425
WASHER
Supersession
Supersession
# 029
MPN: 410422874
RETAINER
from £890.59
from £890.59
# 030
MPN: 004033458
CONNECTION
# 031
MPN: 005124347
SCREW WITH HOLE
Supersession
Supersession
