43.02.00 - Steering
Lamborghini Diablo 6.0 (2001) Steering Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N90179103
WASHER
from £1.04
from £1.04
This part replaces part number 008400801
# 002
MPN: 008410810
WASHER
Supersession
Supersession
# 003
MPN: 008100830
SCREW
from £0.53
from £0.53
# 004
MPN: 0043004552
STRUT
from £107.37
from £107.37
# 005
MPN: 008200824
NUT
from £0.53
from £0.53
# 006
MPN: 410407295
SHIM
from £2.73
from £2.73
# 007
MPN: 0043004072
SUPPORT
from £272.79
from £272.79
# 007
MPN: 0043008702
SUPPORT
(Valid for GB - March 2001)
from £281.08
from £281.08
# 007
MPN: 0043008702
SUPPORT
(Valid for AUSTRALIA - March 2001)
from £281.08
from £281.08
# 008
MPN: 008700830
SCREW
from £0.53
from £0.53
# 009
MPN: WHT002646

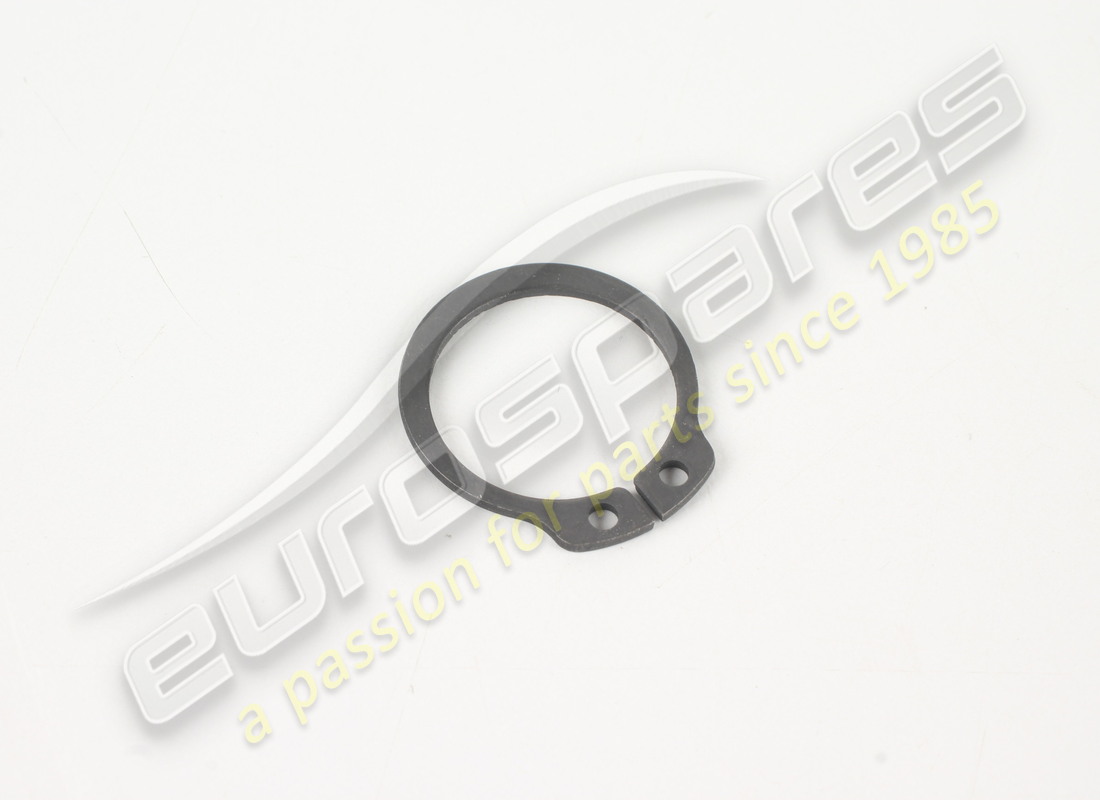

RETAINER RING
from £0.73
from £0.73
# 010
MPN: 008573701
RETAINER RING
from £0.54
from £0.54
# 011
MPN: 008502011
BEARING
from £36.19
from £36.19
# 012
MPN: 0043002199
SHAFT
from £84.58
from £84.58
# 013
MPN: 008410810
WASHER
Supersession
Supersession
# 014
MPN: 008200801
NUT
Supersession
Supersession
# 015
MPN: 008200801
NUT
Supersession
Supersession
# 016
MPN: WHT001187
WASHER
from £0.55
from £0.55
This part replaces part number 008400502
# 017
MPN: 008700522
SCREW
from £0.53
from £0.53
# 018
MPN: 0043002200
STEERING COLUMN SUPPORT
from £724.64
from £724.64
# 019
MPN: 008700472
SCREW
from £0.53
from £0.53
# 020
MPN: 008700532
SCREW
from £0.53
from £0.53
# 021
MPN: WHT003040
WASHER
from £4.55
from £4.55
# 022
MPN: 004338318
PIN
from £6.43
from £6.43
# 023
MPN: 004337941
TOOTHED STRIKER
from £19.88
from £19.88
# 024
MPN: 0043004084
SPRING
from £92.45
from £92.45
# 025
MPN: 0043006539
LEVER
from £428.65
from £428.65
# 026
MPN: 0043005387
SLEEVE
from £331.64
from £331.64
# 027
MPN: 004337948
TOOTHED BUCKET
from £90.79
from £90.79
# 028
MPN: 004337947
SPRING
from £7.76
from £7.76
# 029
MPN: 004337952
WASHER
from £31.26
from £31.26
# 030
MPN: 0043006655
COVER
from £25.64
from £25.64
# 031
MPN: 004337946
SPACER
from £156.70
from £156.70
# 032
MPN: 004338060
POSITION BALL
from £20.57
from £20.57
# 033
MPN: 004338065
PIN
from £4.64
from £4.64
# 034
MPN: 008900408
PIN
# 035
MPN: 004337942
PIN
from £179.42
from £179.42
# 036
MPN: 004337939
SPACER
from £28.11
from £28.11
# 037
MPN: 410407295D
WASHER
from £17.99
from £17.99
# 038
MPN: 008201231
NUT
from £0.99
from £0.99
# 039
MPN: 009414416
SPRING
from £11.77
from £11.77
# 040
MPN: 008400606
WASHER
Supersession
Supersession
# 041
MPN: 004337944
BUSHING
from £19.27
from £19.27
# 042
MPN: 008700694
SCREW
from £0.93
from £0.93
# 043
MPN: 008100824
SCREW
from £0.93
from £0.93
# 044
MPN: 008410810
WASHER
Supersession
Supersession
