31.01.00 - Front Brakes

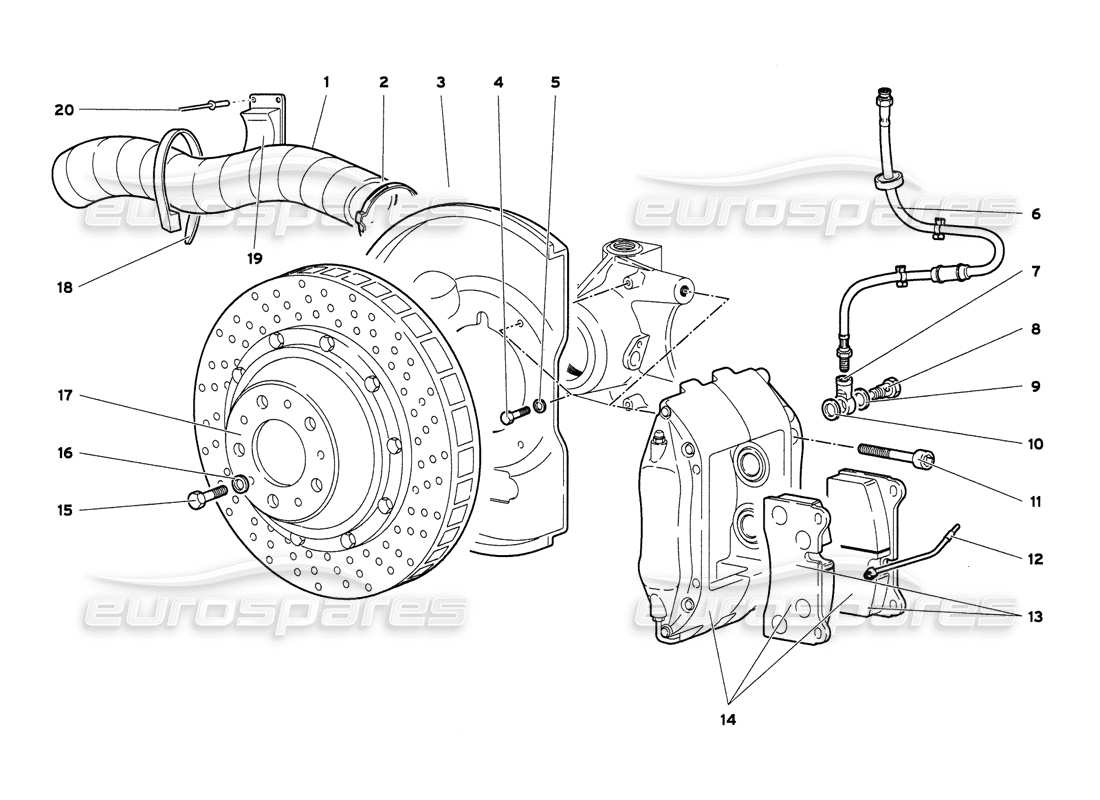

Lamborghini Diablo 6.0 (2001) Front Brakes Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009453133
HOSE
from £153.80
from £153.80
# 002
MPN: 008837501
CLAMP
from £9.60
from £9.60
# 003
MPN: 0031001180
LH CONVEYOR
from £256.20
from £256.20
# 003
MPN: 0031001183
RH CONVEYOR
from £140.91
from £140.91
# 004
MPN: N01020717
SCREW
from £0.52
from £0.52
This part replaces part number 008100504
# 005
MPN: 008410503
WASHER
Supersession
Supersession
# 006
MPN: 003229882
HOSE
from £104.89
from £104.89
# 007
MPN: 0031003992
CONNECTION
from £30.36
from £30.36
# 008
MPN: 0031003991
SCREW WITH HOLE
# 009
MPN: 008401022
WASHER
Supersession
Supersession
# 010
MPN: 008401022
WASHER
Supersession
Supersession
# 011
MPN: 008701224
SCREW
from £10.03
from £10.03
# 012
MPN: 003135643
CABLE
from £7.10
from £7.10
# 013
MPN: 0032000561
BRAKE PADS KIT
from £625.15
from £625.15
# 014
MPN: 0031001456
LH BRAKE CALIPER
from £708.06
from £708.06
# 014
MPN: 0031001457
RH BRAKE CALIPER
from £708.06
from £708.06
# 015
MPN: N01029315
SCREW
from £0.80
from £0.80
# 016
MPN: 008410810
WASHER
Supersession
Supersession
# 017
MPN: 0031016759
BRAKE DISC
(355 mm diameter)
from £1,452.60
from £1,452.60
# 018
MPN: 008830306
STRAP
Supersession
Supersession
# 019
MPN: 009411422
LH SUPPORT
Supersession
Supersession
# 019
MPN: 410805890
RH SUPPORT
from £198.01
from £198.01
# 020
MPN: 008954207
RIVET
