24.04.00 - Gearbox Oil Pump

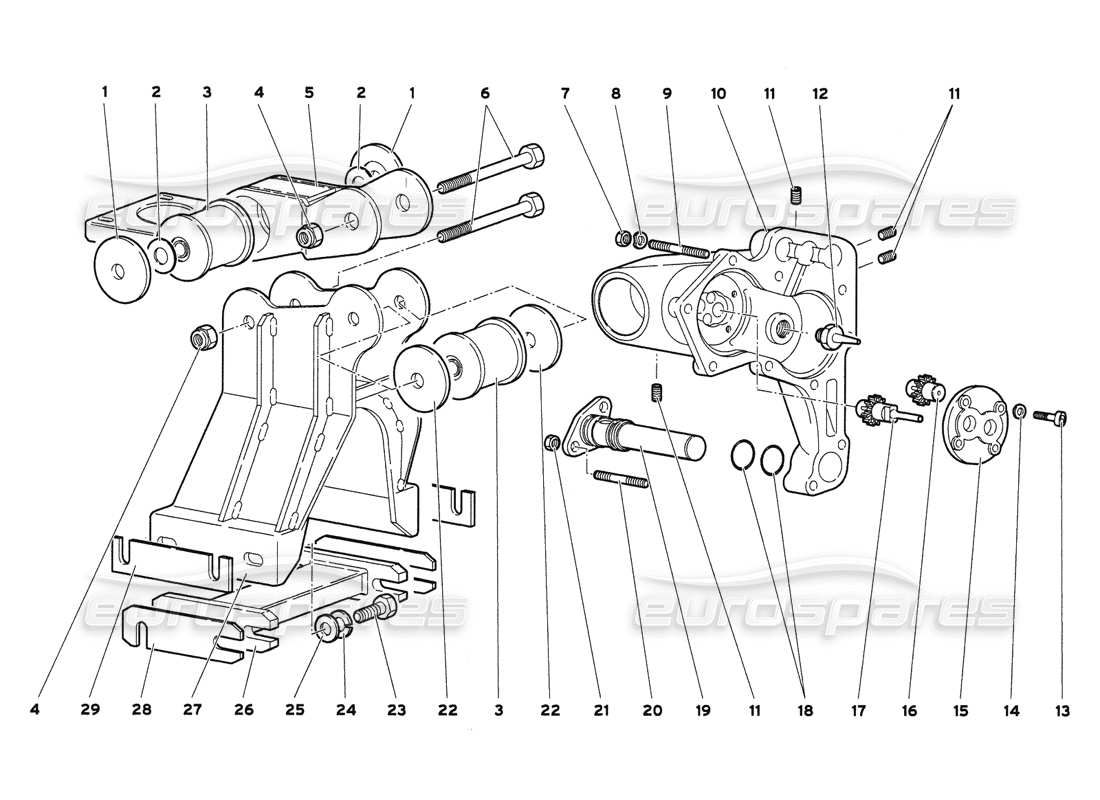

Lamborghini Diablo 6.0 (2001) Gearbox Oil Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002433939
SPACER
from £25.50
from £25.50
# 002
MPN: 008401421
WASHER
from £0.53
from £0.53
# 003
MPN: 0B9501144
SUPPORT MOUNT
from £115.28
from £115.28
This part replaces part number 008921408 - and 1 more. Click to view details
# 004
MPN: 008201414
NUT
from £12.98
from £12.98
# 005
MPN: 0024005345
SUPPORT
from £293.50
from £293.50
# 005
MPN: 0024007191
SUPPORT
(Valid for GB - March 2001)
from £439.43
from £439.43
# 005
MPN: 0024007191
SUPPORT
(Valid for AUSTRALIA - March 2001)
from £439.43
from £439.43
# 006
MPN: 008101411
SCREW
from £4.11
from £4.11
# 007
MPN: 008200801
NUT
Supersession
Supersession
# 008
MPN: 008410810
WASHER
Supersession
Supersession
# 009
MPN: 008300833
STUD
from £3.82
from £3.82
# 010
MPN: 002431783
COVER
from £1,128.37
from £1,128.37
# 011
MPN: 008701204
PLUG
from £1.37
from £1.37
# 012
MPN: 002425259
JET
from £12.85
from £12.85
# 013
MPN: 008700670
SCREW
Supersession
Supersession
# 014
MPN: 008410602
WASHER
from £27.52
from £27.52
# 015
MPN: 002431778
COVER
from £271.12
from £271.12
# 016
MPN: 002425185
DRIVEN GEAR
from £349.07
from £349.07
# 017
MPN: 002425184
DRIVING GEAR
from £309.26
from £309.26
# 018
MPN: 008602301
SEAL
from £1.18
from £1.18
# 019
MPN: 002425246
OIL FILTER
from £102.46
from £102.46
# 020
MPN: 008300840
STUD
from £2.27
from £2.27
# 021
MPN: 008200821
NUT
from £1.86
from £1.86
# 022
MPN: 008401415
WASHER
from £10.37
from £10.37
# 023
MPN: 008100862
SCREW
from £0.53
from £0.53
# 024
MPN: 008410806
WASHER
Supersession
Supersession
# 025
MPN: N90179103
WASHER
from £0.98
from £0.98
This part replaces part number 008400801
# 026
MPN: 002433990
CROSSRAIL
from £28.98
from £28.98
# 027
MPN: 002433346
SUPPORT
from £150.49
from £150.49
# 028
MPN: 002433991
SPACER
from £34.51
from £34.51
# 029
MPN: 004126766
SPACER
