23.02.00 - Front Differential Case

Lamborghini Diablo 6.0 (2001) Front Differential Case Parts Diagram

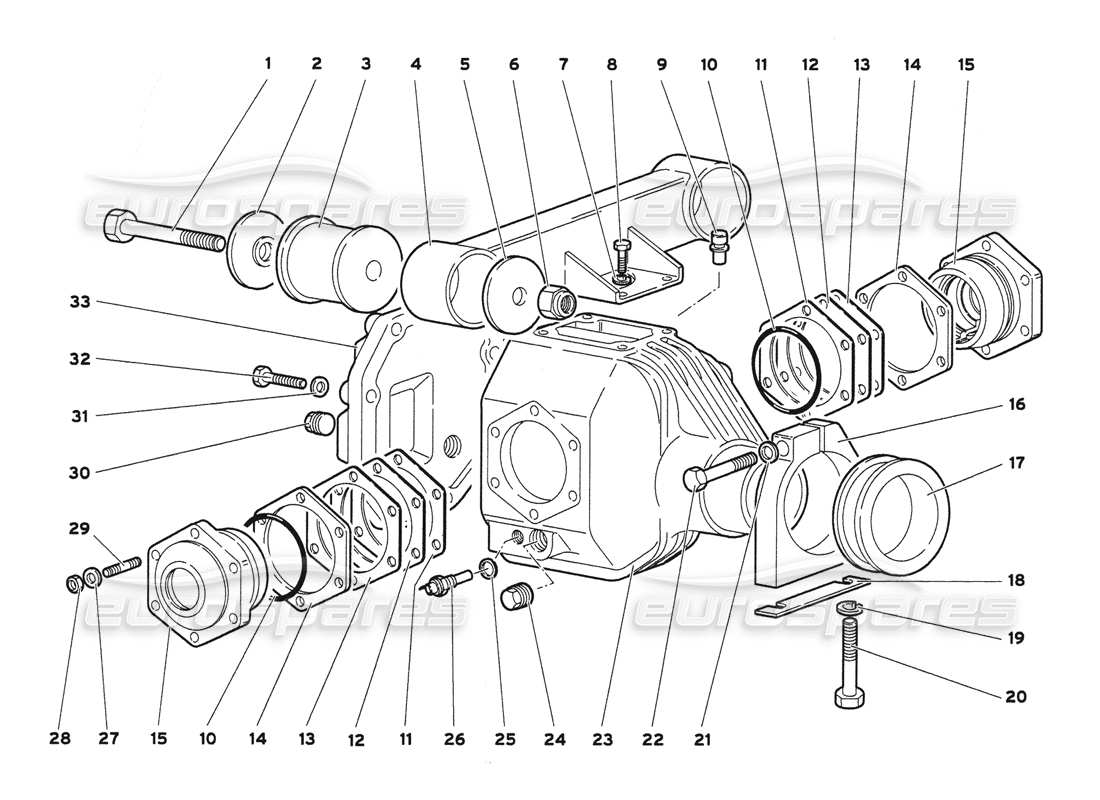

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 008101434
                                                                    SCREW
                                                                    from £1.86
                                                                    from £1.86
                                                                    # 002
                                                                    MPN: 0041006548
                                                                    WASHER
                                                                    from £6.43
                                                                    from £6.43
                                                                    # 003
                                                                    MPN: 0B9501144
                                                                    SUPPORT MOUNT
                                                                    from £116.24
                                                                    from £116.24
                                                                    This part replaces part number 008921408 - and 1 more. Click to view details
                                                                    # 004
                                                                    MPN: 002326142
                                                                    SUPPORT
                                                                    from £78.20
                                                                    from £78.20
                                                                    # 005
                                                                    MPN: 008401415
                                                                    WASHER
                                                                    from £10.37
                                                                    from £10.37
                                                                    # 006
                                                                    MPN: 008201407
                                                                    NUT
                                                                    from £1.64
                                                                    from £1.64
                                                                    # 007
                                                                    MPN: 008410810
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 008
                                                                    MPN: N01029315
                                                                    SCREW
                                                                    from £0.82
                                                                    from £0.82
                                                                    # 009
                                                                    MPN: 0B9507141
                                                                    VENT PIPE
                                                                    from £41.85
                                                                    from £41.85
                                                                    # 010
                                                                    MPN: WHT002158
                                                                    SEAL
                                                                    from £12.62
                                                                    from £12.62
                                                                    # 011
                                                                    MPN: 002334027
                                                                    1.0 MM SHIM
                                                                    # 011
                                                                    MPN: 002336158
                                                                    2.0 MM SHIM
                                                                    # 012
                                                                    MPN: 0023002142
                                                                    0.050 MM SHIM
                                                                    # 013
                                                                    MPN: 0023002122
                                                                    0.075 MM SHIM
                                                                    # 014
                                                                    MPN: 002334026
                                                                    2.0 MM SHIM
                                                                    # 015
                                                                    MPN: 002334044
                                                                    FLANGE
                                                                    from £136.81
                                                                    from £136.81
                                                                    # 016
                                                                    MPN: 002325441
                                                                    SILENTBLOC
                                                                    from £168.72
                                                                    from £168.72
                                                                    # 017
                                                                    MPN: 002325440
                                                                    BRACKET- COLLAR
                                                                    from £32.29
                                                                    from £32.29
                                                                    # 018
                                                                    MPN: 004134397
                                                                    1.5 MM SHIM
                                                                    from £6.67
                                                                    from £6.67
                                                                    # 018
                                                                    MPN: 004134398
                                                                    2.0 MM SHIM
                                                                    from £6.67
                                                                    from £6.67
                                                                    # 019
                                                                    MPN: WHT000768
                                                                    WASHER
                                                                    from £1.28
                                                                    from £1.28
                                                                    This part replaces part number 008410806 - and 1 more. Click to view details
                                                                    # 020
                                                                    MPN: 008101031
                                                                    SCREW
                                                                    Supersession
                                                                    Supersession
                                                                    # 021
                                                                    MPN: WHT000768
                                                                    WASHER
                                                                    from £1.31
                                                                    from £1.31
                                                                    This part replaces part number 008410806 - and 1 more. Click to view details
                                                                    # 022
                                                                    MPN: 008101018
                                                                    SCREW
                                                                    from £0.54
                                                                    from £0.54
                                                                    # 023
                                                                    MPN: 002325400
                                                                    Differential Case
                                                                    from £2,292.48
                                                                    from £2,292.48
                                                                    # 024
                                                                    MPN: 086301141A
                                                                    MAGNETIC PLUG
                                                                    from £22.53
                                                                    from £22.53
                                                                    # 025
                                                                    MPN: 008401425
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 026
                                                                    MPN: 006033681
                                                                    SENSOR
                                                                    Supersession
                                                                    Supersession
                                                                    # 027
                                                                    MPN: 008410810
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 028
                                                                    MPN: 008200801
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    # 029
                                                                    MPN: 008300922
                                                                    STUD
                                                                    from £2.12
                                                                    from £2.12
                                                                    # 030
                                                                    MPN: 086301141A
                                                                    PLUG
                                                                    from £22.53
                                                                    from £22.53
                                                                    # 031
                                                                    MPN: 008410810
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 032
                                                                    MPN: 008100821
                                                                    SCREW
                                                                    Supersession
                                                                    Supersession
                                                                    # 033
                                                                    MPN: 002325401
                                                                    DIFFERENTIAL CASE COVER
                                                                    from £151.32
                                                                    from £151.32
                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
