lamborghini diablo 6.0 (2001) crankcase parts diagram

18.01.00 - crankcase

Lamborghini Diablo 6.0 (2001) Crankcase Parts Diagram

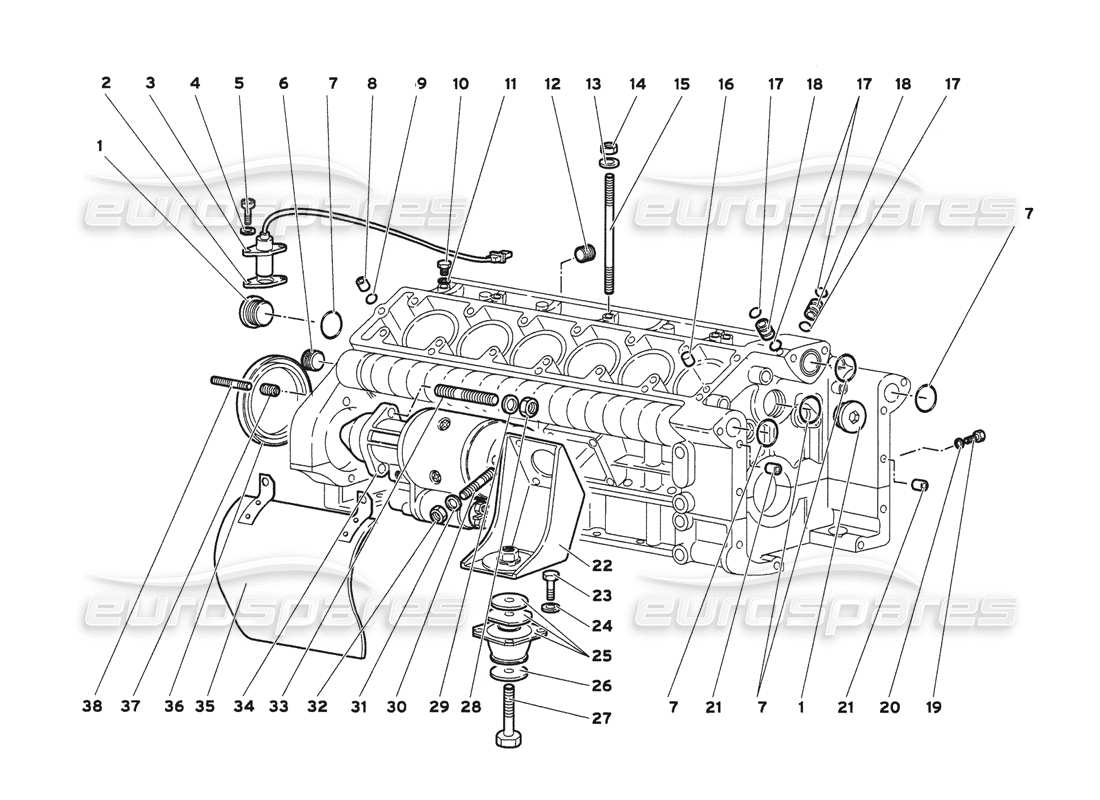

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 000
                                                                      MPN: M00Y1L522
                                                                      ENGINE - EXCHANGE
                                                                      # 001
                                                                      MPN: 001830023
                                                                      PLUG
                                                                      Supersession
                                                                      Supersession
                                                                      # 002
                                                                      MPN: 07M103899
                                                                      0.2 MM SHIM
                                                                      from £3.34
                                                                      from £3.34
                                                                      # 003
                                                                      MPN: 07M905381
                                                                      TIMING SENSOR
                                                                      (replaces: 001625411)
                                                                      from £393.41
                                                                      from £393.41
                                                                      This part replaces part number 001628403
                                                                      # 003
                                                                      MPN: 07M905381
                                                                      TIMING SENSOR
                                                                      from £393.41
                                                                      from £393.41
                                                                      This part replaces part number 001628403
                                                                      # 004
                                                                      MPN: 008410503
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 005
                                                                      MPN: 008700512
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 006
                                                                      MPN: 008933503
                                                                      PLUG
                                                                      # 007
                                                                      MPN: 008603503
                                                                      SEAL
                                                                      (Included in the engine gasket kit)
                                                                      from £2.61
                                                                      from £2.61
                                                                      This part replaces part number 008603501
                                                                      # 008
                                                                      MPN: 001832161
                                                                      DOWEL
                                                                      from £242.94
                                                                      from £242.94
                                                                      # 009
                                                                      MPN: 008601106
                                                                      SEAL
                                                                      (Included in the engine gasket kit)
                                                                      # 010
                                                                      MPN: 008101402
                                                                      PLUG
                                                                      from £18.20
                                                                      from £18.20
                                                                      # 011
                                                                      MPN: 008401425
                                                                      WASHER
                                                                      (Included in the engine gasket kit)
                                                                      Supersession
                                                                      Supersession
                                                                      # 012
                                                                      MPN: 008931209
                                                                      PLUG
                                                                      # 013
                                                                      MPN: N90179103
                                                                      WASHER
                                                                      from £1.04
                                                                      from £1.04
                                                                      This part replaces part number 008400801
                                                                      # 014
                                                                      MPN: 008200809
                                                                      NUT
                                                                      Supersession
                                                                      Supersession
                                                                      # 015
                                                                      MPN: 008300891
                                                                      STUD
                                                                      from £9.47
                                                                      from £9.47
                                                                      # 017
                                                                      MPN: 008600705
                                                                      SEAL
                                                                      (Included in the engine gasket kit)
                                                                      # 018
                                                                      MPN: 001833995
                                                                      DOWEL
                                                                      from £20.15
                                                                      from £20.15
                                                                      # 019
                                                                      MPN: 008700644
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 020
                                                                      MPN: WHT003041
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 008400609 - and 1 more. Click to view details
                                                                      # 021
                                                                      MPN: 008851304
                                                                      DOWEL
                                                                      from £39.64
                                                                      from £39.64
                                                                      # 022
                                                                      MPN: 001835941
                                                                      SUPPORT
                                                                      from £195.68
                                                                      from £195.68
                                                                      # 023
                                                                      MPN: 008101031
                                                                      SCREW
                                                                      Supersession
                                                                      Supersession
                                                                      # 024
                                                                      MPN: 008411014
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51

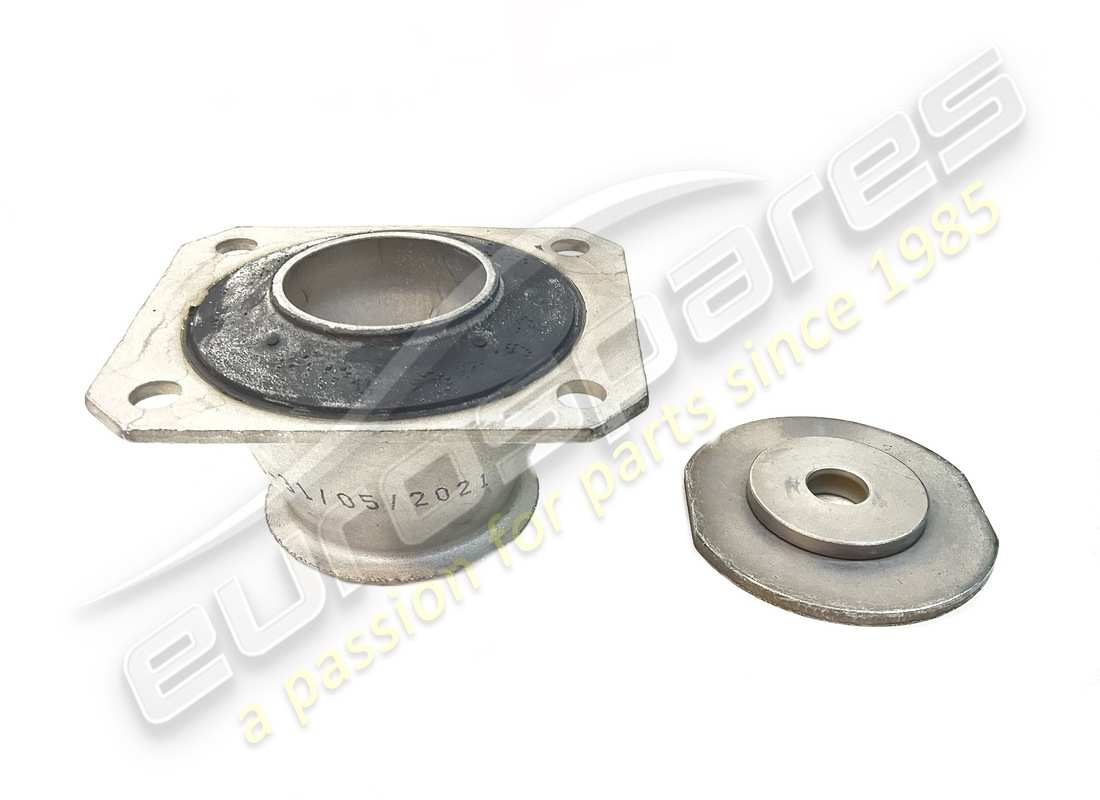

                                                                      # 025
                                                                      MPN: 400199703A
                                                                      FLEXIBLE SUPPORT
                                                                      from £256.80
                                                                      from £256.80
                                                                      This part replaces part number 400199703
                                                                      # 026
                                                                      MPN: 001831606
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 027
                                                                      MPN: 004131471
                                                                      SCREW
                                                                      from £21.18
                                                                      from £21.18
                                                                      # 028
                                                                      MPN: 001832869
                                                                      NUT
                                                                      # 029
                                                                      MPN: 008411302
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 030
                                                                      MPN: 008300814
                                                                      STUD
                                                                      from £4.15
                                                                      from £4.15
                                                                      # 031
                                                                      MPN: 008410806
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      # 032
                                                                      MPN: N01100845
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 008200801 - and 2 more. Click to view details
                                                                      # 033
                                                                      MPN: 008301249
                                                                      STUD
                                                                      from £9.63
                                                                      from £9.63
                                                                      # 034
                                                                      MPN: 07M911023
                                                                      STARTER MOTOR
                                                                      from £2,879.26
                                                                      from £2,879.26
                                                                      # 035
                                                                      MPN: 001635959
                                                                      SHIELD
                                                                      from £405.17
                                                                      from £405.17
                                                                      # 036
                                                                      MPN: 07M103089
                                                                      SEAL
                                                                      from £134.88
                                                                      from £134.88
                                                                      # 038
                                                                      MPN: WHT003028
                                                                      STUD
                                                                      from £12.54
                                                                      from £12.54
                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
