9429.01.01 - Rear Hood and Wing (Valid for June 1992 Version)

Lamborghini Diablo (1991) Rear Hood and Wing (Valid for June 1992 Version) Parts Diagram

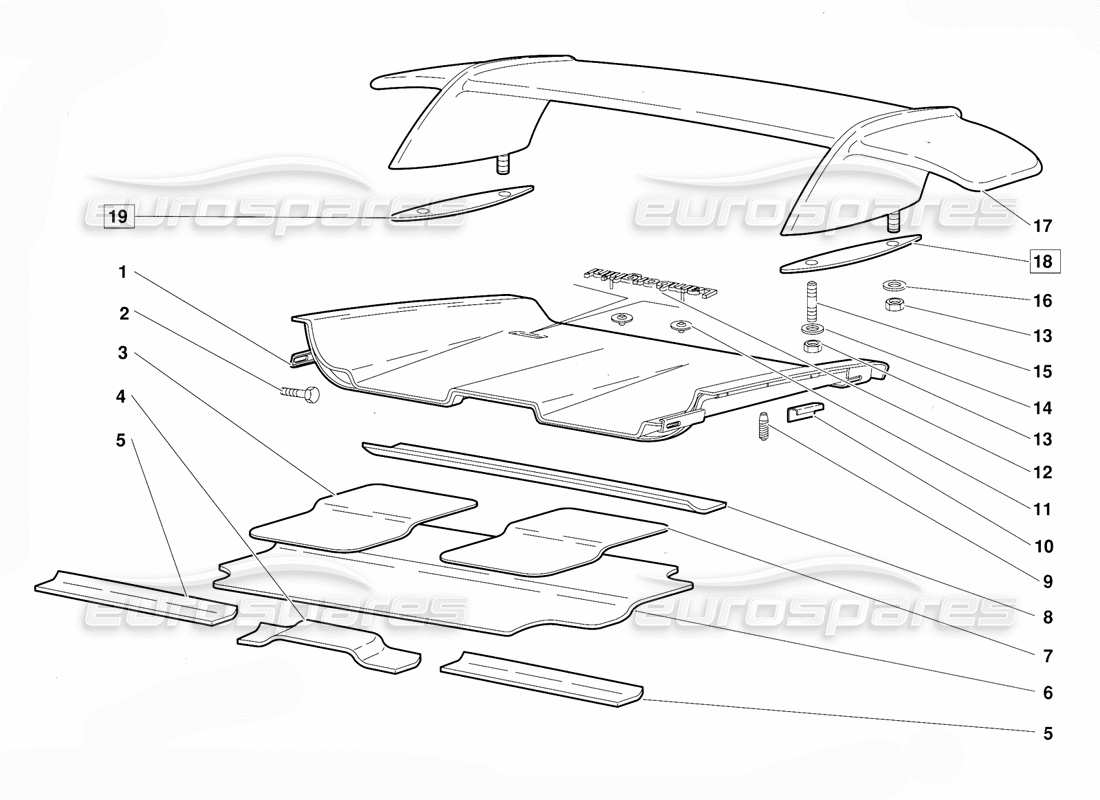

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009429001
REAR BONNET
(Valid for June 1992 version) COFANO POSTERIORE
# 002
MPN: N10718801
SCREW
(Valid for June 1992 version) VITE
from £0.59
from £0.59
# 003
MPN: 009455242
INSULATOR
(Valid for June 1992 version) ISOLANTE
from £46.61
from £46.61
# 004
MPN: 009429108
CHANNEL
(Valid for June 1992 version) PROFILATO
from £52.57
from £52.57
# 005
MPN: 009429109
CHANNEL
(Valid for June 1992 version) PROFILATO
from £37.48
from £37.48
# 006
MPN: 009455244
INSULATOR
(Valid for June 1992 version) ISOLANTE
from £379.58
from £379.58
# 007
MPN: 009455243
INSULATOR
(Valid for June 1992 version) ISOLANTE
from £46.61
from £46.61
# 008
MPN: 009429111
CHANNEL
(Valid for June 1992 version) PROFILATO
from £18.83
from £18.83
# 009
MPN: 009460214
RUBBER PAD
(Valid for June 1992 version) TAMPONE GOMMA
from £4.88
from £4.88
# 010
MPN: 009429112
PLATE
(Valid for June 1992 version) PIASTRA
from £32.84
from £32.84
# 011
MPN: 006128567
CLIP
(Valid for June 1992 version) MOLLETTA
from £0.86
from £0.86
# 012
MPN: 006128566
ORNAMENT
(Valid for June 1992 version) FREGIO Lamborghini
from £114.42
from £114.42
# 013
MPN: N02214812
NUT
(Valid for June 1992 version) DADO
from £1.10
from £1.10
This part replaces part number 008200612
# 014
MPN: 008400606
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 015
MPN: 008300663
STUD
(Valid for June 1992 version) PRIGIONIERO
from £15.72
from £15.72
# 016
MPN: 008410609
WASHER
(Valid for June 1992 version) RONDELLA
from £1.41
from £1.41
# 017
MPN: 009490000
REAR WING
(Valid for June 1992 version) ALETTONE (OPTIONAL)
from £4,485.48
from £4,485.48
# 018
MPN: 009490006
GASKET
(Valid for June 1992 version) GUARNIZIONE SINISTRA
from £106.13
from £106.13
# 019
MPN: 009490005
GASKET
(Valid for June 1992 version) GUARNIZIONE DESTRA
from £106.13
from £106.13
