Lamborghini Diablo (1991) electrical system (Valid for June 1992 Version) Parts Diagram

61.02.01 - Electrical System (Valid for June 1992 Version)

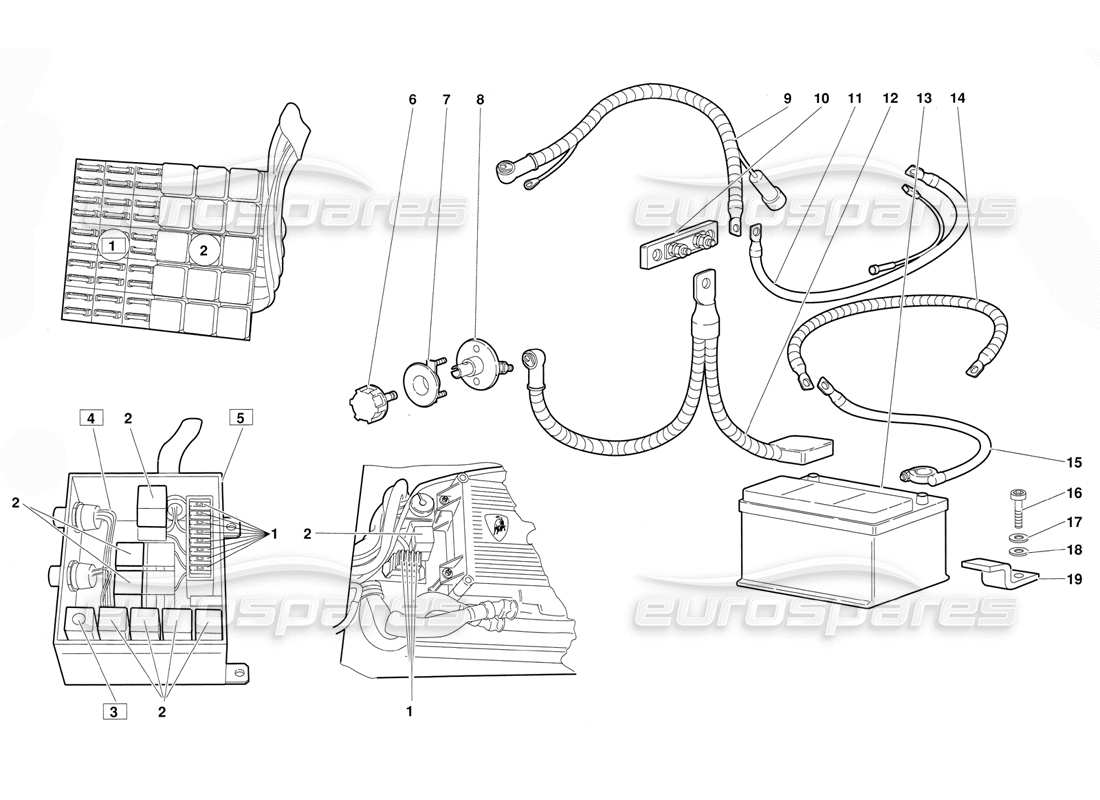

Lamborghini Diablo (1991) Electrical System (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001626192
FUSE
(Valid for June 1992 version) FUSIBILE DA 5 AMPERE
from £0.54
from £0.54
# 001
MPN: 001626193
FUSE
(Valid for June 1992 version) FUSIBILE DA 15 AMPERE
from £0.54
from £0.54
# 001
MPN: 001626697
FUSE
(Valid for June 1992 version) FUSIBILE DA 10 AMPERE
from £0.54
from £0.54
# 001
MPN: 001629257
FUSE
(Valid for June 1992 version) FUSIBILE DA 7.5 AMPERE
from £1.03
from £1.03
# 001
MPN: 001629258
FUSE
(Valid for June 1992 version) FUSIBILE DA 20 AMPERE
from £0.54
from £0.54
# 001
MPN: 001629259
FUSE
(Valid for June 1992 version) FUSIBILE DA 30 AMPERE
from £0.54
from £0.54
# 001
MPN: 001633966
FUSE
(Valid for June 1992 version) FUSIBILE DA 25 AMPERE
from £0.54
from £0.54
# 002
MPN: 006311154
RELAY
(Valid for June 1992 version) TELERUTTORE BOSCH 0.332.014.151
from £30.30
from £30.30
# 002
MPN: 006311155
RELAY
(Valid for June 1992 version) TELERUTTORE BOSCH 0.332.015.006
from £23.30
from £23.30
# 002
MPN: 006319913
RELAY
(Valid for June 1992 version) TELERUTTORE BOSCH 0.332.204.151
from £39.80
from £39.80
# 003
MPN: 006033965
RELAY
(Valid for June 1992 version) PORTADIODI ITALAMEC 454
from £47.68
from £47.68
# 004
MPN: 006130615
ELECT CABLE
(Valid for June 1992 version) CABLAGGIO (fina 12595)
# 004
MPN: 006132676
ELECT CABLE
(Valid for June 1992 version) CABLAGGIO (dalla 12596)
# 005
MPN: 006130086
RELAY HOUSING
(Valid for June 1992 version) SCATOLA TELER. POST, (fino 12595)
# 005
MPN: 006132677
RELAY HOUSING
(Valid for June 1992 version) SCATOLA TELER. POST, (dalla 12596)
# 006
MPN: 005931167
KNOB
(Valid for June 1992 version) POMELLO
from £56.47
from £56.47
# 007
MPN: 005931299
FLANGE
(Valid for June 1992 version) FLANGIA
from £146.75
from £146.75
# 008
MPN: 005931163
CONNECTING BLOCK
(Valid for June 1992 version) BLOCCHETTO CONNESSIONE
from £147.59
from £147.59
# 009
MPN: 006131371
ELECT CABLE
(Valid for June 1992 version) CAVO DAL MOT. AW. ALLA GIUNZIONE
from £271.95
from £271.95
# 010
MPN: 001606170
PLATE
(Valid for June 1992 version) GIUNZIONE
from £35.33
from £35.33
# 011
MPN: 006132507
ELECT CABLE
(Valid for June 1992 version) CAVO DA ALTERNATORE A GIUNZIONE
# 012
MPN: 006132157
ELECT CABLE
(Valid for June 1992 version) CAVO DA BATTERIA A GIUNZIONE
from £108.52
from £108.52
# 013
MPN: 001624948
Battery
(Valid for June 1992 version) BATTERIA
from £645.03
from £645.03
# 014
MPN: 006130080
ELECT CABLE
(Valid for June 1992 version) CAVO DAL MOTORE AL TELAIO
from £174.23
from £174.23
# 015
MPN: 006130078
ELECT CABLE
(Valid for June 1992 version) CAVO DALLA BATTERIA AL TELAIO
from £188.07
from £188.07
# 016
MPN: 008700815
SCREW
(Valid for June 1992 version) VITE
from £0.54
from £0.54
# 017
MPN: 008410819
WASHER
(Valid for June 1992 version) RONDELLA
from £1.55
from £1.55
# 018
MPN: 008400816
WASHER
(Valid for June 1992 version) RONDELLA
Supersession
Supersession
# 019
MPN: 004130608
BRACKET
(Valid for June 1992 version) STAFFA
from £18.29
from £18.29
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
