24.04.00 - Gearbox Oil Pump

Lamborghini Diablo (1991) Gearbox Oil Pump Parts Diagram

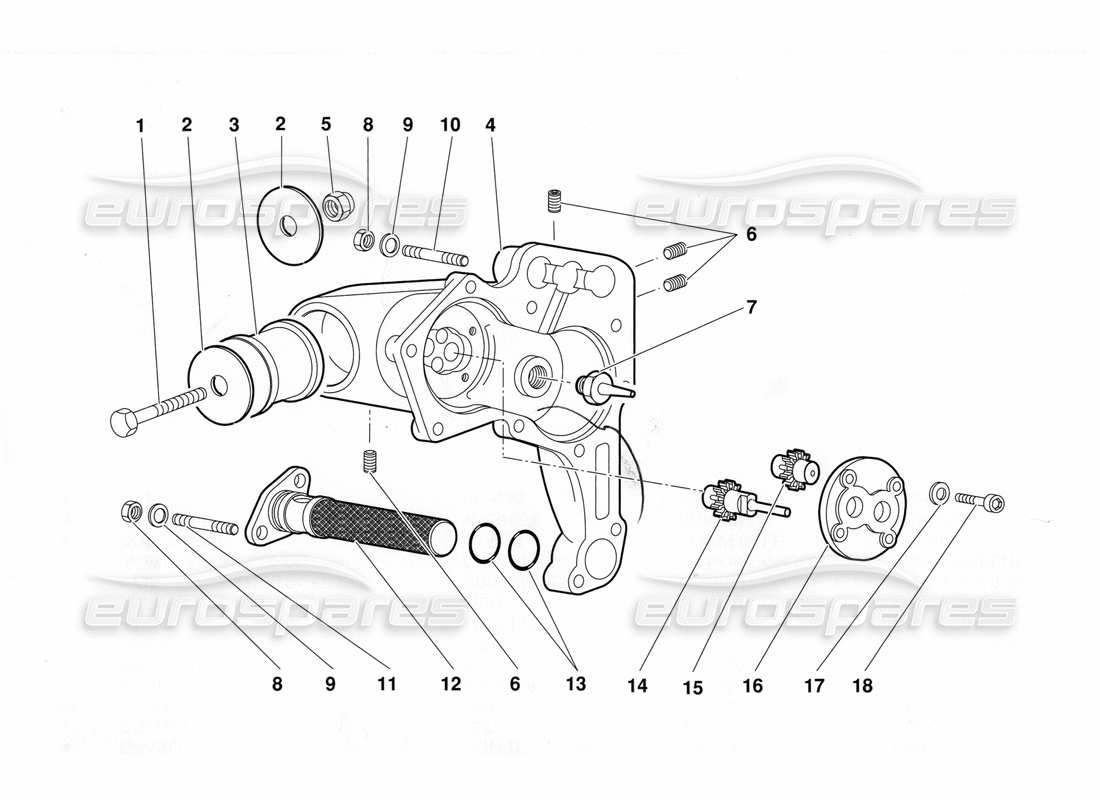

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008101430
    SCREW
    VITE
    from £2.20
    from £2.20
    SCREW 14X2X80UNI57378G ZG Genuine Lamborghini - New (to order)
    # 002
    MPN: 004130884
    SPACER
    DISTANZIALE
    from £26.66
    from £26.66
    MOBILE GEARBOX FRONTMOUNT SHIM Genuine Lamborghini - New (to order)
    # 003
    MPN: 0B9501144
    SUPPORT MOUNT
    from £115.28
    from £115.28
    This part replaces part number 008921408 - and 1 more. Click to view details
    SILENTBLOC 14X56,5X52,5 Genuine Lamborghini - New (to order)
    SILENTBLOC 14X56,5X52,5 Eurospares Approved Part - New In stock
    # 004
    MPN: 002431783
    COVER
    COPERCHIO
    from £1,128.37
    from £1,128.37
    GEARBOX FRONT BOX COVER & OIL PUMP Genuine Lamborghini - New (to order)
    # 005
    MPN: 008201416
    NUT
    DADO
    from £1.21
    from £1.21
    14X2X14 8G/Z NUT Genuine Lamborghini - New (to order)
    # 006
    MPN: 008701204
    DOWEL
    GRAND
    from £1.37
    from £1.37
    SCREW M12X12UNI5924/12K/ZD Genuine Lamborghini - New In stock
    # 007
    MPN: 002425259
    JET
    UGELLO
    from £12.85
    from £12.85
    SECONDARY SHAFT OIL DELIVERY N OZZLE Genuine Lamborghini - New (to order)
    # 008
    MPN: 008200806
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: WHT001514
    WASHER
    RONDELLA
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 010
    MPN: 008300840
    STUD
    PRIGIONIERO
    from £2.14
    from £2.14
    STUD M8X32 UNI 5911 8G Z Genuine Lamborghini - New (to order)
    # 011
    MPN: 008300833
    STUD
    PRIGIONIERO
    from £3.82
    from £3.82
    STUD M8X45 UNI 5911 8G Z Genuine Lamborghini - New (to order)
    # 012
    MPN: 002425246
    OIL FILTER
    FILTRO OLIO
    from £102.46
    from £102.46
    OIL PUMP FILTER Genuine Lamborghini - New (to order)
    # 013
    MPN: 008602301
    SEAL
    ANELLO TENUTA
    from £1.18
    from £1.18
    RING 24 MM OR Genuine Lamborghini - New In stock
    # 014
    MPN: 002425184
    DRIVING GEAR
    INGRANAGGIO CONDUTTORE
    from £309.26
    from £309.26
    OIL PUMP DRIVE GEAR Genuine Lamborghini - New (to order)
    # 015
    MPN: 002425185
    DRIVEN GEAR
    INGRANAGGIO CONDOTTO
    from £349.07
    from £349.07
    OIL PUMP IDLE GEAR Genuine Lamborghini - New (to order)
    # 016
    MPN: 002431778
    COVER
    COPERCHIO
    from £271.12
    from £271.12
    GEARBOX OIL PUMP COVER Genuine Lamborghini - New (to order)
    # 017
    MPN: 008410602
    WASHER
    RONDELLA
    from £27.52
    from £27.52
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
    # 018
    MPN: 008700670
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
