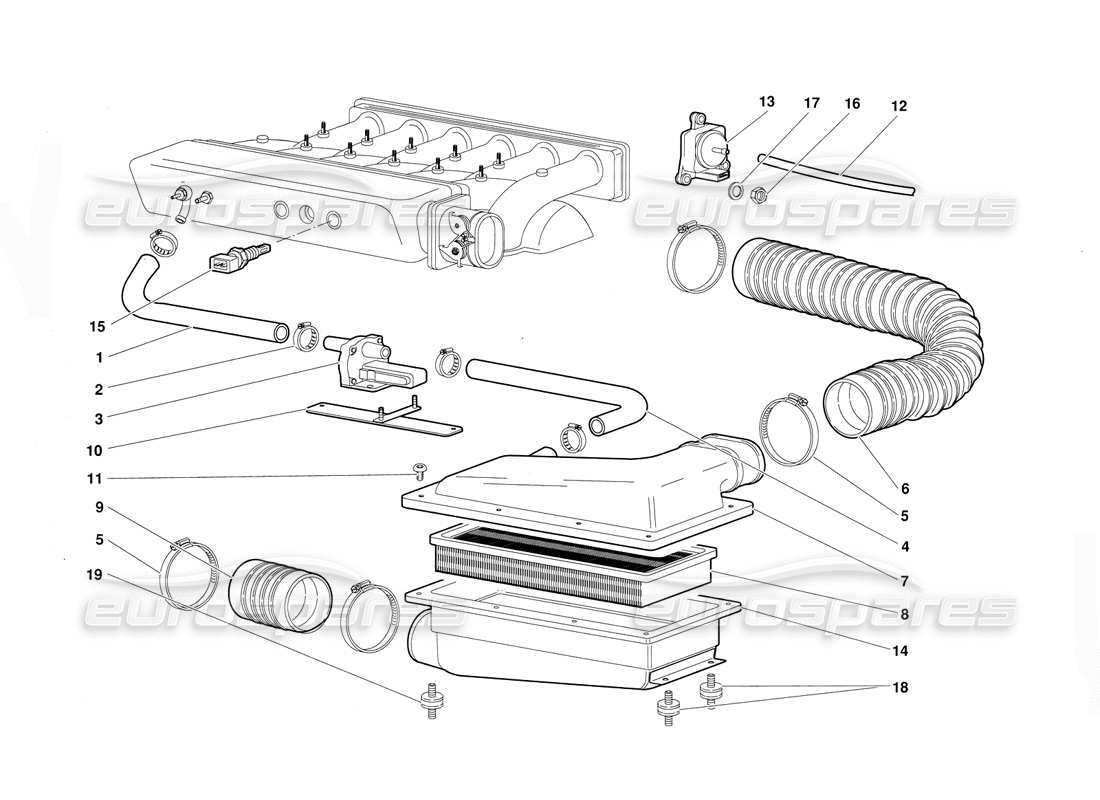

Lamborghini Diablo (1991) Air Filters Parts Diagram

13.02.00 - Air Filters

Lamborghini Diablo (1991) Air Filters Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 001330524
      LEFT PIPE
      TUBO SINISTRO
      from £117.60
      from £117.60
      # 001
      MPN: 001330525
      RIGHT PIPE
      TUBO DESTRO
      from £82.16
      from £82.16
      # 002
      MPN: 008832003
      STRAP
      FASCETTA
      from £27.78
      from £27.78
      # 003
      MPN: 002021139
      ADDITIONAL AIR VALVE
      VALVOLA ARIA ADDIZIONALE
      from £2,641.48
      from £2,641.48
      # 004
      MPN: 001331284
      RIGHT PIPE
      TUBO DESTRO
      from £18.25
      from £18.25
      # 004
      MPN: 001331285
      LEFT PIPE
      TUBO SINISTRO
      from £21.40
      from £21.40
      # 005
      MPN: 008838701
      STRAP
      FASCETTA
      from £4.40
      from £4.40
      # 006
      MPN: 001330522
      RIGHT FLEX. HOSE
      TUBO FLESSIBILE DESTRO
      from £67.49
      from £67.49
      # 006
      MPN: 001331286
      LEFT FLEX. HOSE
      TUBO FLESSIBILE SINISTRO
      from £72.06
      from £72.06
      # 007
      MPN: 001331380
      RIGHT COVER
      COPERCHIO DESTRO
      from £742.05
      from £742.05
      # 007
      MPN: 001331381
      LEFT COVER
      COPERCHIO SINISTRO
      from £742.05
      from £742.05
      # 008
      MPN: 07M133843
      AIR FILTER
      from £17.12
      from £17.12
      # 009
      MPN: 001330523
      FLEX. HOSE
      TUBO FLESSIBILE
      from £102.89
      from £102.89
      # 010
      MPN: 002028003
      RIGHT BRACKET
      STAFFA DESTRA
      from £122.30
      from £122.30
      # 010
      MPN: 002028004
      LEFT BRACKET
      STAFFA SINISTRA
      from £102.40
      from £102.40
      # 011
      MPN: 008700543
      SCREW
      VITE
      from £2.10
      from £2.10
      # 012
      MPN: 001330454
      PIPE
      Tubo
      from £88.72
      from £88.72
      # 013
      MPN: 07M919529A
      MAN. PRESS. SENSOR
      SENSORE PRESSIONE ASSOLUTA
      from £267.18
      from £267.18
      # 014
      MPN: 001331360
      RIGHT CASE
      SCATOLA FILTRO ARIA DESTRO
      from £229.67
      from £229.67
      # 014
      MPN: 001331361
      LEFT CASE
      SCATOLA FILTRO ARIA SINISTRO
      from £260.34
      from £260.34
      # 015
      MPN: 07M919529
      AIR TEMPERATURE SENSOR
      from £173.36
      from £173.36
      # 016
      MPN: N02214812
      NUT
      DADO
      from £1.08
      from £1.08
      This part replaces part number 008200612
      # 017
      MPN: 008400606
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 018
      MPN: 009411510

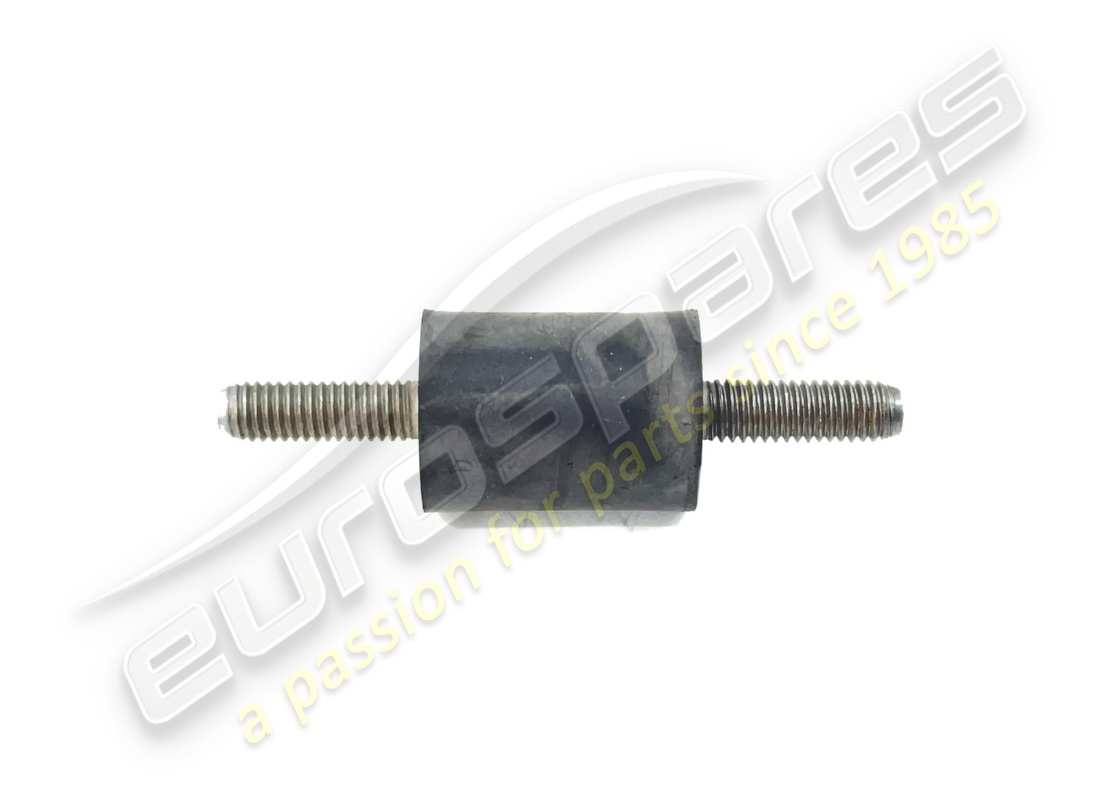

      ELASTIC SUPPORT
      SUPPORTO ELASTICO
      from £9.74
      from £9.74
      # 019
      MPN: 009411508
      ELASTIC SUPPORT
      SUPPORTO ELASTICO
      from £17.82
      from £17.82
