lamborghini diablo (1991) accessories for right cylinder head (valid for june 1992 version) parts diagram

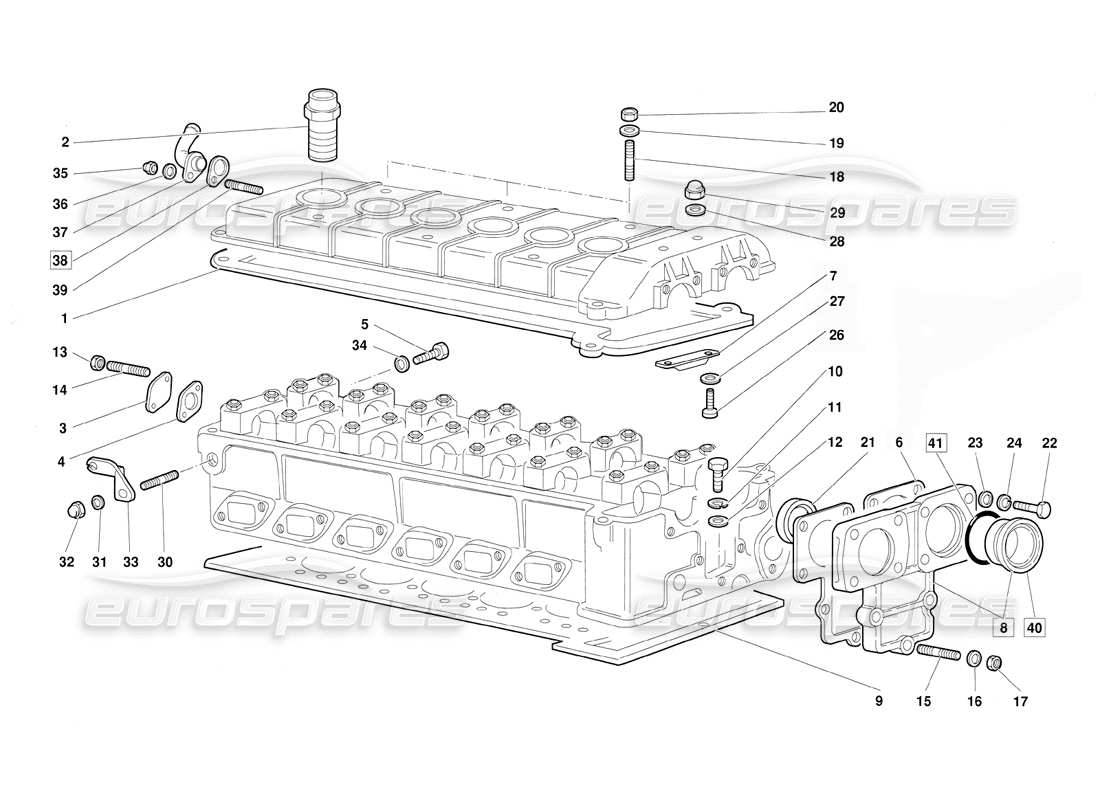

11.03.01 - Accessories for Right Cylinder Head (Valid for June 1992 Version)

Lamborghini Diablo (1991) Accessories for Right Cylinder Head (Valid for June 1992 Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 001120811
      CAM COVER GASKET
      from £113.59
      from £113.59
      # 002
      MPN: 001120857
      UNION
      (Valid for June 1992 version) BOCCHETTONE
      from £96.19
      from £96.19
      # 003
      MPN: 001121252
      FLANGE
      (Valid for June 1992 version) FLANGIA
      from £16.65
      from £16.65
      # 004
      MPN: 001121254
      GASKET
      (Valid for June 1992 version) GUARNIZIONE
      from £5.23
      from £5.23
      # 005
      MPN: 008100839
      SCREW
      (Valid for June 1992 version) VITE
      Supersession
      Supersession
      # 006
      MPN: 001125182
      GASKET
      (Valid for June 1992 version) GUARNIZIONE
      from £17.55
      from £17.55
      # 007
      MPN: 001131089
      CHAIN GUIDE
      (Valid for June 1992 version) GUIDA CATENA
      from £198.99
      from £198.99
      # 008
      MPN: 001129204
      COVER
      (Valid for June 1992 version) COPERCHIO (fino alla12362)
      from £394.66
      from £394.66
      # 008
      MPN: 001132876
      COVER
      (Valid for June 1992 version) COPERCHIO E BOCCOLA (dalla 12363) (particolare intercambiabile)
      from £441.09
      from £441.09
      # 009
      MPN: 001129852
      GASKET
      Supersession
      Supersession
      # 010
      MPN: 008100807
      SCREW
      (Valid for June 1992 version) VITE
      from £0.53
      from £0.53
      # 011
      MPN: 008410806
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      # 012
      MPN: 008400806
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      # 013
      MPN: 008200605
      NUT
      (Valid for June 1992 version) DADO
      from £1.84
      from £1.84
      # 014
      MPN: 008300610
      STUD
      (Valid for June 1992 version) PRIGIONIERO
      from £15.47
      from £15.47
      # 015
      MPN: 008300602
      STUD
      (Valid for June 1992 version) PRIGIONIERO
      from £4.19
      from £4.19
      # 016
      MPN: 008410602
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £26.39
      from £26.39
      # 017
      MPN: 008200605
      NUT
      (Valid for June 1992 version) DADO
      from £1.71
      from £1.71
      # 018
      MPN: 008300613
      STUD
      (Valid for June 1992 version) PRIGIONIERO
      from £3.07
      from £3.07
      # 019
      MPN: 008400606
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      # 020
      MPN: 008200605
      NUT
      (Valid for June 1992 version) DADO
      from £1.84
      from £1.84

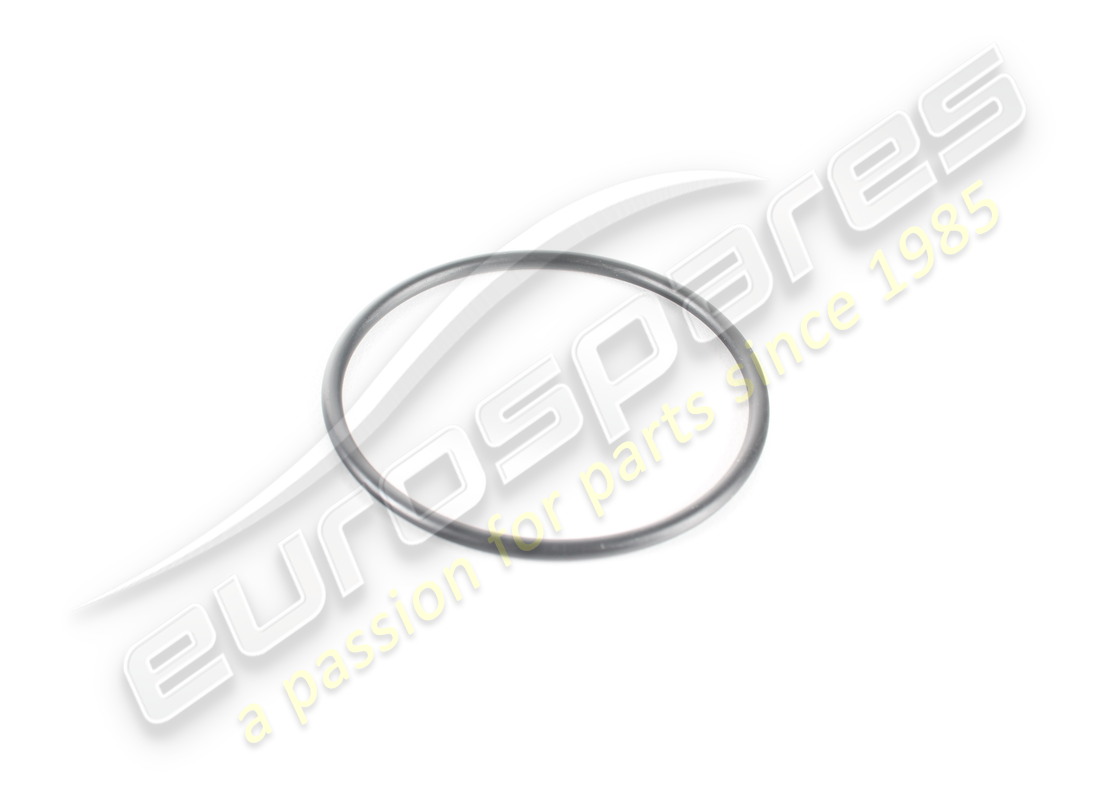

      # 021
      MPN: 008614211
      SEAL
      (Valid for June 1992 version) ANELLO TENUTA
      from £13.77
      from £13.77
      # 022
      MPN: 008700608
      SCREW
      (Valid for June 1992 version) VITE
      from £0.53
      from £0.53
      # 023
      MPN: 008400606
      WASHER
      (Valid for June 1992 version) RONDELLA
      Supersession
      Supersession
      # 024
      MPN: 008410611
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £0.53
      from £0.53
      # 025
      MPN: 008800604
      DOWEL
      (Valid for June 1992 version) GRAND
      Supersession
      Supersession
      # 026
      MPN: 008700661
      SCREW
      (Valid for June 1992 version) VITE
      from £8.00
      from £8.00
      # 027
      MPN: WHT003041
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400609 - and 1 more. Click to view details
      # 028
      MPN: 008410602
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £28.28
      from £28.28
      # 029
      MPN: 008200605
      NUT
      (Valid for June 1992 version) DADO
      from £1.84
      from £1.84
      # 030
      MPN: 008300844
      STUD
      (Valid for June 1992 version) PRIGIONIERO
      from £1.32
      from £1.32
      # 031
      MPN: N90179103
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £1.06
      from £1.06
      This part replaces part number 008400801
      # 032
      MPN: N0111849
      NUT
      (Valid for June 1992 version) DADO
      from £1.51
      from £1.51
      This part replaces part number 008200809
      # 033
      MPN: 001130730
      BRACKET
      (Valid for June 1992 version) FERMAGUAINA
      from £84.58
      from £84.58
      # 034
      MPN: 008400802
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £1.03
      from £1.03
      # 035
      MPN: 008200605
      NUT
      (Valid for June 1992 version) DADO
      from £1.89
      from £1.89
      # 036
      MPN: 008410602
      WASHER
      (Valid for June 1992 version) RONDELLA
      from £28.66
      from £28.66
      # 037
      MPN: 001132648
      PIPE
      (Valid for June 1992 version) TUBO
      # 038
      MPN: 001128365
      GASKET
      (Valid for June 1992 version) GUARNIZIONE (sostituisce 001129770)
      from £3.74
      from £3.74
      # 039
      MPN: 008300613
      STUD
      (Valid for June 1992 version) PRIGIONIERO
      from £3.07
      from £3.07
      # 040
      MPN: 001132875
      BUSHING
      (Valid for June 1992 version) BOCCOLA (dalla 12363)
      from £180.33
      from £180.33
      # 041
      MPN: 008605001
      SEAL
      (Valid for June 1992 version) ANELLO TENUTA (dalla 12363)
      from £0.82
      from £0.82
