lamborghini countach lp400 inner coating parts diagram

039 - Inner coating

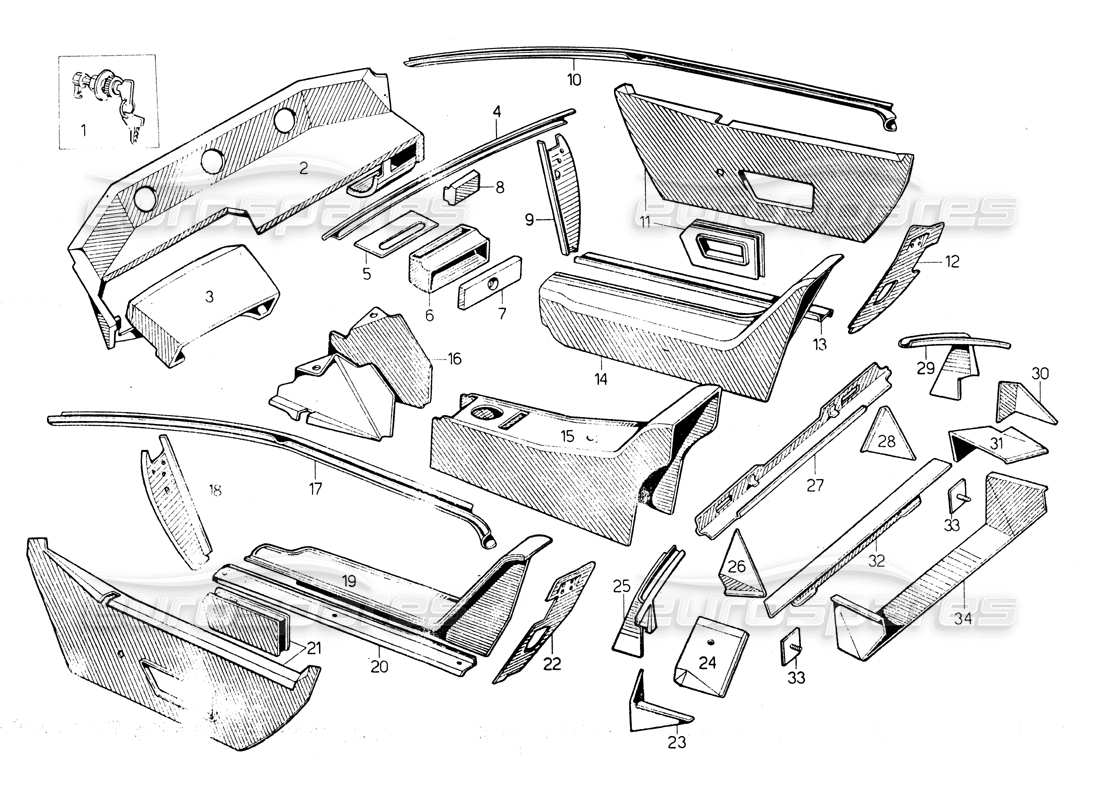

Lamborghini Countach LP400 Inner coating Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 006914165
                                                                      SERRATURA PER SPORTELLO SUL CRUSCETTA
                                                                      from £37.77
                                                                      from £37.77
                                                                      # 002
                                                                      MPN: 007014003
                                                                      CRUSCOTTO
                                                                      from £6,173.55
                                                                      from £6,173.55
                                                                      # 003
                                                                      MPN: 007014004
                                                                      CUPOLOTTO PORTA STRUMENTI
                                                                      # 004
                                                                      MPN: 007009002
                                                                      OSSATU INTERNA ANTERIORE
                                                                      # 005
                                                                      MPN: 007014002
                                                                      SPORTELLO INTERNO
                                                                      from £108.20
                                                                      from £108.20
                                                                      # 006
                                                                      MPN: 007014007
                                                                      CASSETTO
                                                                      from £487.66
                                                                      from £487.66
                                                                      # 007
                                                                      MPN: 007014005
                                                                      SPORTELLO ESTERNO
                                                                      from £116.73
                                                                      from £116.73
                                                                      # 008
                                                                      MPN: 007014006
                                                                      PANNELLO PORTA DESTRA
                                                                      # 009
                                                                      MPN: 007021060
                                                                      BATTUTA PER PORTA DESTRA
                                                                      from £161.25
                                                                      from £161.25
                                                                      # 010
                                                                      MPN: 007009004
                                                                      OSSATURA LATERALE DESTRA
                                                                      # 011
                                                                      MPN: 007021045
                                                                      PANNELLO PORTA DESTRA
                                                                      # 012
                                                                      MPN: 007021062
                                                                      RISCONTRO PER PORTA DESTRA
                                                                      from £155.88
                                                                      from £155.88
                                                                      # 013
                                                                      MPN: 007009006
                                                                      BATTICALCAGNO DESTRO
                                                                      # 014
                                                                      MPN: 007011011
                                                                      FIANCHELLO LATERALE DESTRO
                                                                      # 016
                                                                      MPN: 007011048
                                                                      FIANCHELLO COPRICONDIZIONATORE DESTRO
                                                                      # 016
                                                                      MPN: 007011049
                                                                      FIANCHELLO COPRICONDIZIONATORE SINISTRO
                                                                      # 017
                                                                      MPN: 007009005
                                                                      OSSATURA LATARALE SINISTRA
                                                                      # 018
                                                                      MPN: 007021061
                                                                      BATTUTA PER PORTA SINISTRA
                                                                      from £161.25
                                                                      from £161.25
                                                                      # 019
                                                                      MPN: 007011012
                                                                      FIANCHETTO LATERALE SINISTRO
                                                                      # 020
                                                                      MPN: 007009007
                                                                      BATTICALCAGNO
                                                                      # 021
                                                                      MPN: 007021046
                                                                      PANNELLO PORTA SINISTRA
                                                                      # 022
                                                                      MPN: 007021063
                                                                      RISCONTRO PER PORTA SINISTRA
                                                                      from £155.88
                                                                      from £155.88
                                                                      # 023
                                                                      MPN: 007009008
                                                                      ANGOLARE SINISTRO
                                                                      from £22.26
                                                                      from £22.26
                                                                      # 024
                                                                      MPN: 007009010
                                                                      COVER
                                                                      from £67.49
                                                                      from £67.49
                                                                      # 025
                                                                      MPN: 007009012
                                                                      OSSATURA POSTERIORE SINISTRA
                                                                      # 026
                                                                      MPN: 007009014
                                                                      LAMIERA POSTERIORE SINISTRA
                                                                      from £298.05
                                                                      from £298.05
                                                                      # 027
                                                                      MPN: 007009003
                                                                      OSSATURA INTERNA POSTERIORE
                                                                      from £33.42
                                                                      from £33.42
                                                                      # 028
                                                                      MPN: 007009015
                                                                      LAMIERA POSTERIORE DESTRA
                                                                      from £298.05
                                                                      from £298.05
                                                                      # 029
                                                                      MPN: 007009013
                                                                      OSSATURA POSTERIORE DESTRA
                                                                      # 030
                                                                      MPN: 007009009
                                                                      ANGOLARE DESTRO
                                                                      from £22.26
                                                                      from £22.26
                                                                      # 031
                                                                      MPN: 007009011
                                                                      COVER
                                                                      from £67.49
                                                                      from £67.49
                                                                      # 032
                                                                      MPN: 007009016
                                                                      LONGHERONE POSTERIORE
                                                                      # 033
                                                                      MPN: 007009017
                                                                      SUPPORT
                                                                      # 034
                                                                      MPN: 007009018
                                                                      PARATIA PER SCOLO ACQUA
