lamborghini countach lp400 chassis parts diagram

037 - CHASSIS

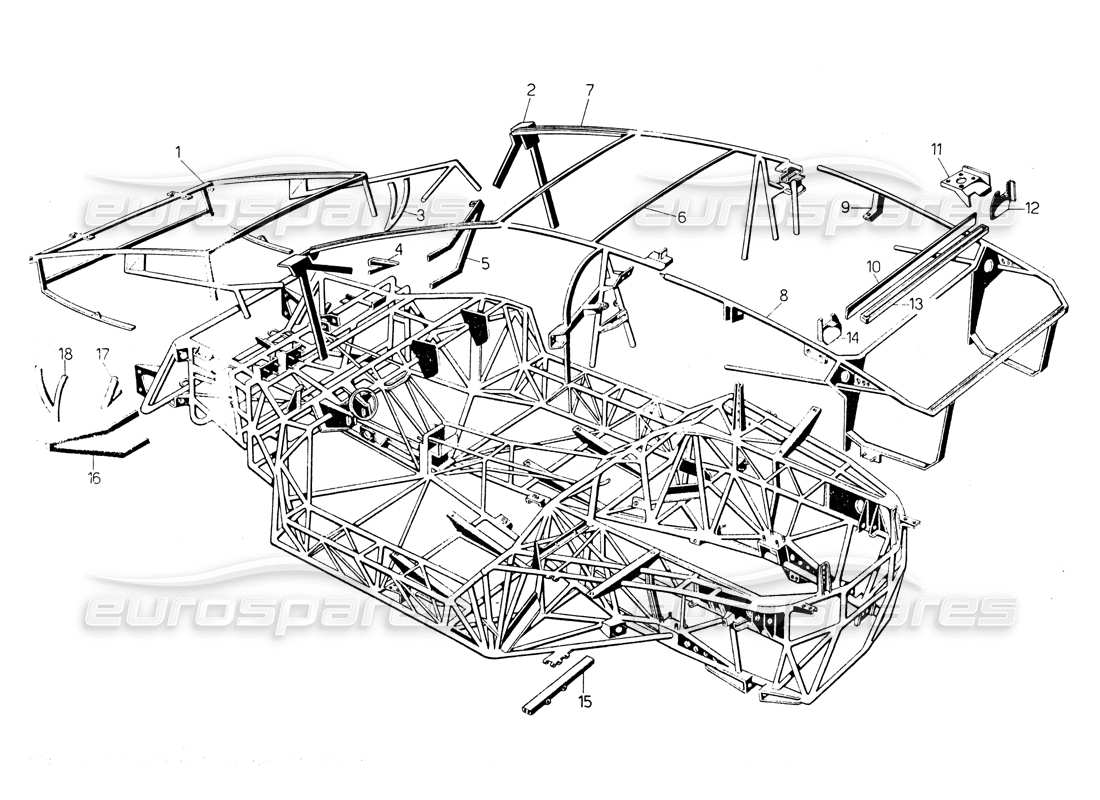

Lamborghini Countach LP400 Chassis Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 007011056
                                      SUPPORT
                                      from £2,686.32
                                      from £2,686.32
                                      # 002
                                      MPN: 007011057
                                      SUPPORT
                                      # 003
                                      MPN: 007011053
                                      SUPPORT
                                      from £234.64
                                      from £234.64
                                      # 004
                                      MPN: 007011055
                                      SUPPORT
                                      # 005
                                      MPN: 007011051
                                      SUPPORT
                                      from £778.53
                                      from £778.53
                                      # 006
                                      MPN: 007011059
                                      TUBO SUOPORTO PADIGLIONE
                                      # 007
                                      MPN: 007011058
                                      SUPPORT
                                      # 008
                                      MPN: 007011060
                                      TUBO PER PARAFANGHI POSTERIORI
                                      # 009
                                      MPN: 007011063
                                      ATTACCO RADIATORE
                                      # 010
                                      MPN: 007011065
                                      CORNICE
                                      from £136.81
                                      from £136.81
                                      # 011
                                      MPN: 007008001
                                      SUPPORT
                                      from £140.55
                                      from £140.55
                                      # 012
                                      MPN: 007011061
                                      SUPPORT
                                      # 013
                                      MPN: 007011064
                                      RACCOGLITORE ACQUA
                                      from £158.66
                                      from £158.66
                                      # 014
                                      MPN: 007011062
                                      SUPPORT
                                      # 015
                                      MPN: 004111312
                                      TRAVERSA
                                      from £234.64
                                      from £234.64
                                      # 016
                                      MPN: 007011050
                                      SUPPORT
                                      from £140.95
                                      from £140.95
                                      This part replaces part number 004129108
                                      # 017
                                      MPN: 007011054
                                      SUPPORT
                                      # 018
                                      MPN: 007011052
                                      SUPPORT
                                      from £127.10
                                      from £127.10
