027 - Air Conditioning

Lamborghini Countach LP400 Air Conditioning Parts Diagram

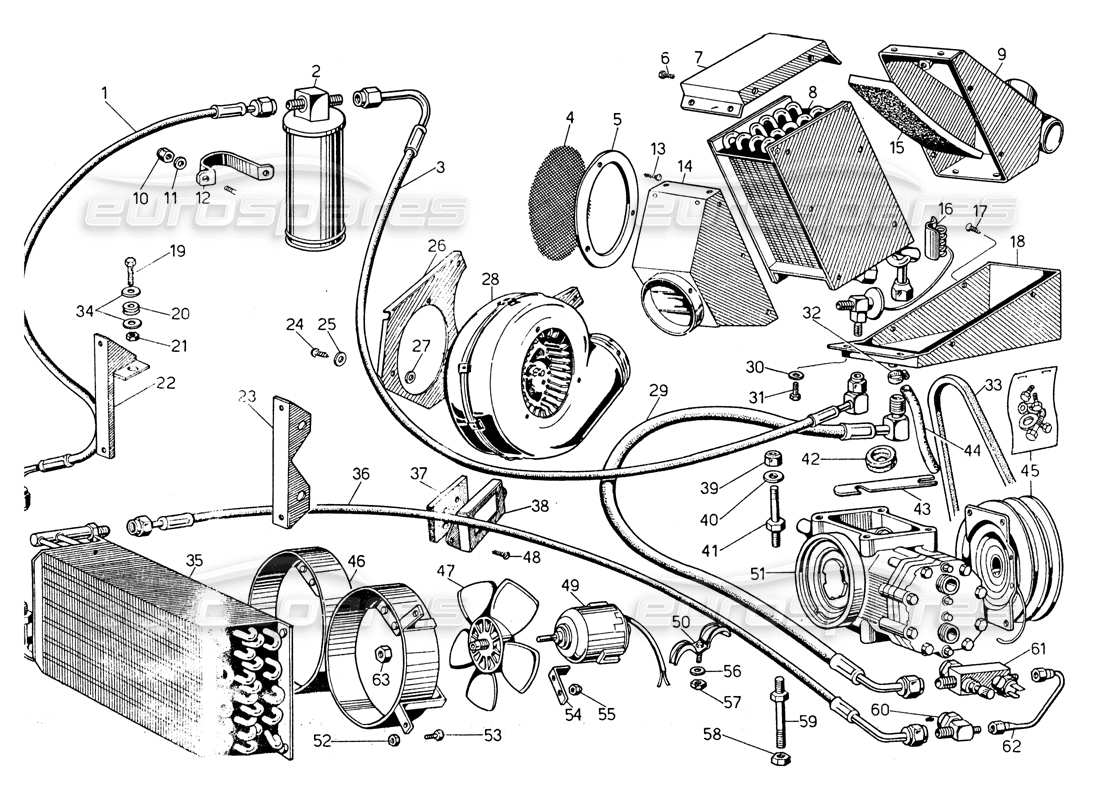

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                              #
                                                                                                                              Part number
                                                                                                                              Description
                                                                                                                              Key
                                                                                                                              Price
                                                                                                                              # 001
                                                                                                                              MPN: 004511342
                                                                                                                              PIPE / TUBE / HOSE
                                                                                                                              from £181.57
                                                                                                                              from £181.57
                                                                                                                              CONDENSER/CLEANER PIPE Genuine Lamborghini - New (to order)
                                                                                                                              # 002
                                                                                                                              MPN: 004505322/a
                                                                                                                              DEPURATURE
                                                                                                                              use : 004535411 - 004537126 - 004537127
                                                                                                                              DRYER BOTTLE Genuine Lamborghini - New (to order)
                                                                                                                              # 003
                                                                                                                              MPN: 004511343
                                                                                                                              PIPE / TUBE / HOSE
                                                                                                                              Lamborghini PART 004511343 Genuine Lamborghini - New (to order)
                                                                                                                              # 004
                                                                                                                              MPN: 004513146
                                                                                                                              RETE PROTEZIONE VENTOLA
                                                                                                                              from £61.03
                                                                                                                              from £61.03
                                                                                                                              SCROLL NET Genuine Lamborghini - New (to order)
                                                                                                                              # 005
                                                                                                                              MPN: 004513145
                                                                                                                              RING
                                                                                                                              from £38.98
                                                                                                                              from £38.98
                                                                                                                              RACK NET RETAINING RING Genuine Lamborghini - New (to order)
                                                                                                                              # 006
                                                                                                                              MPN: 008700414
                                                                                                                              SCREW
                                                                                                                              from £1.58
                                                                                                                              from £1.58
                                                                                                                              SCREW 4.2X6.5 ISO8 UNI6949 -B/ N Genuine Lamborghini - New In stock
                                                                                                                              # 007
                                                                                                                              MPN: 004508820
                                                                                                                              COVER
                                                                                                                              from £79.81
                                                                                                                              from £79.81
                                                                                                                              EVAPORATOR UPPER COVER Genuine Lamborghini - New (to order)
                                                                                                                              # 008
                                                                                                                              MPN: 004510897
                                                                                                                              PACCO RADIANTE EVAPORATORE
                                                                                                                              from £1,876.28
                                                                                                                              from £1,876.28
                                                                                                                              evaporator Genuine Lamborghini - New (to order)
                                                                                                                              # 009
                                                                                                                              MPN: 004513142
                                                                                                                              SUPPORT
                                                                                                                              from £428.88
                                                                                                                              from £428.88
                                                                                                                              EVAPORATOR VENT BRACKET Genuine Lamborghini - New (to order)
                                                                                                                              # 010
                                                                                                                              MPN: 008200606
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              Genuine Lamborghini (no longer available to order)
                                                                                                                              # 011
                                                                                                                              MPN: 008400606
                                                                                                                              WASHER
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              Genuine Lamborghini (no longer available to order)
                                                                                                                              # 012
                                                                                                                              MPN: 004508813
                                                                                                                              FASCETTA FISAGGIO DEPURATORE
                                                                                                                              from £8.58
                                                                                                                              from £8.58
                                                                                                                              CLEANER CLAMP Genuine Lamborghini - New (to order)
                                                                                                                              # 013
                                                                                                                              MPN: 008700414
                                                                                                                              SCREW
                                                                                                                              from £1.62
                                                                                                                              from £1.62
                                                                                                                              SCREW 4.2X6.5 ISO8 UNI6949 -B/ N Genuine Lamborghini - New In stock
                                                                                                                              # 014
                                                                                                                              MPN: 004513150
                                                                                                                              CONVOGLIATORE FRA CHIOCCIOLA ED EVAPORATORE
                                                                                                                              from £62.43
                                                                                                                              from £62.43
                                                                                                                              EVAPORATOR MANIFOLD Genuine Lamborghini - New (to order)
                                                                                                                              # 015
                                                                                                                              MPN: 004508824
                                                                                                                              FELTRO
                                                                                                                              FELTRO Genuine Lamborghini - New (to order)
                                                                                                                              # 016
                                                                                                                              MPN: 004506860
                                                                                                                              VALVOLA ESPANSIONE
                                                                                                                              from £59.40
                                                                                                                              from £59.40
                                                                                                                              EXPANSION VALVE Genuine Lamborghini - New (to order)
                                                                                                                              # 017
                                                                                                                              MPN: 008700414
                                                                                                                              SCREW
                                                                                                                              from £1.58
                                                                                                                              from £1.58
                                                                                                                              SCREW 4.2X6.5 ISO8 UNI6949 -B/ N Genuine Lamborghini - New In stock
                                                                                                                              # 018
                                                                                                                              MPN: 004513147
                                                                                                                              CONTENITORE CONDENSA
                                                                                                                              from £121.88
                                                                                                                              from £121.88
                                                                                                                              EVAPORATOR CONDENSE HOUSING Genuine Lamborghini - New (to order)
                                                                                                                              # 019
                                                                                                                              MPN: 008100618
                                                                                                                              BOLT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              Genuine Lamborghini (no longer available to order)
                                                                                                                              # 020
                                                                                                                              MPN: 008610701
                                                                                                                              RUBBER GROMMET
                                                                                                                              from £18.62
                                                                                                                              from £18.62
                                                                                                                              GROMMET 7X13X2 MM Genuine Lamborghini - New (to order)
                                                                                                                              # 021
                                                                                                                              MPN: 008200604
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              Genuine Lamborghini (no longer available to order)
                                                                                                                              # 022
                                                                                                                              MPN: 004511115
                                                                                                                              BRACKET / SUPPORT
                                                                                                                              from £15.46
                                                                                                                              from £15.46
                                                                                                                              CONDENSER BRACKET Genuine Lamborghini - New (to order)
                                                                                                                              CONDENSER BRACKET Genuine Lamborghini - Used In stock
                                                                                                                              # 023
                                                                                                                              MPN: 004511114
                                                                                                                              BRACKET / SUPPORT
                                                                                                                              from £36.85
                                                                                                                              from £36.85
                                                                                                                              CONDENSER BRACKET Genuine Lamborghini - New (to order)
                                                                                                                              CONDENSER BRACKET Genuine Lamborghini - Used In stock
                                                                                                                              # 024
                                                                                                                              MPN: 008700306
                                                                                                                              SCREW
                                                                                                                              from £1.62
                                                                                                                              from £1.62
                                                                                                                              SCREW KNIP B3.5X16DIN7971 Genuine Lamborghini - New (to order)
                                                                                                                              # 025
                                                                                                                              MPN: 008400608
                                                                                                                              WASHER
                                                                                                                              from £11.53
                                                                                                                              from £11.53
                                                                                                                              FLAT WASHER D.6.4X3.5X11 Genuine Lamborghini - New (to order)
                                                                                                                              # 026
                                                                                                                              MPN: 004513148
                                                                                                                              SUPPORT
                                                                                                                              from £21.15
                                                                                                                              from £21.15
                                                                                                                              CONDITIONER SOLENOIDVALVE BRAC KET Genuine Lamborghini - New (to order)
                                                                                                                              # 027
                                                                                                                              MPN: WHT001187
                                                                                                                              WASHER
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              This part replaces part number 008400502
                                                                                                                              WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
                                                                                                                              # 028
                                                                                                                              MPN: 004513144
                                                                                                                              ELETTROVENTILATORE COMPLETO
                                                                                                                              Lamborghini PART 004513144 Genuine Lamborghini - New (to order)
                                                                                                                              # 029
                                                                                                                              MPN: 004511344
                                                                                                                              PIPE / TUBE / HOSE
                                                                                                                              from £412.08
                                                                                                                              from £412.08
                                                                                                                              EVAPORATOR/ISOBAR VALVE PIPE Genuine Lamborghini - New (to order)
                                                                                                                              # 030
                                                                                                                              MPN: WHT002961
                                                                                                                              WASHER
                                                                                                                              from £0.54
                                                                                                                              from £0.54
                                                                                                                              This part replaces part number 008400607
                                                                                                                              WASHER Genuine Lamborghini - New In stock
                                                                                                                              # 031
                                                                                                                              MPN: 008100622
                                                                                                                              BOLT
                                                                                                                              from £3.65
                                                                                                                              from £3.65
                                                                                                                              SCREW M6X12 UNI 5739/8G Genuine Lamborghini - New (to order)
                                                                                                                              # 032
                                                                                                                              MPN: 008830901
                                                                                                                              JUBILEE CLIP
                                                                                                                              from £4.07
                                                                                                                              from £4.07
                                                                                                                              CLAMP Genuine Lamborghini - New (to order)
                                                                                                                              # 033
                                                                                                                              MPN: 004504532
                                                                                                                              CINGHIA COMANDO CONDIZIONATORE
                                                                                                                              from £96.75
                                                                                                                              from £96.75
                                                                                                                              A/C BELT (004504532) Eurospares Approved Part - New (to order)
                                                                                                                              A/C BELT Genuine Lamborghini - New (to order)
                                                                                                                              # 034
                                                                                                                              MPN: 008400706
                                                                                                                              WASHER
                                                                                                                              WASHER Genuine Lamborghini - New (to order)
                                                                                                                              # 035
                                                                                                                              MPN: 004510564
                                                                                                                              CONDENSOR
                                                                                                                              from £444.41
                                                                                                                              from £444.41
                                                                                                                              CONDENSER Genuine Lamborghini - New (to order)
                                                                                                                              # 036
                                                                                                                              MPN: 004511341
                                                                                                                              PIPE / TUBE / HOSE
                                                                                                                              PIPE / TUBE / HOSE Genuine Lamborghini - New (to order)
                                                                                                                              # 037
                                                                                                                              MPN: 004510998
                                                                                                                              SEALING RUBBER Tubi
                                                                                                                              from £18.17
                                                                                                                              from £18.17
                                                                                                                              CONDITIONER PIPES SEALING RUBB ER Genuine Lamborghini - New (to order)
                                                                                                                              # 038
                                                                                                                              MPN: 004204677
                                                                                                                              CONTENITORE
                                                                                                                              CONTENITORE Genuine Lamborghini - New (to order)
                                                                                                                              # 039
                                                                                                                              MPN: 008201008
                                                                                                                              NUT
                                                                                                                              from £0.55
                                                                                                                              from £0.55
                                                                                                                              NUT Genuine Lamborghini - New In stock
                                                                                                                              # 040
                                                                                                                              MPN: 008401006
                                                                                                                              WASHER
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
                                                                                                                              # 041
                                                                                                                              MPN: 004504533
                                                                                                                              COLONNETTA SUPPORTO COMPRESSORE
                                                                                                                              from £53.73
                                                                                                                              from £53.73
                                                                                                                              COMPRESSOR BRACKET STUD BOLTS Genuine Lamborghini - New (to order)
                                                                                                                              # 042
                                                                                                                              MPN: 008611002
                                                                                                                              RUBBER GROMMET
                                                                                                                              from £13.87
                                                                                                                              from £13.87
                                                                                                                              GROMMET 22X38X10 MM Genuine Lamborghini - New (to order)
                                                                                                                              # 043
                                                                                                                              MPN: 004504637
                                                                                                                              PLATE
                                                                                                                              from £5.02
                                                                                                                              from £5.02
                                                                                                                              COMPRESSOR SHIM PLATE Genuine Lamborghini - New (to order)
                                                                                                                              # 044
                                                                                                                              MPN: 004511004
                                                                                                                              TUBO SCARICA CONDENSA
                                                                                                                              Lamborghini PART 004511004 Genuine Lamborghini - New (to order)
                                                                                                                              # 045
                                                                                                                              MPN: 004505446
                                                                                                                              GIUNTO ELETTROMAGNETICO
                                                                                                                              Lamborghini PART 004505446 Genuine Lamborghini - New (to order)
                                                                                                                              # 046
                                                                                                                              MPN: 004510563
                                                                                                                              SUPPORT
                                                                                                                              from £500.63
                                                                                                                              from £500.63
                                                                                                                              CONDENSER MOTOR BRACKET Genuine Lamborghini - New (to order)
                                                                                                                              # 047
                                                                                                                              MPN: 004504908
                                                                                                                              VENTOLA PER MOTORINO CONDENSATORE
                                                                                                                              from £483.34
                                                                                                                              from £483.34
                                                                                                                              CONDIT FAN Genuine Lamborghini - New (to order)
                                                                                                                              # 048
                                                                                                                              MPN: 008700506
                                                                                                                              SCREW
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
                                                                                                                              # 049
                                                                                                                              MPN: 004508071
                                                                                                                              MOTORINO, CONDENSATORE
                                                                                                                              from £538.67
                                                                                                                              from £538.67
                                                                                                                              CONDENSER MOTOR & FAN Genuine Lamborghini - New (to order)
                                                                                                                              # 050
                                                                                                                              MPN: 004505977
                                                                                                                              FIXING CLAMP Tubi
                                                                                                                              from £9.52
                                                                                                                              from £9.52
                                                                                                                              CONDITIONER PIPE CLAMP Genuine Lamborghini - New (to order)
                                                                                                                              # 051
                                                                                                                              MPN: 004511439
                                                                                                                              COMPRESSORE BICILINDRICO
                                                                                                                              Lamborghini PART 004511439 Genuine Lamborghini - New (to order)
                                                                                                                              # 052
                                                                                                                              MPN: 008200609
                                                                                                                              NUT
                                                                                                                              Supersession
                                                                                                                              Supersession
                                                                                                                              Genuine Lamborghini (no longer available to order)
                                                                                                                              # 053
                                                                                                                              MPN: 008100613
                                                                                                                              BOLT
                                                                                                                              from £0.50
                                                                                                                              from £0.50
                                                                                                                              SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                                                                              SCREW M6X10 UNI 5739/5S/Z Genuine Lamborghini - New (other) In stock
                                                                                                                              BULL.M6X10 UNI 5739 5S
                                                                                                                              # 054
                                                                                                                              MPN: 004508088
                                                                                                                              PLATE
                                                                                                                              from £16.50
                                                                                                                              from £16.50
                                                                                                                              CONDITIONER MOTOR PLATE Genuine Lamborghini - New (to order)
                                                                                                                              # 055
                                                                                                                              MPN: N0211963
                                                                                                                              NUT
                                                                                                                              from £0.48
                                                                                                                              from £0.48
                                                                                                                              HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
                                                                                                                              hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
                                                                                                                              # 056
                                                                                                                              MPN: 008400501
                                                                                                                              WASHER
                                                                                                                              from £0.54
                                                                                                                              from £0.54
                                                                                                                              WASHER 5.8X18X2 Genuine Lamborghini - New In stock
                                                                                                                              # 057
                                                                                                                              MPN: N0211963
                                                                                                                              NUT
                                                                                                                              from £0.53
                                                                                                                              from £0.53
                                                                                                                              HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
                                                                                                                              hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
                                                                                                                              # 058
                                                                                                                              MPN: 008201011
                                                                                                                              DADA
                                                                                                                              from £11.53
                                                                                                                              from £11.53
                                                                                                                              M10 UNI 5589-65/8G NUT Genuine Lamborghini - New (to order)
                                                                                                                              # 059
                                                                                                                              MPN: 004510937
                                                                                                                              COLONNETTA SOSTEGNO COMPRESSORE
                                                                                                                              from £18.36
                                                                                                                              from £18.36
                                                                                                                              COMPRESSOR BOLTS Genuine Lamborghini - New (to order)
                                                                                                                              # 061
                                                                                                                              MPN: 004510015
                                                                                                                              VALVOLA ISOBARICA
                                                                                                                              from £125.00
                                                                                                                              from £125.00
                                                                                                                              ISOBAR VALVE Genuine Lamborghini - New (to order)
                                                                                                                              ISOBAR VALVE Genuine Lamborghini - Used In stock
                                                                                                                              # 062
                                                                                                                              MPN: 004511212
                                                                                                                              PIPE / TUBE / HOSE
                                                                                                                              from £48.43
                                                                                                                              from £48.43
                                                                                                                              ISOBAR VALVE/COMPRESSOR PIPE Genuine Lamborghini - New (to order)
                                                                                                                              # 063
                                                                                                                              MPN: 004504909
                                                                                                                              NUT
                                                                                                                              from £7.10
                                                                                                                              from £7.10
                                                                                                                              FAN NUT Genuine Lamborghini - New (to order)
