026 - HEATER

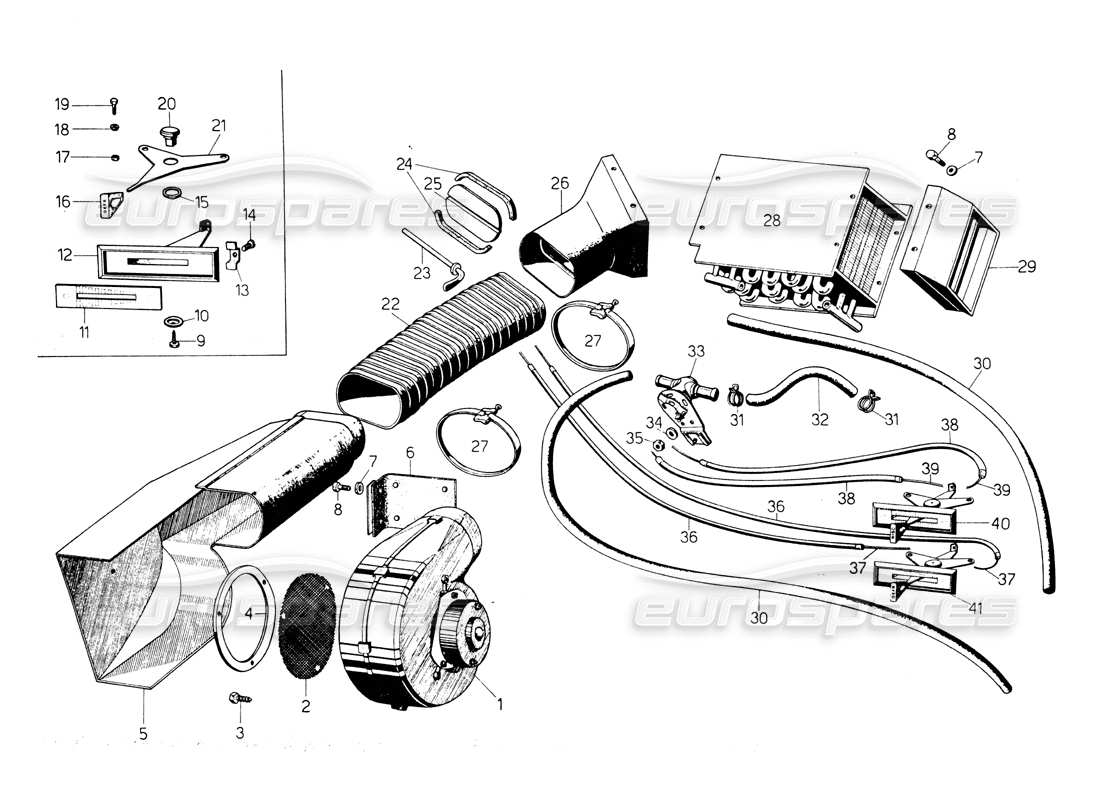

Lamborghini Countach LP400 Heater Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004713143
ELETTROVENTILATORE SINISTRO COMPLETO
from £320.04
from £320.04
# 002
MPN: 004513146
RETE PER CHIOCCIOLA
from £61.03
from £61.03
# 003
MPN: 008700414
SCREW
from £1.62
from £1.62
# 004
MPN: 004513145
RING
from £38.98
from £38.98
# 005
MPN: 007053007
CONVOGLIATORE ARIA
from £237.78
from £237.78
# 006
MPN: 004712773
FLAPS
from £87.00
from £87.00
# 007
MPN: 008410502
WASHER
Supersession
Supersession
# 008
MPN: N01020717
BOLT
from £0.47
from £0.47
This part replaces part number 008100504
# 009
MPN: 008700304
SCREW
from £0.53
from £0.53
# 010
MPN: 004713294
RONDE! LA
# 011
MPN: 004713289
MOSTRINA
# 012
MPN: 004713290
SUPPORT
# 013
MPN: 006107233
PIASTRINO
from £3.45
from £3.45
# 014
MPN: 008700503
SCREW
from £0.53
from £0.53
# 015
MPN: 004713293
SPESSORE
# 016
MPN: 004713273
POMELLO LEVA COMANDO DEFROSTER
# 016
MPN: 004713274
POMELLO LEVA COMANDO RISCALDATORE
# 017
MPN: 008200404
NUT
# 018
MPN: 0018800401
BUSH
# 019
MPN: 008700402
SCREW
from £6.43
from £6.43
# 020
MPN: 004713292
PIVOT
# 021
MPN: 004713291
LEVER
# 022
MPN: 004711446
PIPE / TUBE / HOSE
from £30.40
from £30.40
# 023
MPN: 004711443
PIVOT
from £44.11
from £44.11
# 024
MPN: 004711442
GASKET
from £23.88
from £23.88
# 025
MPN: 004711441
PORTELLA
from £39.60
from £39.60
# 026
MPN: 004709710
CONVOGLIATORE
# 027
MPN: 008830402
JUBILEE CLIP
from £2.04
from £2.04
# 028
MPN: 004708847
PACCO RADIANTE
from £1,642.83
from £1,642.83
# 029
MPN: 004711077
CONVOGLIATORE
# 030
MPN: 001711390
PIPE / TUBE / HOSE
from £64.68
from £64.68
# 031
MPN: 008830124
JUBILEE CLIP
from £0.67
from £0.67
# 032
MPN: 004711391
PIPE / TUBE / HOSE
from £11.51
from £11.51
# 033
MPN: 004710786
RUBINETTO
from £89.04
from £89.04
# 034
MPN: 008410503
WASHER
Supersession
Supersession
# 035
MPN: 008200501
NUT
Supersession
Supersession
# 036
MPN: 004711415
GUAINA
from £17.08
from £17.08
# 037
MPN: 004711416
FILO
from £6.36
from £6.36
# 038
MPN: 004711058
GUAINA
from £32.82
from £32.82
# 039
MPN: 004711059
FIFO
# 040
MPN: 004713283
INSIEME COMANDO RISCALDATORE
# 041
MPN: 004713265
INSIEME COMANDO DEFROSTER
from £350.18
from £350.18
